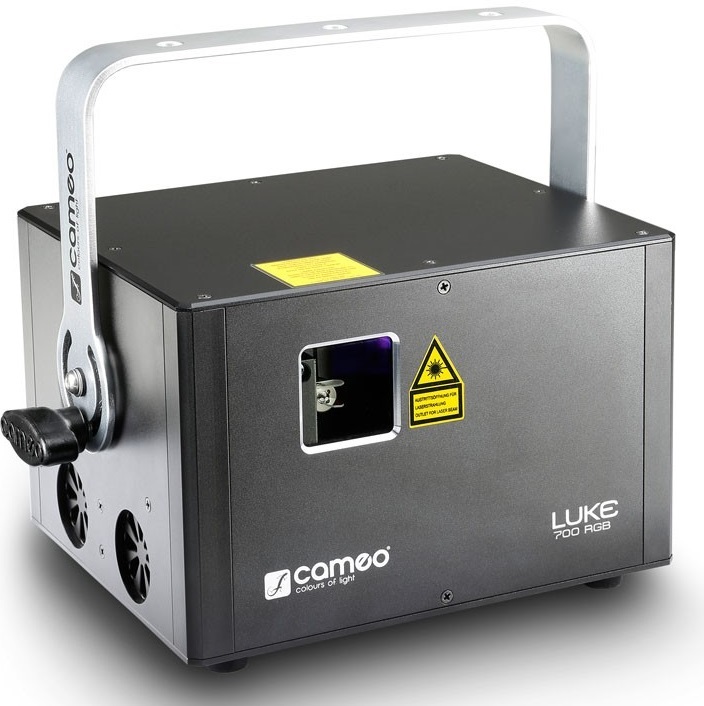

Cameo Luke 700 RGB - noir
- Leer reseñas (0)
- Accesorios relacionados
- Productos similares
VIDEO
VIDEO
- Envío gratis
- Precios bajos garantizados
- Satisfecho o rembolsado
- Garantía 3 años
- Ref : 77745
Stock Internet
expedición entre 8 y 10 días
Stock en tienda
No disponible en tienda
La marca Cameo
Conoce más sobre la marca Cameo y descubre todo el catálogo.
Póngase en contacto con un experto
Nuestros teleconsultores músicos y entusiastas están aquí para responder todas sus preguntas.
Descripción
The LUKE 700 RGB is equipped with diode lasers and DPSS with its red, green and blue colors, for a power of 700 mW.
The diameter of the radius is 3 mm, with a maximum divergence of only 2 mrad.
It consists of two separate parts for optimal performance:
It isolates the power supply / fan portion of the optical components. It is equipped with ultra-fast galvanometers with 30 Kpps at 8 ° ILDA, 128 presets and a Scan angle of 60 °, which ensures spectacular graphic projections, thanks to precise laser beams and crystal clarity.

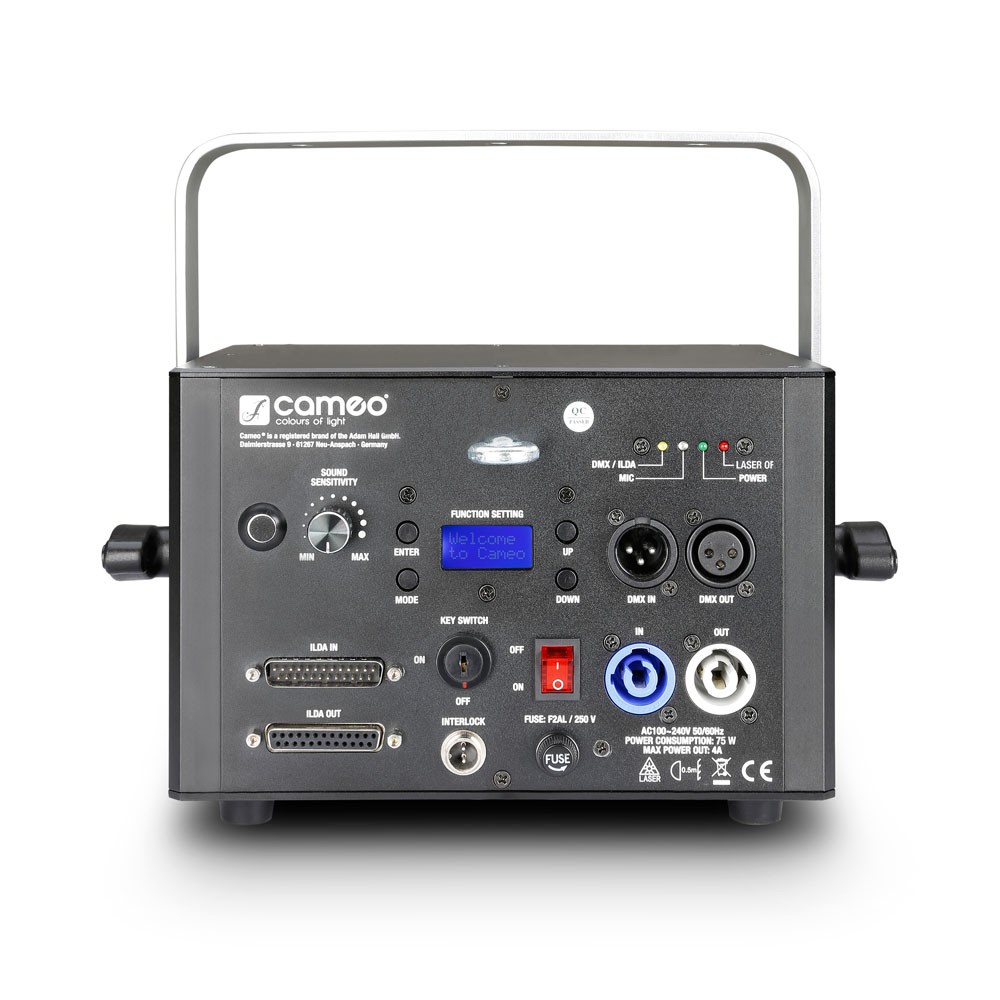

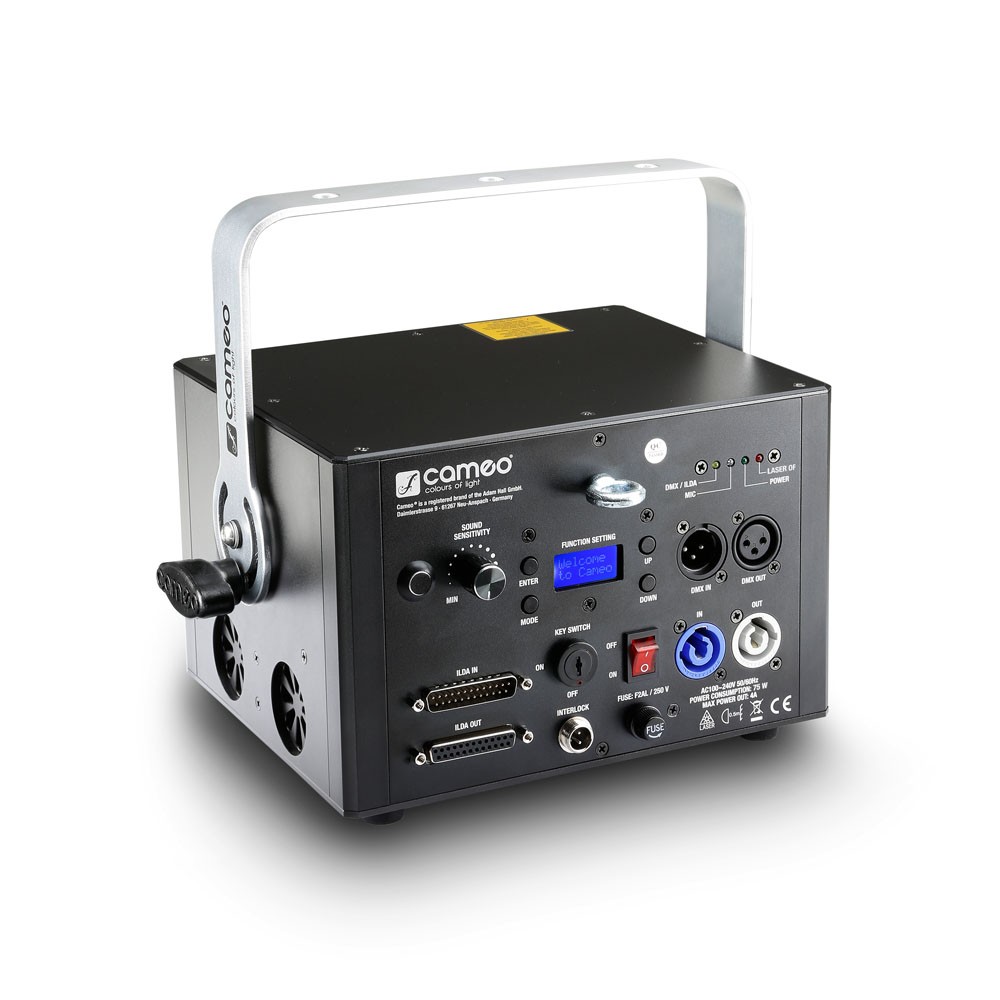

Luke lasers have an International Laser Display Association (ILDA) interface on a 25-pin D-sub port for computer control, an input / output on XLR 3-pin connectors for DMX control (4-channel and 11-channel modes), and the built-in microphone allows control by music (sensitivity adjustable). They can also be used in Master, Slave and Standalone modes. The aluminum box, combining strength and lightness, is equipped with a key switch, avoiding any unauthorized use; the display, completed with 4 user keys, is very bright, to facilitate manual use; the mains connection is made on the Neutrik powerCON connector. A quiet fan ensures a moderate operating temperature, and to protect the public, the Luke Series lasers have a security system in case of Scan system failure.
Important note: The Luke Series and Ioda Series lasers are equipped with identical presets, and are compatible with Master / Slave applications. With switchable Master and Slave status inversion for configuration, even more dramatic laser effects can be achieved.
The diameter of the radius is 3 mm, with a maximum divergence of only 2 mrad.
It consists of two separate parts for optimal performance:
It isolates the power supply / fan portion of the optical components. It is equipped with ultra-fast galvanometers with 30 Kpps at 8 ° ILDA, 128 presets and a Scan angle of 60 °, which ensures spectacular graphic projections, thanks to precise laser beams and crystal clarity.
Luke lasers have an International Laser Display Association (ILDA) interface on a 25-pin D-sub port for computer control, an input / output on XLR 3-pin connectors for DMX control (4-channel and 11-channel modes), and the built-in microphone allows control by music (sensitivity adjustable). They can also be used in Master, Slave and Standalone modes. The aluminum box, combining strength and lightness, is equipped with a key switch, avoiding any unauthorized use; the display, completed with 4 user keys, is very bright, to facilitate manual use; the mains connection is made on the Neutrik powerCON connector. A quiet fan ensures a moderate operating temperature, and to protect the public, the Luke Series lasers have a security system in case of Scan system failure.
Important note: The Luke Series and Ioda Series lasers are equipped with identical presets, and are compatible with Master / Slave applications. With switchable Master and Slave status inversion for configuration, even more dramatic laser effects can be achieved.
Lire la suite
Ficha técnica
- Color láser Multicolor
- Multipoint & gobo Si
- -Type of laser product
- Total power 700 mW
- -RGB color spectrum
- -Wavelength 447 nm, 532 nm, 650 nm
- -Features Radius diameter 3 mm / divergence 2 mrad
- Laser diode laser sources, DPSS
- -Laser class 4
- -Scanner galvanometer, high power, 30 kpps at 8 ° ILDA
- -Maximum Scan Angle 60 °
- -Isd User Modes, Auto Programs, DMX 512 Protocol, Sound Control
- -DMX input 3-pin male XLR connector
- -DMX output 3-pin female XLR connector
- -Input ILDA 25-pin Sub-D connector male
- -Index output 25-pin female D-sub connector
- DMX 11 channels, 4 channels
- -Entry Settings, Mode, Value Down, Value Up
- -Mains voltage 100 - 240 V, 50 - 60 Hz
- -Electric power consumption 75 W
- -Embase sector Neutrik powerCON
- -Aluminium case material
- -Color black box
- -Width 215 mm
- -Height (mm) 157 mm
- -Depth 225 mm
- -Weight 5.5 kg
