Base de interruptores / switchboard
The Cameo Sb6 Dual is a 6-channel DMX Splitter/Booster (XLR 3 points and XLR 5 points).
The Cameo CLSB6D is a professional solution for DMX network configuration.
It amplifies the DMX input signal and then sends it to 6 galvanically isolated outputs.

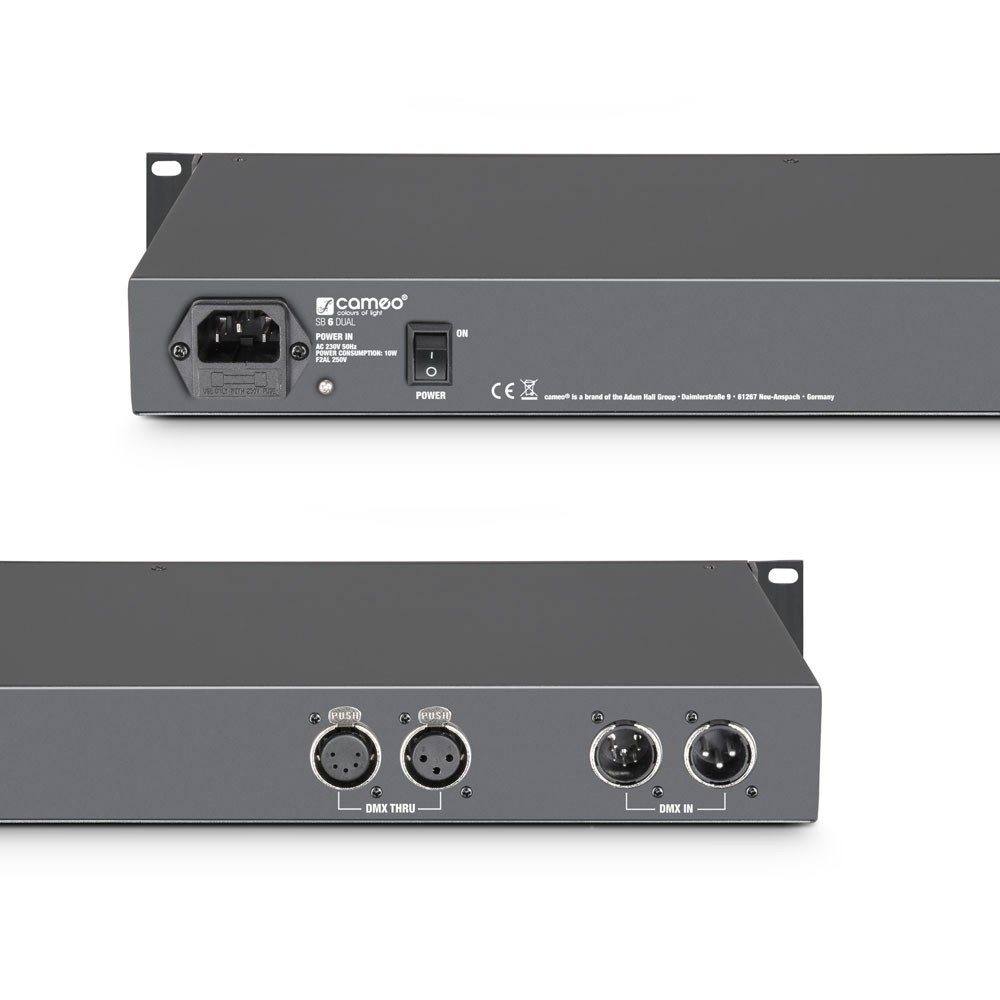

It connects to the DMX console or DMX controller. The input and THRU connectors, for signal feedback, are available on the front panel and on the rear panel of the CLSB6D

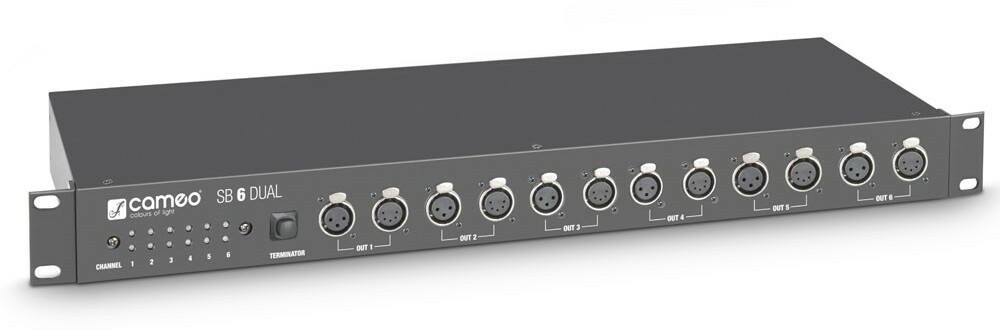

Bright LEDs on the front panel indicate the DMX and Power status of the channels.

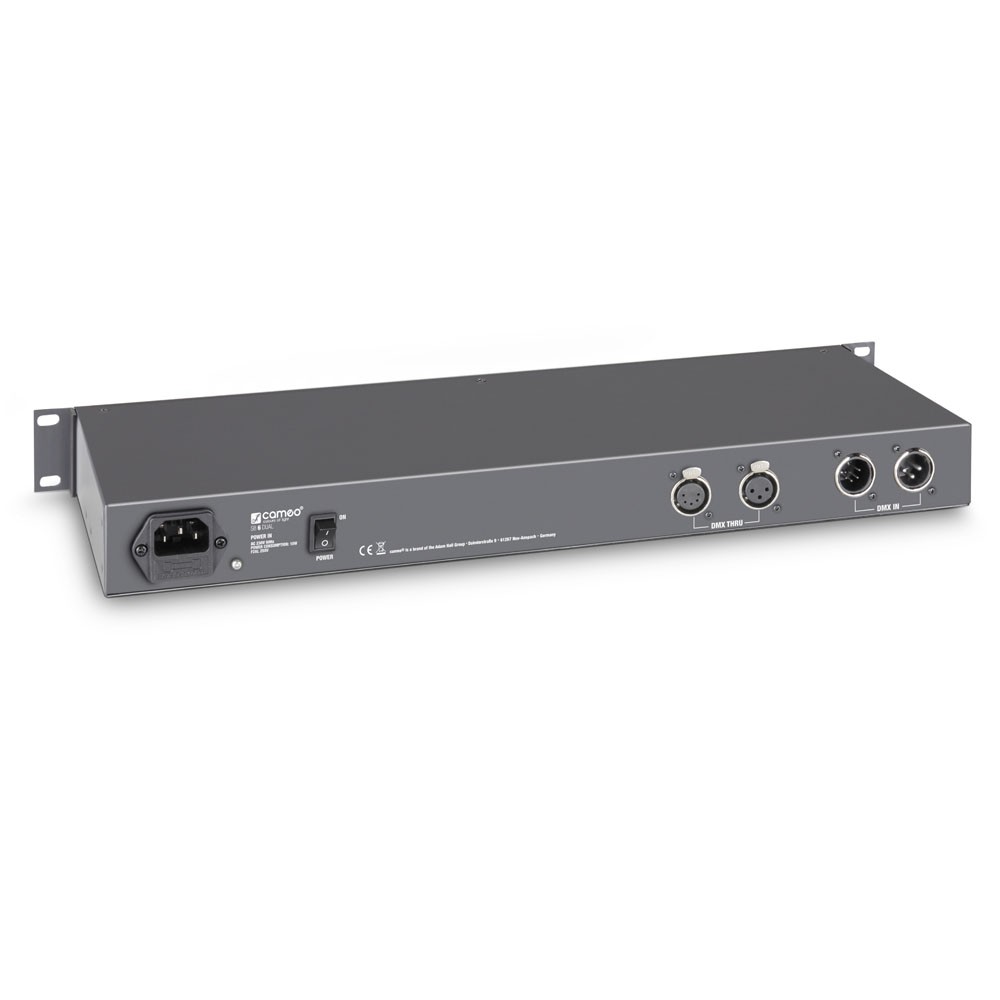

the outputs are grouped on the rear panel. A 120 ohms termination resistor can be switched on the DMX THRU output.
the device has its own mains switch and is delivered with its IEC cable. To mount the unit upside down and provide better access to the connectors, the rack ears can be attached to the rear of the chassis.
The Cameo CLSB6D is a professional solution for DMX network configuration.
It amplifies the DMX input signal and then sends it to 6 galvanically isolated outputs.
It connects to the DMX console or DMX controller. The input and THRU connectors, for signal feedback, are available on the front panel and on the rear panel of the CLSB6D
Bright LEDs on the front panel indicate the DMX and Power status of the channels.
the outputs are grouped on the rear panel. A 120 ohms termination resistor can be switched on the DMX THRU output.
the device has its own mains switch and is delivered with its IEC cable. To mount the unit upside down and provide better access to the connectors, the rack ears can be attached to the rear of the chassis.
Lire la suite
Ficha técnica
- Product type Lighting accessories - various
- Splitter/Booster DMX type
- DMX inputs 2 (in parallel)
- DMX input connectors 3-pin XLR male connector, 5-pin XLR male connector
- Number of DMX Thru 2 DMX Referrals (in parallel)
- DMX Thru Diverter Connectors 3-pin XLR female connector, 5-pin XLR female connector
- DMX outputs 6
- Power On/Off settings, DMX switch Thru Terminator
- Indicators 6 x Power LED, 6 x Signal LEDs
- IEC mains connector
- Mains voltage Transformer
- Mains voltage 230 V AC, 50 Hz
- Power consumption 15 W
- Width 483 mm
- Height (mm) 44 mm
- Depth 160 mm
- Weight 2,976 kg
- Accessories (included) Power cable
