Descripción

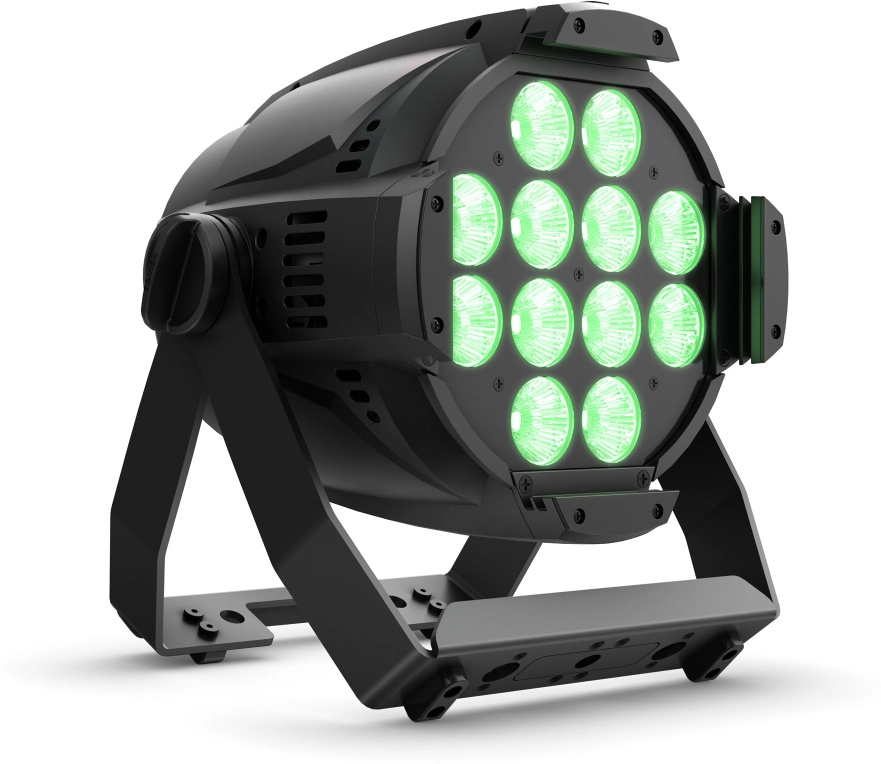

The Cameo Studio PAr 6 G2 is an LED PAR projector with 12 LEDs RGBAWUV 6 in 1.
12 x 12 W RGBAWUV 6-in-1 LEDs with a luminous flux of 4700 lm.
New design with numerous workflow optimisations.
Optional pulse width modulation (up to 25 kHz) for flicker-free lighting.
Virtually silent operation in "Silent Fan mode
Intuitive holding mechanism for colour filter frame
Wireless control via W-DMX™ using the optional iDMX Cameo key
Simple configuration via OLED display
PowerCON compatible power outlet
Optional 16mm folding TV pin (SPIN16®) can be retrofitted
12 x 12 W RGBAWUV 6-in-1 LEDs with a luminous flux of 4700 lm.
New design with numerous workflow optimisations.
Optional pulse width modulation (up to 25 kHz) for flicker-free lighting.
Virtually silent operation in "Silent Fan mode
Intuitive holding mechanism for colour filter frame
Wireless control via W-DMX™ using the optional iDMX Cameo key
Simple configuration via OLED display
PowerCON compatible power outlet
Optional 16mm folding TV pin (SPIN16®) can be retrofitted
Lire la suite
Ficha técnica
- LED PAR projectors
- Type :Studio PAR
- Colour spectrum :RGBWA + UV
- Number of LEDs :12
- LED type :6in1 RGBAWUV 12 W SMD LED
- Luminous flux :4700 lm
- Angle of dispersion
- Field angle: 35°, Beam angle: 21
- Lens 12 x acrylic lens
- LED frequencies (PWM)
- 650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 18900 Hz, 25000 Hz
- Dimmer resolution: 16 bit
- Dimming curves
- Square, Exponential, Linear, Logarithmic
- Strobe: 0 - 20 Hz
- CRI
- >74Ra
- DMX input: 3-pin, iDMX slot
- DMX output :3-pin
- DMX modes :1 channel, 10 channel, 12 channel, 14 channel, 18 channel, 3 channel, 4 channel, 6 channel, 9 channel
- DMX functions
- colour macro, Dimmer, Dimmer Curve, EZ-Chase, System settings, RGBWA, Strobe, UV
- Stand-alone modes
- Auto mode, Static mode
- System Settings
- Calibration, Dimmer, LED PWM Frequency, Fan Mode, Default Settings, Displays, Dimmer Response, Signal Fail, Wireless
- Settings
- 4 x Buttons, Down, Enter, Up, Menu
- Indicators
- OLED display
- Relative humidity
- < 80 %, no condensation
- IP Class
- IP20
- Ambient temperature
- -10 - 40 °C
- Cooling
- Convection, silent fan
- Mains voltage
- 100 - 240 V, 50 - 60 Hz
- Mains connector
- PowerCon Blue I/O
- Fuse
- T2A
- Max. Power consumption
- 125 W
- Housing
- Die-cast aluminium
- Enclosure surface
- Powder coated
- Enclosure colour
- black
- Height (mm)
- 360 mm
- Width
- 310 mm
- Depth
- 250 mm
- Weight
- 5,1 kg
