Modulos de sistema 500

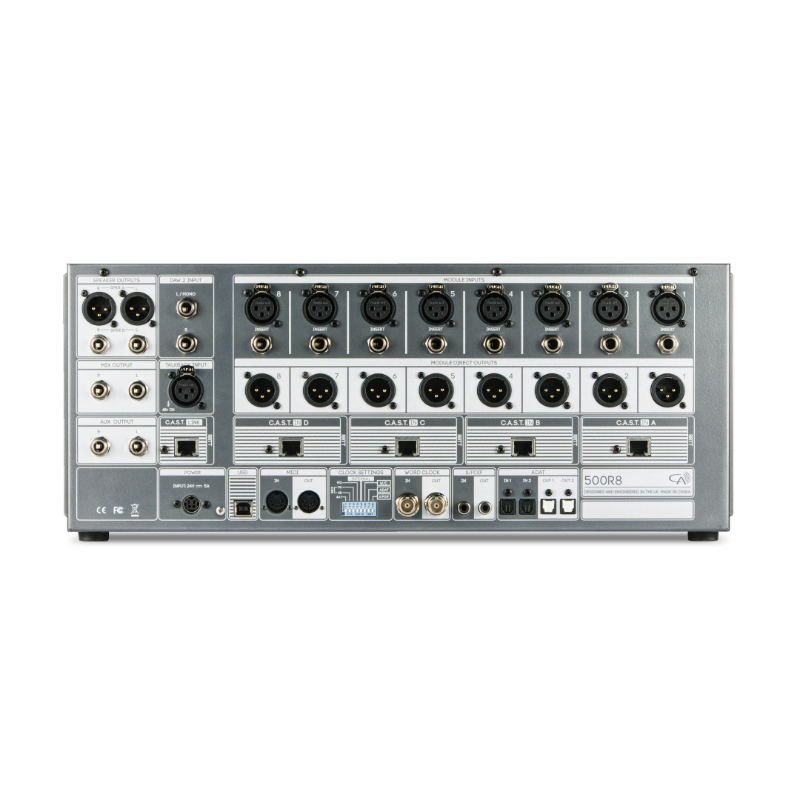

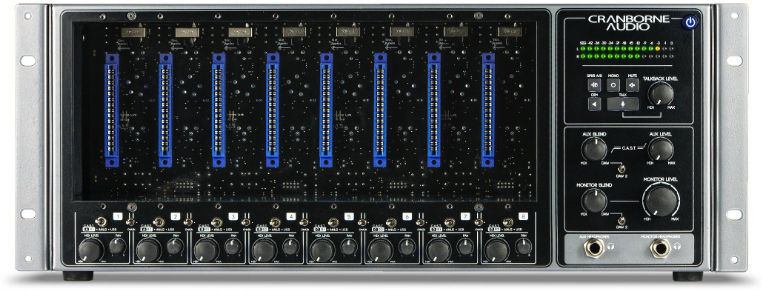

The Cranborne Audio 500R8 is a professional all-in-one solution that combines an 8-slot 500 Series rack with a high-performance USB audio interface (28 inputs / 30 outputs), a comprehensive monitoring controller, and a discretely summing analog mixer. Designed for modern studios, it centralizes your 500 Series equipment, provides precise monitoring with integrated talkback, and enables a smooth, latency-free analog-to-digital workflow.
Designed and manufactured in the UK, the 500R8 boasts premium components, high-precision converters, and exceptional flexibility thanks to its ADAT, S/PDIF, Word Clock, and CAST compatibility. It's the ultimate tool for producers, sound engineers, and musicians looking for a powerful and modular audio hub.
Designed and manufactured in the UK, the 500R8 boasts premium components, high-precision converters, and exceptional flexibility thanks to its ADAT, S/PDIF, Word Clock, and CAST compatibility. It's the ultimate tool for producers, sound engineers, and musicians looking for a powerful and modular audio hub.
Lire la suite
Ficha técnica
- Low-latency USB 2.0 Audio Interface, macOS/PC compatible
- 28 Inputs / 30 Outputs
- High-end A/D and D/A Conversion:
- Dynamic Range: 121 dB (A-weighted, AES17)
- Frequency Response: -1 dB, 2.2 Hz to >80 kHz
- THD+N: <0.00032% @ -4 dBFS
- Maximum I/O Level: +24 dBu
- Digital Connectivity
- ADAT: 16x16 @ 44.1/48 kHz | 8x8 @ 88.2/96 kHz
- S/PDIF: Stereo I/O
- MIDI: 5-pin port
- Word Clock: BNC I/O, supports 44.1 to 192 kHz, jitter < 0.5 ps
- Monitoring Control
- A/B Speaker Selection
- Mono, Dim, Mute Functions
- 28-segment VU Meter
- Talkback Input with Phantom Power + Push-to-Talk
- Automatic Routing to Headphone and CAST Outputs
- Backlit Front Panel Controls
- Analog Mixer
- 8-into-2 Analog Summing with +26.5 dBu Headroom
- Dedicated D/A Converter
- Balanced 1/4" Jack Outputs
- Expandable to 16-into-2 with 500ADAT via CAST Link
- Physical level and pan control per channel
- Zero-latency DAW mixing
- Headphone outputs
- 2 independent high-power outputs:
- THD+N: <0.0006%
- Frequency response: <1 Hz to >70 kHz
- Power: up to 1.21 W @ 100 Ω, 500 mW @ 32 Ω
- 500 Series rack
- 8 slots with 250 mA/slot power supply (2 A total)
- XLR I/O, TRS inserts
- Routing via analog, USB, or CAST signal
- Bypass function for use without modules inserted
- CAST compatible Ports allow analog I/O to be relocated within the studio via shielded Cat 5 cable.
- Power Supply
- External 24V, 5A with locking connector
- Thermal and audio optimization
- Design
- Made in the UK
- Each unit is individually tested for maximum quality
