Patch
The PCF Deluxe flat patch cables were designed by EBS to facilitate the connection of pedals within a pedalboard. Highly practical, they are now part of the equipment of many artists around the world.
While reducing the space taken up on a pedalboard, their flat design helps reduce tedious cable clutter and keeps the pedalboard perfectly organized. The Deluxe version offers a reinforced jacket and a more robust core, improving the cable's performance and longevity.
**The essential cable for interconnecting your pedals.**
If you're the proud owner of a pedalboard and a large number of effects pedals, you've probably already faced this thorny problem: connecting your favorite pedals over very short distances. This is because space on a pedalboard is precious, and most cables on the market are unsuitable for interconnecting pedals due to the excessive rigidity of the cable and the size of the connectors.
**Compact, flexible, and high-quality.**

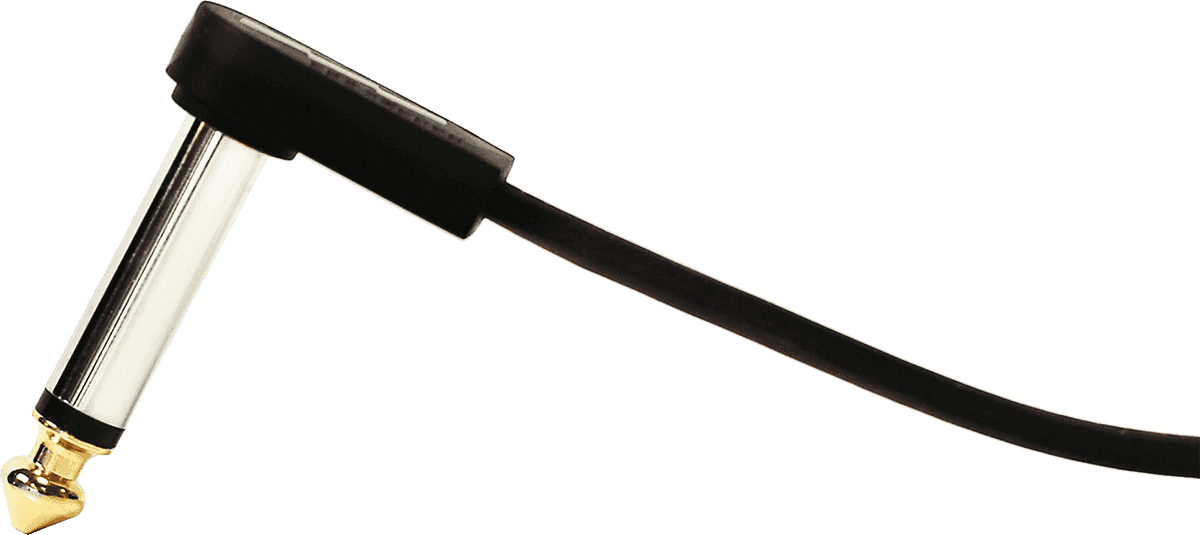

To put an end to this constant source of frustration, EBS has developed a new series of cables specifically designed for this purpose: the PCF Deluxe. Available in a wide selection of lengths, from 10 to 58 cm, the PCF Deluxe cables feature highly flexible, double-shielded, low-resistance flat cables, perfect for minimizing loss of fragile guitar or bass signals, thus maintaining a powerful incoming signal. Add to this a very compact, angled connector with a flat back, and we have the perfect cables for our pedalboard.
**Optimization at its finest.**

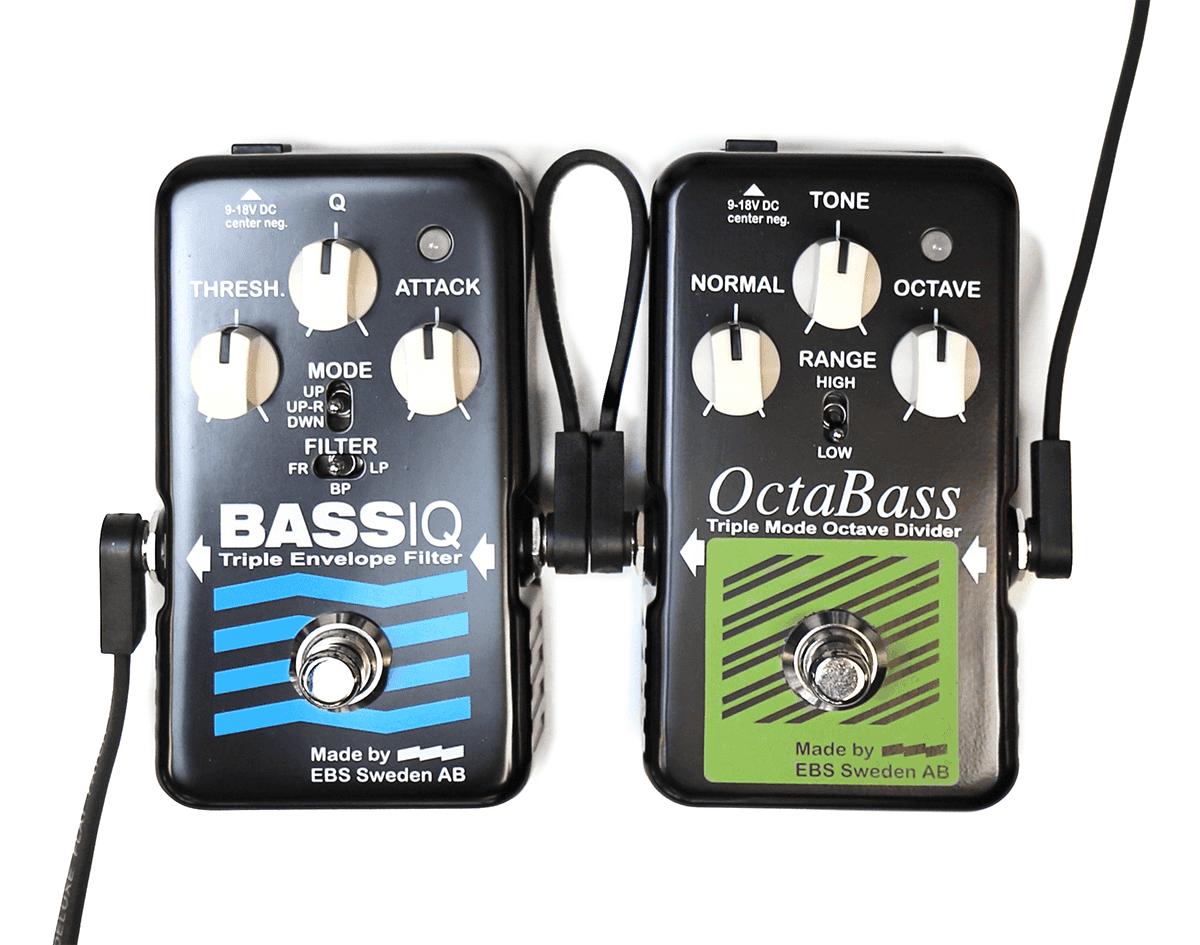

EBS PCF Deluxe cables are therefore ideal for maximizing space on your pedalboard and designing a clean setup. The flat profile of the cables has the advantage of not tangling and automatically adopting their characteristic Ω shape, which is very space-saving. The 10 and 18 cm cables are designed for interconnecting two pedals and limit signal loss, while the longer lengths allow you to discreetly connect different parts of your pedalboard while still providing optimal transmission quality.
Compact, highly flexible, and designed to offer exceptional transmission quality, the PCF Deluxe cables are simply the essential cables for effortlessly creating a clean and efficient pedalboard while maintaining impeccable signal quality.
While reducing the space taken up on a pedalboard, their flat design helps reduce tedious cable clutter and keeps the pedalboard perfectly organized. The Deluxe version offers a reinforced jacket and a more robust core, improving the cable's performance and longevity.
**The essential cable for interconnecting your pedals.**
If you're the proud owner of a pedalboard and a large number of effects pedals, you've probably already faced this thorny problem: connecting your favorite pedals over very short distances. This is because space on a pedalboard is precious, and most cables on the market are unsuitable for interconnecting pedals due to the excessive rigidity of the cable and the size of the connectors.
**Compact, flexible, and high-quality.**
To put an end to this constant source of frustration, EBS has developed a new series of cables specifically designed for this purpose: the PCF Deluxe. Available in a wide selection of lengths, from 10 to 58 cm, the PCF Deluxe cables feature highly flexible, double-shielded, low-resistance flat cables, perfect for minimizing loss of fragile guitar or bass signals, thus maintaining a powerful incoming signal. Add to this a very compact, angled connector with a flat back, and we have the perfect cables for our pedalboard.
**Optimization at its finest.**
EBS PCF Deluxe cables are therefore ideal for maximizing space on your pedalboard and designing a clean setup. The flat profile of the cables has the advantage of not tangling and automatically adopting their characteristic Ω shape, which is very space-saving. The 10 and 18 cm cables are designed for interconnecting two pedals and limit signal loss, while the longer lengths allow you to discreetly connect different parts of your pedalboard while still providing optimal transmission quality.
Compact, highly flexible, and designed to offer exceptional transmission quality, the PCF Deluxe cables are simply the essential cables for effortlessly creating a clean and efficient pedalboard while maintaining impeccable signal quality.
Lire la suite
Ficha técnica
- Categoría
- cable de conexión
- Conectores
- Jack mono macho
- Conectores moldeados
- Sí
- Color
- Negro
- Cobre sin oxígeno
- Sí
- Formato
- acodado
- Longitud (m)
- 0,78 m
- Marca del conector
- EBS
- Material de la funda
- PVC
- Número de pares
- 1
- Tipo de blindaje
- espiral de cobre y plástico conductor
- Especificaciones adicionales
- Conductor: 20 x 0,12 mm flexible, optimizado para señales de audio de baja tensión
- Resistencia del conductor: < 10 mΩ por decímetro
- Capacitancia: < 10 pF por centímetro
- Blindaje: 38 x 0,12 mm, cobre trenzado
- Dimensiones del cable: 6 mm de ancho, 3 mm de alto
- Dimensiones del conector: 30 mm de alto x 13 mm de ancho x 6 mm de grosor
