Jbl Control 50 Pack C50Pack
- Leer reseñas (0)
- Accesorios relacionados
- Envío gratis
- Precios bajos garantizados
- Satisfecho o rembolsado
- Garantía 3 años
- Ref : 49662
Stock Internet
expedición entre 2 y 3 días
Stock en tienda
No disponible en tienda
La marca Jbl
Conoce más sobre la marca Jbl y descubre todo el catálogo.
Póngase en contacto con un experto
Nuestros teleconsultores músicos y entusiastas están aquí para responder todas sus preguntas.
Instalación altavoz

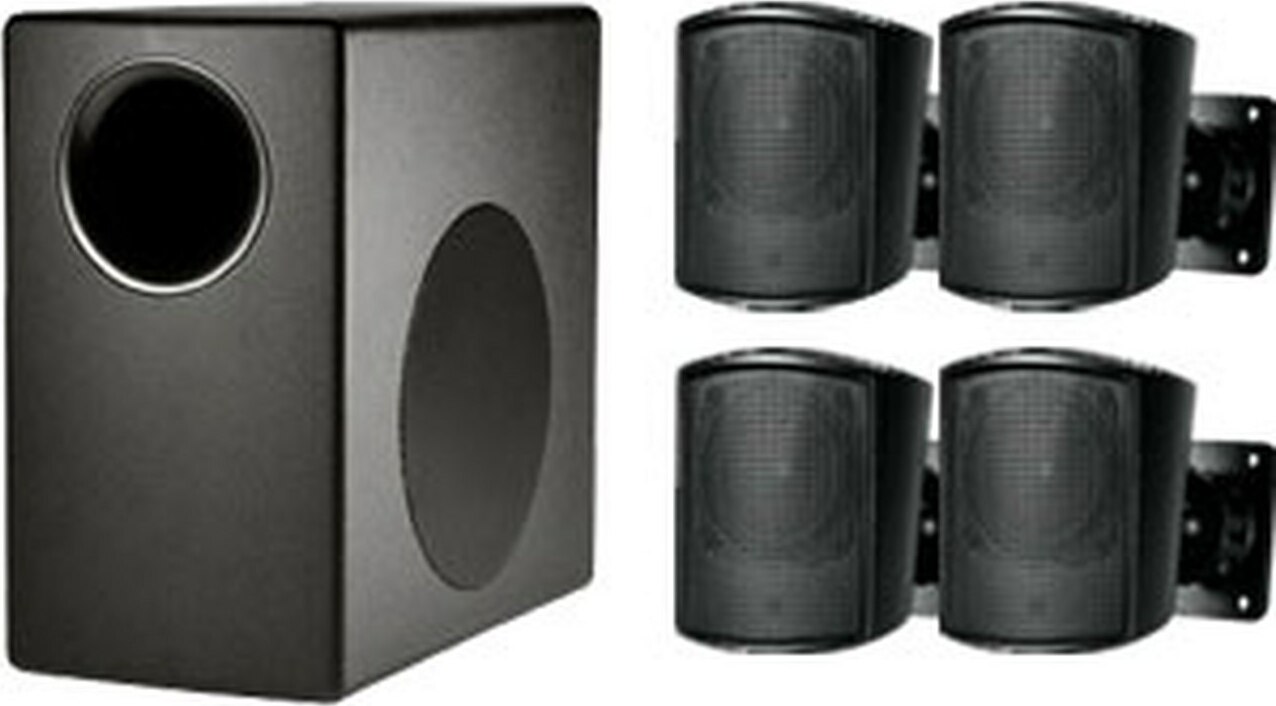

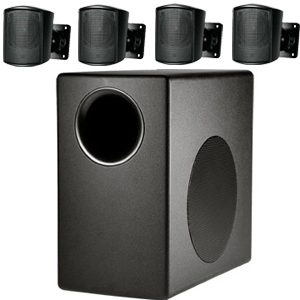

The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminum former for good transient response, and a rubber half roll surround for enhanced bass performance.
The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low-distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.
The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low-distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.
Lire la suite
Ficha técnica
- Interior / Exterior Utilización en interior posible
- Tipo de instalación Instalación en pared
- Control 50S/T
- Stylish, unobtrusive design fits into a wide variety of decors
- High fidelity sound
- Selectable 70V/100V for distributed lines, or low impedance
- Versatility for either two or four satellite speakers per system
- Ability to mix and match with Control Contractor 40 Series in-ceiling models
- Wall-mount brackets included
- Black finish
- Specifications
- Frequency Range (-10 dB) : 32 Hz - 200 Hz
- Frequency Response (±3 dB) : 50 Hz - 150 Hz
- Power Capacity:
- 300 Watts Continuous
- Program Power (2 hrs)
- 150 Watts Continuous
- Pink Noise (2 hrs)
- 200 Watts Continuous
- Program Power (100 hrs)
- 100 Watts Continuous
- Pink Noise (100 hrs)
- Nominal Sensitivity (2.83V, 1m) : 95 dB (near corner), 89 dB (center of wall)
- Rated Maximum SPL (1m) :
- 115 dB average, 121 dB peak (near corner)
- 109 dB average, 115 dB peak (center of wall)
- Nominal Impedance : 8 ohms (in bypass/thru mode)
- Transformer Taps : 80W, 40W, 20W, (& 10W @ 70V), 8 ohm bypass/thru
- Transducer Driver : 200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former
- Input Connectors : Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm2)
- Material : Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal.
- Dimensions (H x W x D) :
- Cabinet: 356 x 391 x 203 mm (14.0 x 15.4 x 8.0 in)
- Wall Bracket: 15 mm (0.6 in) deep
- Wall Bracket : 2.3 mm (0.9 in) thick zinc-plated and painted cold-rolled steel
- Net Weight : 9.0 kg (20 lbs)
- Shipping Weight : 10.2 kg (23 lbs)
- Included Accessories : Wall bracket (both speaker and wall parts) with 4 pcs M6 screws to attach to speaker, terminal cover, 6 pcs 2-pin locking connectors, M6 screw for safety lanyard attachment.
- Control 52
- Stylish, unobtrusive design fits into a wide variety of decors
- High fidelity sound
- Selectable 70V/100V for distributed lines, or low impedance
- Versatility for either two or four satellite speakers per system
- Ability to mix and match with Control Contractor 40 Series in-ceiling models
- Wall-mount brackets included
- Black finish
- Specifications
- Frequency Range (-10 dB) : 140 Hz - 20 kHz
- Frequency Response (±3 dB) : 180 Hz - 17 kHz
- Power Capacity:
- 50 Watts Continuous Program Power (2 hrs)
- 25 Watts Continuous Pink Noise (2 hrs)
- 30 Watts Continuous Program Power (100 hrs)
- 15 Watts Continuous Pink Noise (100 hrs)
- Nominal Sensitivity:
- 85 dB (4.0V/1m = 1W)
- 82 dB (2.83V, 1m)
- Nominal Coverage Angle : 150° x 150° (omnidirectional)
- Rated Maximum SPL (1m) : 94 dB average, 100 dB peak
- Nominal Impedance : 16 ohms
- Transducer Driver : 60 mm (2.5 in) with polypropylene cone, butyl rubber surround, 19 mm (0.75 in) copper-clad coil, vented Nomex® former, secondary bucking magnet, and copper sleeved pole piece for high frequency extension.
- Input Connector : Removable locking 2-pin connector with screw-down terminals. Max wire 12 AWG (2.5 mm2)
- Material : High impact polystyrene, painted zinc-plated metal grille.
- Dimensions (H x W x D) :
- Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in)
- Wall bracket: 51 mm (2.0 in)
- Net Weight : 0.7 kg (1.5 lbs)
- Shipping Weight : 0.8 kg (1.8 lbs)
- Included Accessories : Wall bracket (both speaker and wall parts), 2-pin locking connector.
