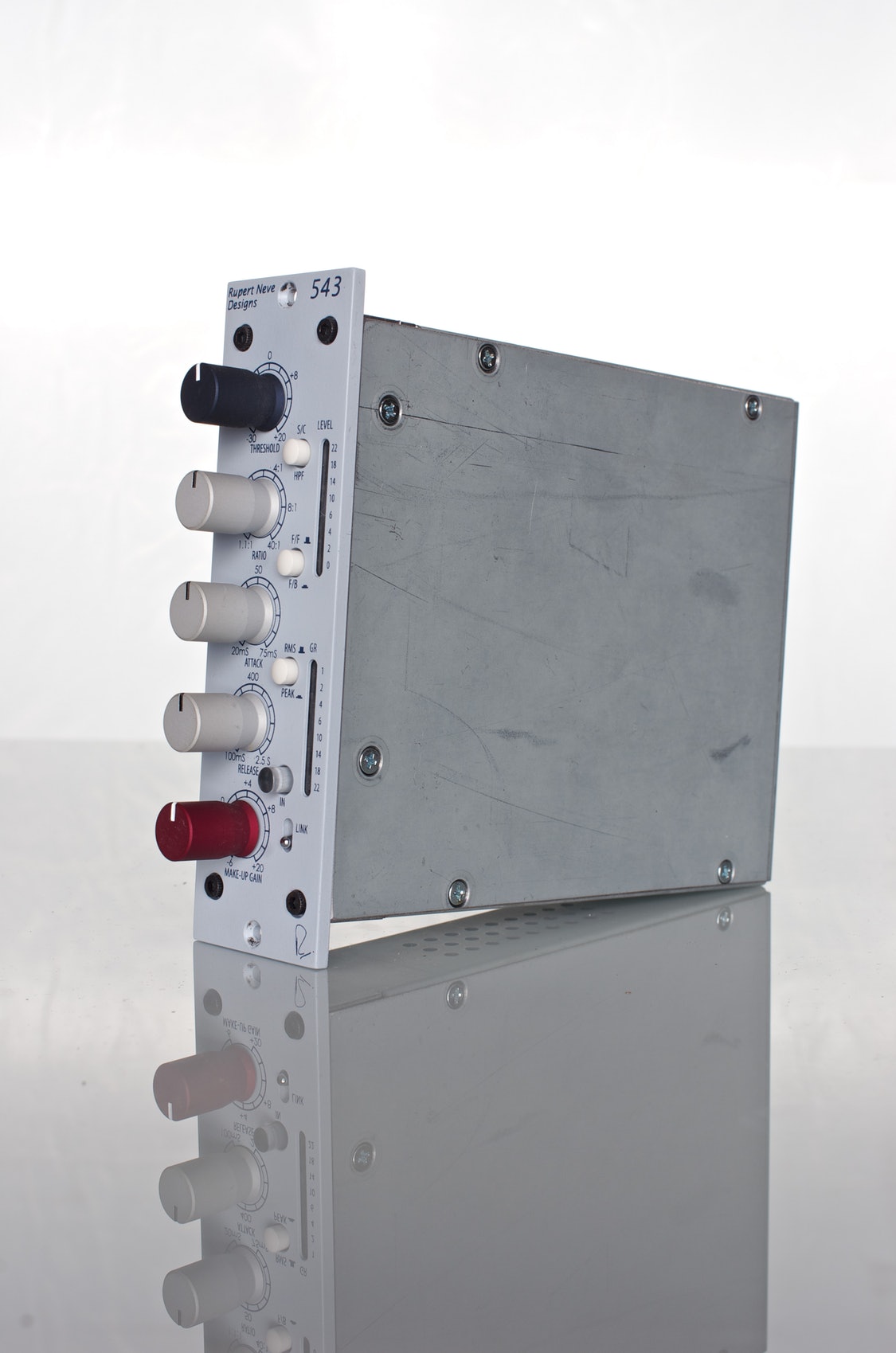

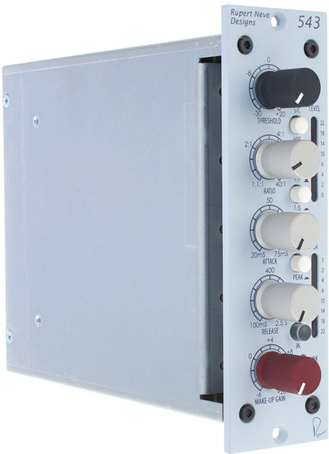

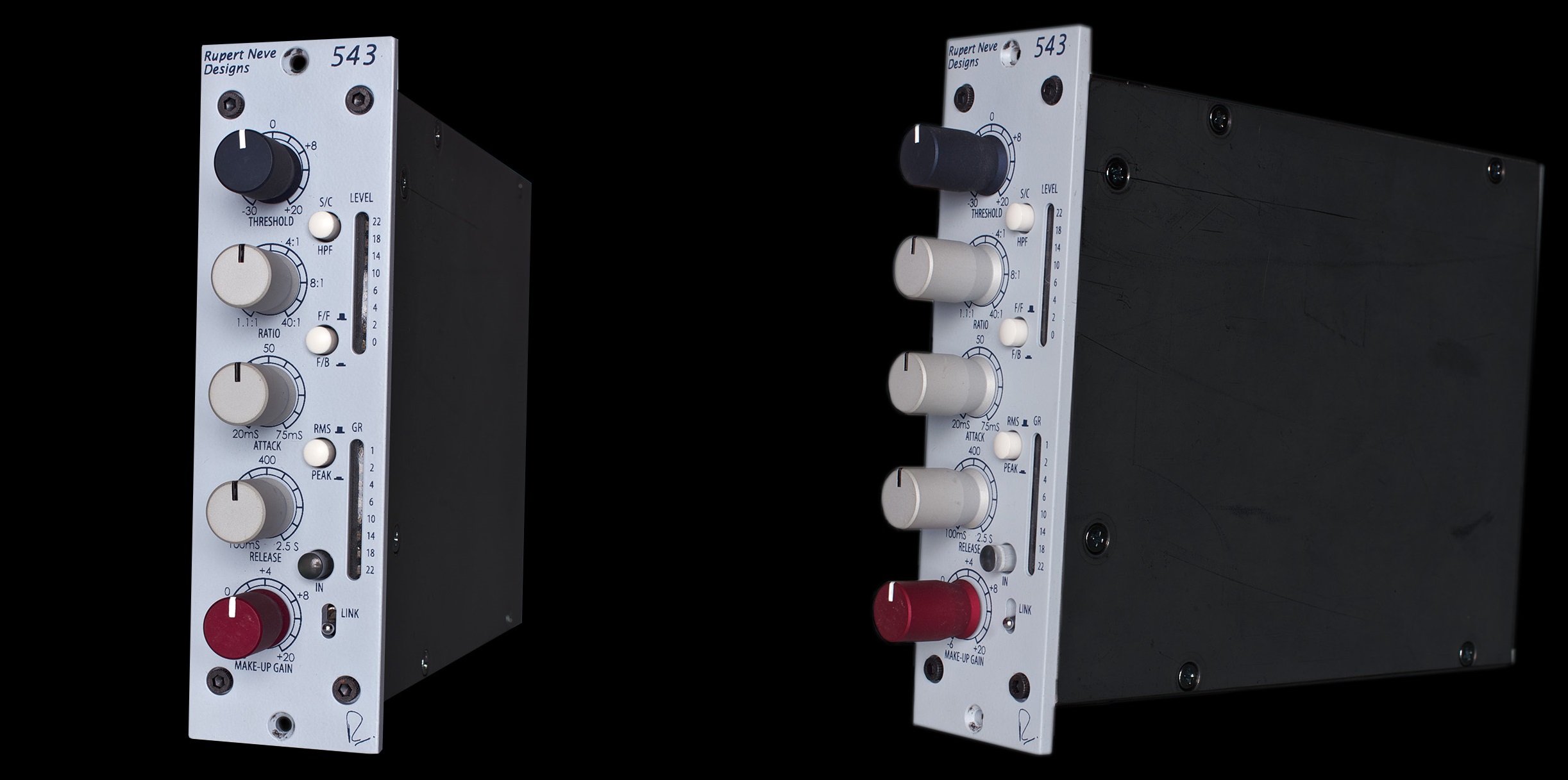

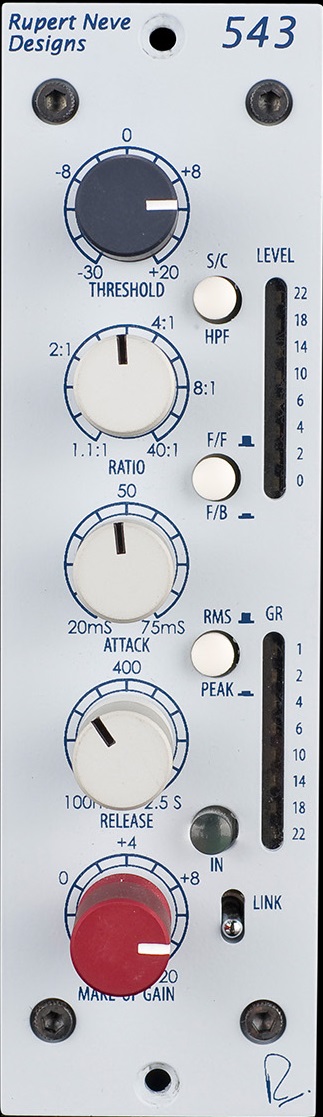

Rupert neve design 543 Mono Compressor / Limiter - 500 series
- Leer reseñas (0)
- Accesorios relacionados
- Productos similares
- Envío gratis
- Precios bajos garantizados
- Satisfecho o rembolsado
- Garantía 3 años
- Ref : 77414
No disponible en este momento
preguntarnos
Stock en tienda
No disponible en tienda
INFORMARME DE SU ENTRADA EN STOCK
Quiero ser notificado por correo electrónico.
Go
Otra(s) versione(s) o producto(s) asociado(s)
La marca Rupert neve design
Conoce más sobre la marca Rupert neve design y descubre todo el catálogo.
La mayor red de tiendas de Francia
Encuentra toda la información sobre nuestras grandes superficies y nuestras boutiques especializadas.
Póngase en contacto con un experto
Nuestros teleconsultores músicos y entusiastas están aquí para responder todas sus preguntas.
Modulos de sistema 500
The 543 Mono Compressor delivers the unobtrusive, musical-sounding dynamic control and brick-wall limiting made famous in the Portico 5043 to the 500 series format. The 543 features a fully controllable compressor-limiter with feed-forward / feedback modes, Peak / RMS detection and a built in side chain high pass filter. With an unrivaled heritage and a tremendous feature set, the 543 yields a combination of rich warmth, flexibility and precision that is sure to resonate in the ears of sound engineers the world over.
Lire la suite
Ficha técnica
- Gain Range: Continuously variable from 6 dB to +20 dB.
- Threshold Range: Continuously variable from 36 dB to +22 dB.
- Ratio Range: Continuously variable from 1.1:1 to Limit (40:1).
- Attack Range: Continuously variable from 20mS to 75mS
- Release Range: Continuously variable from 100mS to 2.5 Seconds.
- FF/FB: Feed-Forward or Feed-Back VCA control.
- Maximum Output Level: Balanced and Floating Transformer Output
- Maximum output from 20 Hz to 40 kHz is +23 dBu.
- Total Harmonic Distortion and Noise: @ 1kHz, +20 dBu output level, no load.
- Main Output, compressor bypassed Better than 0.0006%.
- Main Output, compressor engaged Better than 0.02%
- Noise: Measured at Main Output, un-weighted, 22Hz-22kHz, Terminated 40 Ohms.
- With Gain at Unity, Compressor disengaged Better than 103 dBu.
- With Gain at Unity, Compressor engaged: Better than 92 dBu
- Frequency Response:
- Main Output, Unity Gain
- @ 18 Hz, +/- .1dB
- @ 150 kHz -3 dB.
- Crosstalk
- Measured Channel to Channel: Better than 90 dB @ 15kHz.
- METERS:
- Monitor INPUT LEVEL and GAIN REDUCTION
