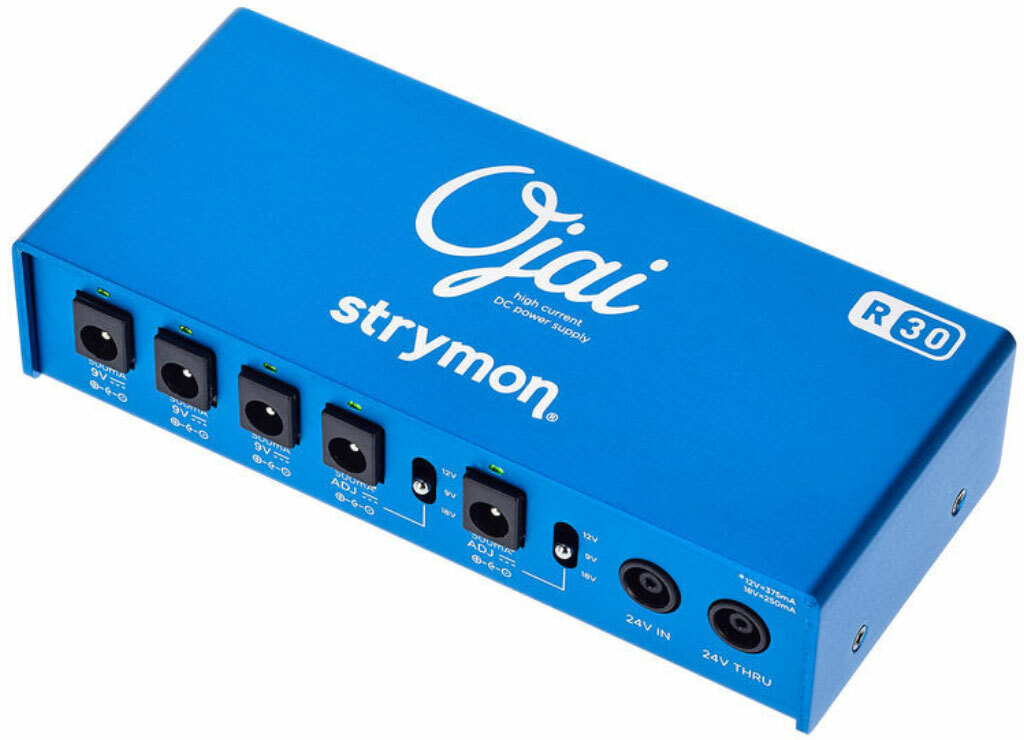

Strymon Ojai R30 Expansion Kit
- Leer reseñas (0)
- Productos similares
- Envío gratis
- Precios bajos garantizados
- Satisfecho o rembolsado
- Garantía 3 años
- Ref : 79260
No disponible en este momento
preguntarnos
Stock en tienda
No disponible en tienda
INFORMARME DE SU ENTRADA EN STOCK
Quiero ser notificado por correo electrónico.
Go
La marca Strymon
Conoce más sobre la marca Strymon y descubre todo el catálogo.
La mayor red de tiendas de Francia
Encuentra toda la información sobre nuestras grandes superficies y nuestras boutiques especializadas.
Póngase en contacto con un experto
Nuestros teleconsultores músicos y entusiastas están aquí para responder todas sus preguntas.
Descripción
Power your pedals with STRYMON Ojai R30 Expansion Kit (similar to Ojai R30 but without power adaptor), the highest horsepower, most technologically advanced effects pedal power supply of its size : you get clean, rock-steady power for your 9V, 12V and 18V effects pedals in a low profile, expandable package, giving you room to grow.
Ojai R30’s dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering allow your pedals to achieve their highest possible dynamic range.
Ojai R30’s all analog circuitry offers two stages of isolation, completely eliminating ground loop and AC line noise issues, allowing your pedals to sound like they were designed to sound.
With automatic international power compatibility built-in, Ojai R30 delivers clean, reliable power to all your pedals, on any stage anywhere you play in the world.
Have a growing rig? Ojai R30 is part of an expandable system. Gain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai R30 to add five more outputs to our Zuma power supply (sold separately).
Ojai R30’s dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering allow your pedals to achieve their highest possible dynamic range.
Ojai R30’s all analog circuitry offers two stages of isolation, completely eliminating ground loop and AC line noise issues, allowing your pedals to sound like they were designed to sound.
With automatic international power compatibility built-in, Ojai R30 delivers clean, reliable power to all your pedals, on any stage anywhere you play in the world.
Have a growing rig? Ojai R30 is part of an expandable system. Gain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai R30 to add five more outputs to our Zuma power supply (sold separately).
Lire la suite
Ficha técnica
- STRYMON Ojai R30 Expansion Kit
- SKU OJAIR30EXT
- Multi-outputs power supply for pedalboards
- Made in USA
- 2017
- 5 individual custom transformers (one per channel) deliver clean, consistent power
- Worldwide power compatibility ensures no-hassle international touring
- 5 high-current, fully isolated 9V outputs with center-negative polarity
- 3 dedicated 9V outputs (500mA)
- 2 adjustable outputs offer 9V (500mA), 12V (375mA), or 18V (250mA) DC options
- 500mA per output powers nearly any pedal

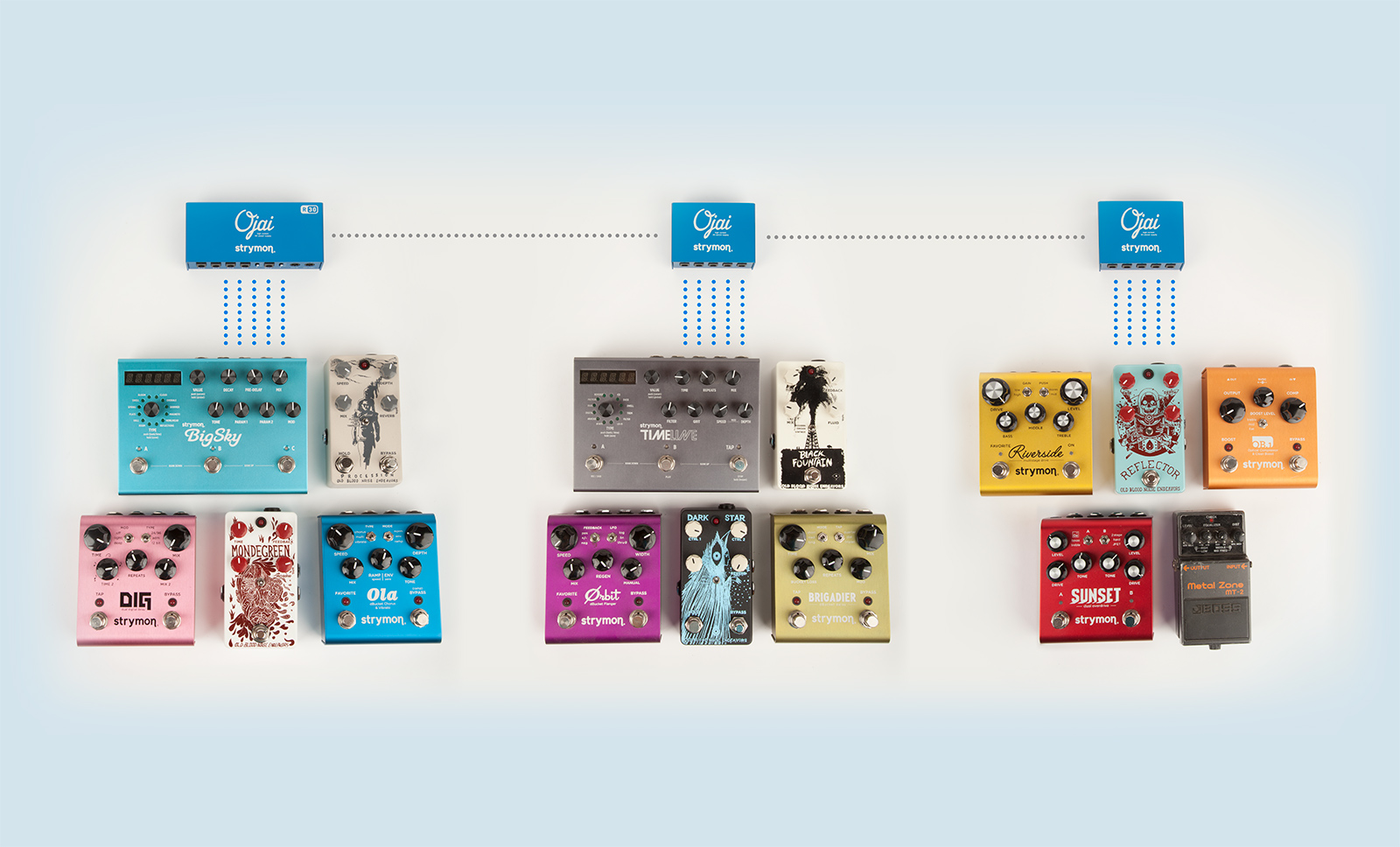

- You can link together 7 Ojai units powered from one 24V power adapter, powering up to 35 effects pedals (depending on the total current requirement for the pedals)
- Built in threaded hardware for easy mounting to the top or bottom of most pedalboards
- Can be mounted to the top or bottom of most pedalboards using VELCRO® or Dual Lock
- Lightweight and rugged anodized midnight blue aluminum chassis
- Ultra low profile design fits under nearly any pedalboard
- 5.1 x 2.3 x 1.15 inches - 130 x 58 x 29 mm
- 6 oz. (171g)
- 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to right angle, 18" length)
- Power adaptatorr and 24V Thru Jack sold separately
