Tascam Sonic View 16

Leer reseñas (0)
Accesorios relacionados
Productos similares

VIDEO

VIDEO

6449.00 €

5378,00 €

Envío gratis
Precios bajos garantizados
Satisfecho o rembolsado
Garantía 3 años
Ref : 107429

Stock Internet

expedición entre 2 y 3 días

Stock en tienda

No disponible en tienda

La marca Tascam

Conoce más sobre la marca Tascam y descubre todo el catálogo.

Descubrir

La mayor red de tiendas de Francia

Encuentra toda la información sobre nuestras grandes superficies y nuestras boutiques especializadas.

Saber más

Póngase en contacto con un experto

Nuestros teleconsultores músicos y entusiastas están aquí para responder todas sus preguntas.

+33 181 930 900 email

Mesa de mezcla digital

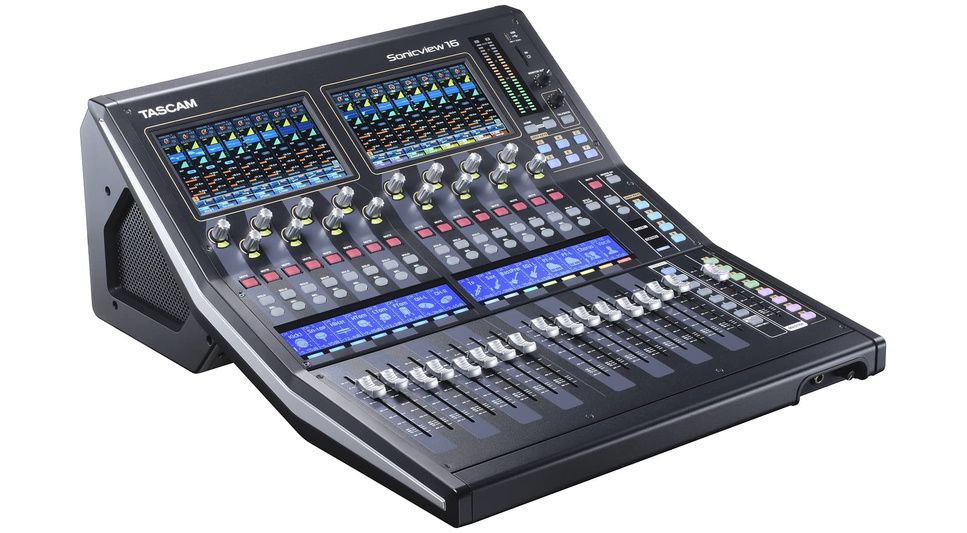

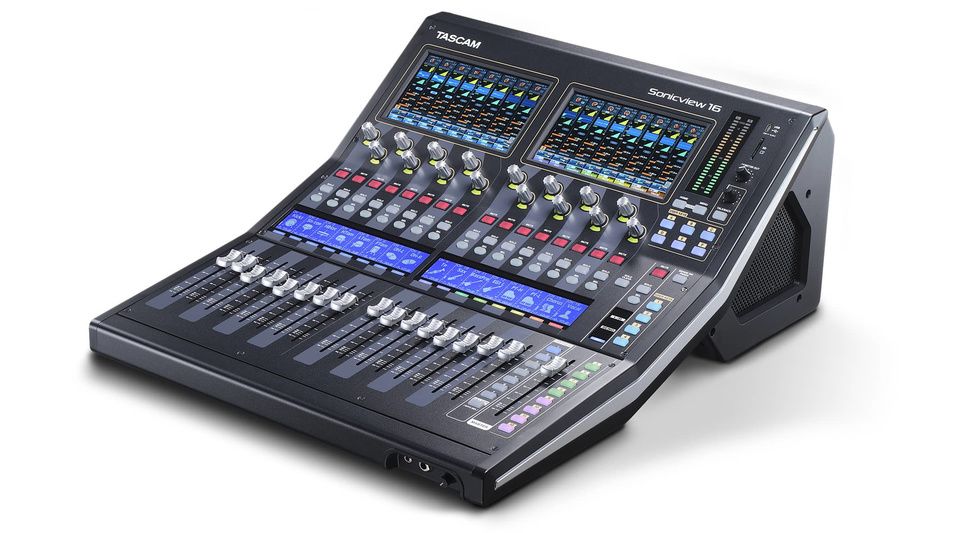

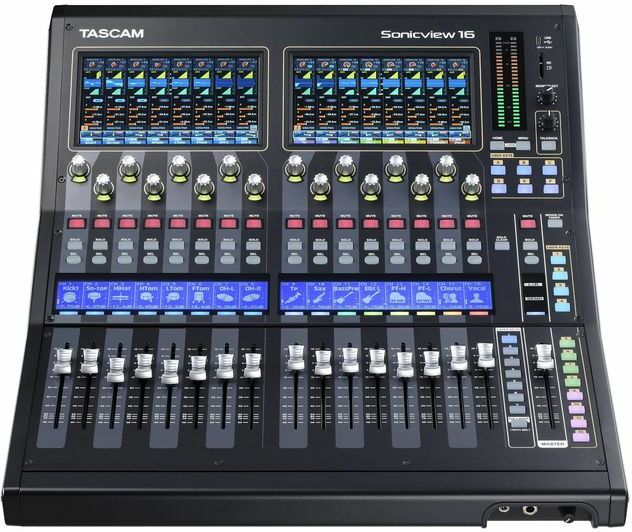

The Tascam Sonic View 16 is a 16-channel digital mixer.

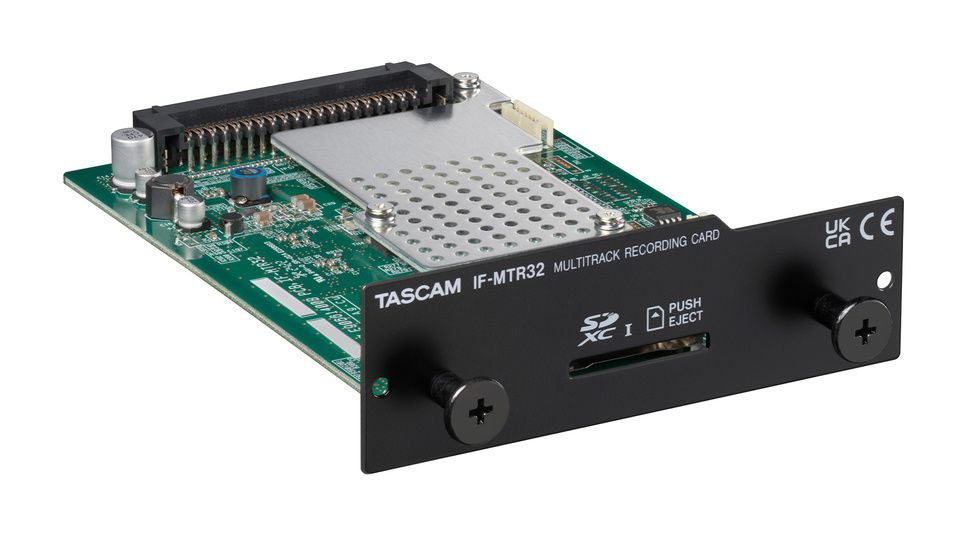

Sonicview consoles integrate elegantly with the rest of your system, thanks to Dante networking capabilities, a multi-channel USB audio interface working in 96 kHz/32-bit and all integrated inputs/outputs. Uncompromising audio quality, an FPGA-based 54-bit floating-point mixing engine, extensive signal processing functions, an expansion card slot for increased connectivity, wireless remote control: Sonicview consoles are the next-generation choice for recording studios, mobile studios, touring, fixed installation and broadcast.

Lire la suite

Ficha técnica

Cantidad de canales de mesa de mezcla De 10 a 22 canales

Number of inputs 52 audio channels
(40 mono, 2 stereo, 4 stereo effect returns)
Number of buses 32
(22 switchable Aux/Group mix buses, 1 stereo main bus, 4 stereo output buses)
Built-in effects 4
Number of managed input sources
At 96 kHz Maximum 152
At 48 kHz Maximum 248
Microphone/Line (XLR) 16
Line (RCA/cinch) 4 (2 × stereo)
Dante 32 (96 kHz), 64 (48 kHz)
Expansion cards 2 × 32 (96 kHz), 2 × 64 (48 kHz)
Audio player 32
Built-in USB 2 (1 × stereo)
Oscillator 1
Talkback (commands) 1
Selectable output targets
At 96 kHz Maximum 148
At 48 kHz Maximum 244
Line (XLR) 16
Dante 32 (96 kHz), 64 (48 kHz)
Expansion cards 2 × 32 (96 kHz), 2 × 64 (48 kHz)
USB audio 32
Monitor output (analog) 2 (1 × stereo)
Built-in recorder 2 (1 × stereo)
Inserts
Analog insert points 2 (Mic/Line input 7–8)
Digital signal processing
Mixing engine 54-bit floating-point, 96 kHz
A/D converters 32 channels, at 96 kHz
D/A converters 24 channels, at 96 kHz
Digital inputs/outputs sampling frequency 48 kHz, 96 kHz
Mic/Line inputs (balanced, MIC/LINE) XLR-3-31 (1: ground, 2: hot, 3: cold)
Maximum input level +12 dBu (TRIM at minimum, PAD disabled)
+32 dBu (TRIM at minimum, PAD enabled)
Minimum input level –62 dBu (TRIM at maximum, PAD disabled)
–42 dBu (TRIM at maximum, PAD enabled)
Input impedance ?5 kΩ
Line inputs (LINE IN (BAL)) 6.35 mm jack connector (TRS)
(Tip: hot, Ring: cold, Sleeve: ground)
Maximum input level +12 dBu (TRIM at minimum, PAD disabled)
+32 dBu (TRIM at minimum, PAD enabled)
Minimum input level –62 dBu (TRIM at maximum, PAD disabled)
–42 dBu (TRIM at maximum, PAD enabled)
Input impedance ?5 kΩ
Insert points (INSERT) 6.35 mm jack connector (TRS)
(Tip: hot, Ring: cold, Sleeve: ground)
Maximum input level (return) +18 dBu
Nominal input level (return) –2 dBu
Input impedance (return) ?5 kΩ
Maximum output level (departure) +18 dBu
Maximum output level (departure) –2 dBu
Output impedance (departure) ?100 Ω
TALKBACK input XLR-3-31 (1: ground, 2: hot, 3: cold)
Maximum input level +10 dBu
Minimum input level –65 dBu
Gain adjustment 0–55 dB
Input impedance ?5 kΩ
Phantom power +48 V available
Stereo inputs (ST IN 1–2 L/R) RCA connectors
Maximum input level +6 dBV (1.995 V rms)
Nominal input level –10 dBV (0.316 V rms)
Dynamic range 16 dB
Input impedance ?10 k
