Pedal de chorus / flanger / phaser / modulación / trémolo

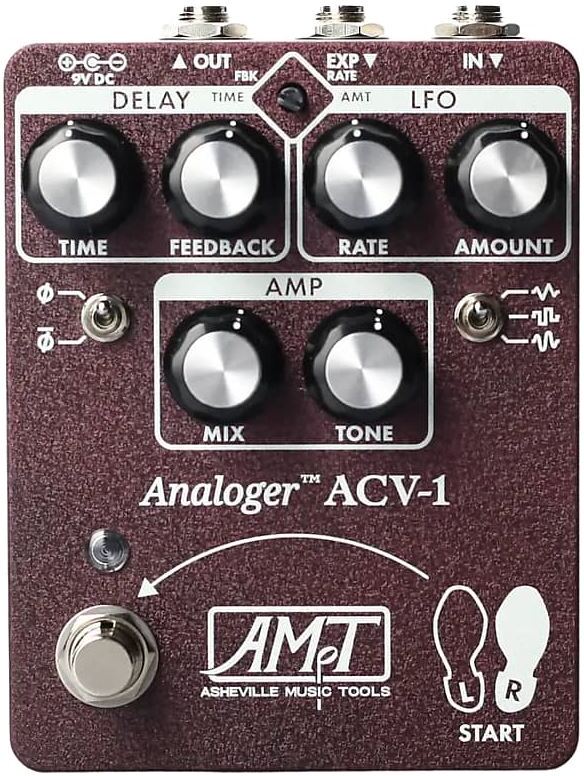

The ACV-1 Analog Chorus Vibrato is a pedal offered by the Asheville Music Tools brand.
The ACV-1 from the Analoger series is the latest innovation in 100% analog effects. This chorus/vibrato/slapback is based on a modulated BBD delay line, featuring a set of flexible synthesizer-inspired controls. At first glance, the ACV-1 appears to be a highly customizable classic chorus. In reality, it's a powerhouse of time modulation: swirls of sparkling comb filters, rich vibrato, glitchy textures, metallic sounds, and even simulated reverb.
This remarkable analog modulator was designed by Hawker to deliver the ultimate time warping experience. With a simple change in mindset, it is possible to be transported to a lost time where nothing will be the same!
The ACV-1 from the Analoger series is the latest innovation in 100% analog effects. This chorus/vibrato/slapback is based on a modulated BBD delay line, featuring a set of flexible synthesizer-inspired controls. At first glance, the ACV-1 appears to be a highly customizable classic chorus. In reality, it's a powerhouse of time modulation: swirls of sparkling comb filters, rich vibrato, glitchy textures, metallic sounds, and even simulated reverb.
This remarkable analog modulator was designed by Hawker to deliver the ultimate time warping experience. With a simple change in mindset, it is possible to be transported to a lost time where nothing will be the same!
Lire la suite
Ficha técnica
- Type: 100% analog signal and control path.
- Footswitch Bypass: user selectable on/off effect True Bypass or JFET Buffered (accessible by removing the ACV-1 cover)
- Power supply: 9 V DC @ <150 mA. 70-90 mA typical. Up to 250 mA at start-up. Standard negative pedal center, 2.1mm x 5.5mm barrel.
- Delay time: 3.1ms - 59ms. 1.9 ms - 95 ms with LFO and up to 155 ms with external CV
- Feedback: 0 to almost infinity. Capable of self-oscillation using tone or EXP/CV input coupled to knob position.
- Frequency: LFO RATE, 0.1 Hz to 14 Hz (28 Hz with CV control)
- Amount: LFO depth control from OFF to 60% of TIME sweep
- Mixture: Center 50%. Adjust from completely damp to completely dry
- Tone: Center tilt filter ~740 Hz. Center = Flat at 0.3 dB, High +5 dB to -10 dB, Low +4 dB to -7 dB.
- Phase switch: 180° phase shift of wet signal and return signal.
- LFO: selectable triangle, sine or square wave
- Expression Switch: 4-position rotary selects external control of time, feedback, rate or quantity. All controls add to the front panel button, adding extended reach. TRS jack usable with a CV or Expression pedal (CV range is 0 to 5 V). 5 V output limited to current supplied by the ring. Control input on tip.
- Input impedance: > 1 MΩ
- Output impedance: 1 KΩ maximum (5 k maximum for buffered bypass)
- Maximum input level: +14.25 dBµ (4.0 V RMS)
- Maximum output level: +14dBµ (3.9V RMS)
- Noise reduction: 2:1 broadband with 10 dB high frequency boost
