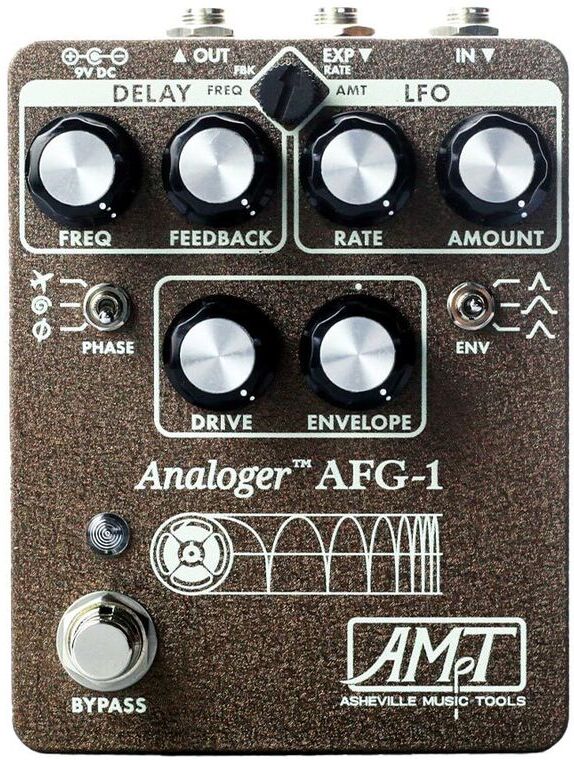

Asheville music tools AFG-1 Analog Flanger
- Leer reseñas (0)
- Accesorios relacionados
- Productos similares
La marca Asheville music tools
Conoce más sobre la marca Asheville music tools y descubre todo el catálogo.
Guía de compra de efectos de bajo
¿Cómo navega a través de la profusión de pedales de efectos disponibles en el mercado? Star's Music hace balance, ¡sigue esta guía de compra!
Póngase en contacto con un experto
Nuestros teleconsultores músicos y entusiastas están aquí para responder todas sus preguntas.
Pedal de chorus / flanger / phaser / modulación / trémolo
The ACV-1 Analog Flanger is a pedal offered by the Asheville Music Tools brand.
The Analoger™ Series ACV-1 Chorus/Vibrato/Slapback is the latest creation in their 100% analog effects series. The ACV-1 consists of a modulated BBD delay line with a flexible set of synthesizer-inspired controls. On the surface, the ACV-1 is simply a classic, highly editable chorus. In reality, it's a veritable powerhouse of time warp modulation effects: swirls of shimmering comb filters, real luscious vibrato, glitchy textures, metal pipe sounds, and even fake reverb.
The Analoger™ Series ACV-1 Chorus/Vibrato/Slapback is the latest creation in their 100% analog effects series. The ACV-1 consists of a modulated BBD delay line with a flexible set of synthesizer-inspired controls. On the surface, the ACV-1 is simply a classic, highly editable chorus. In reality, it's a veritable powerhouse of time warp modulation effects: swirls of shimmering comb filters, real luscious vibrato, glitchy textures, metal pipe sounds, and even fake reverb.
Lire la suite
Ficha técnica
- Type: 100% analog signal and control path.
- Footswitch Bypass: user selectable on/off effect True Bypass or JFET Buffered (accessible by removing the ACV-1 cover)
- Power supply: 9 V DC @ <150 mA. 70-90 mA typical. Up to 250 mA at start-up. Standard negative pedal center, 2.1mm x 5.5mm barrel.
- Delay time: 3.1ms - 59ms. 1.9 ms - 95 ms with LFO and up to 155 ms with external CV
- Feedback: 0 to almost infinity. Capable of self-oscillation using tone or EXP/CV input coupled to knob position.
- Frequency: LFO RATE, 0.1 Hz to 14 Hz (28 Hz with CV control)
- Amount: LFO depth control from OFF to 60% of TIME sweep
- Mixture: Center 50%. Adjust from completely damp to completely dry
- Tone: Center tilt filter ~740 Hz. Center = Flat at 0.3 dB, High +5 dB to -10 dB, Low +4 dB to -7 dB.
- Phase switch: 180° phase shift of wet signal and return signal.
- LFO: selectable triangle, sine or square wave
- Expression Switch: 4-position rotary selects external control of time, feedback, rate or quantity. All controls add to the front panel button, adding extended reach. TRS jack usable with a CV or Expression pedal (CV range is 0 to 5 V). 5 V output limited to current supplied by the ring. Control input on tip.
- Input impedance: > 1 MΩ
- Output impedance: 1 KΩ maximum (5 k maximum for buffered bypass)
- Maximum input level: +14.25 dBµ (4.0 V RMS)
- Maximum output level: +14dBµ (3.9V RMS)
- Noise reduction: 2:1 broadband with 10 dB high frequency boost
