Cápsula

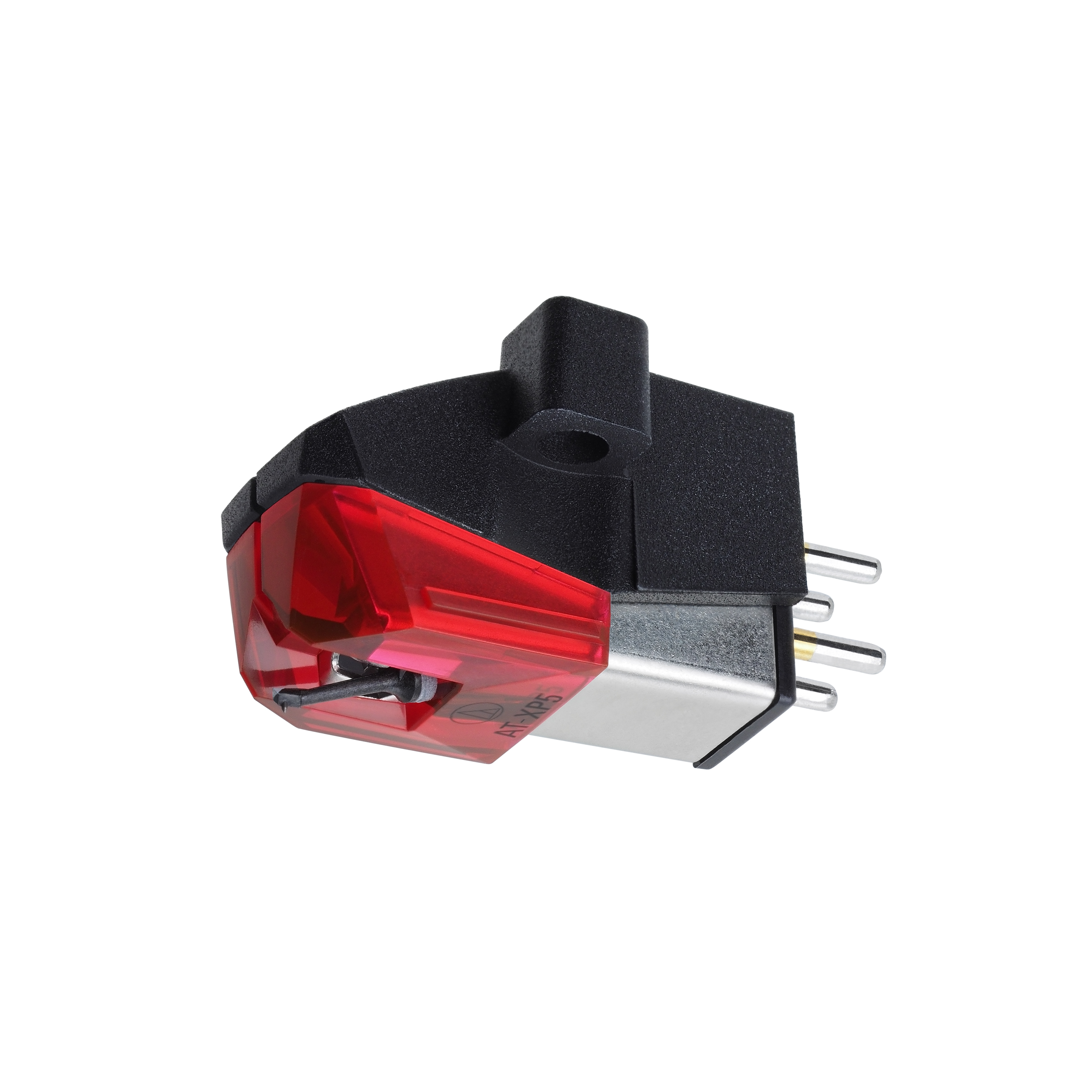

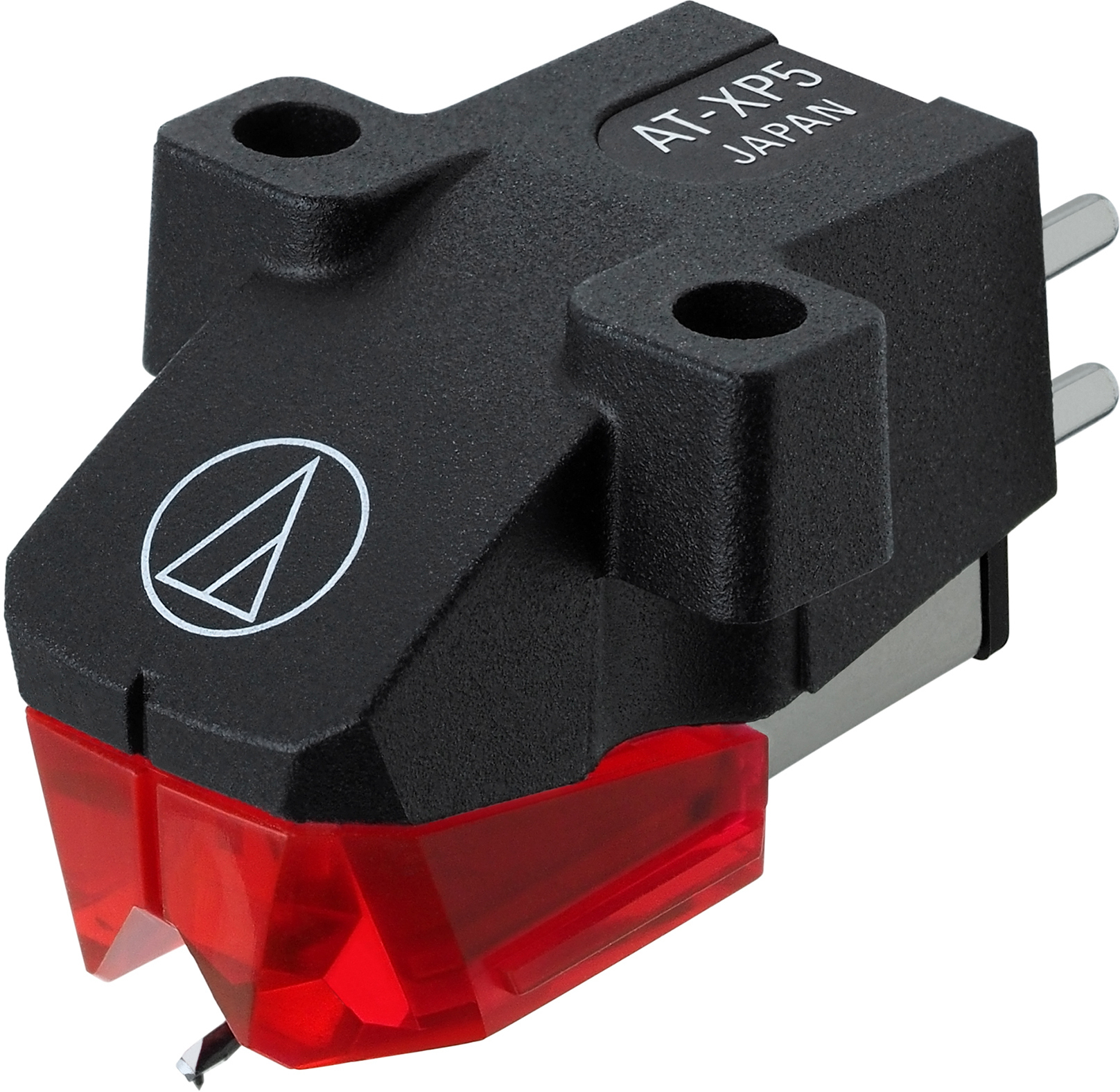

The AT-XP5 is specially designed for the needs of DJs.
This cartridge features a highly-rigid polyphenylene sulfide (PPS) / glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
This cartridge features a highly-rigid polyphenylene sulfide (PPS) / glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Lire la suite
Ficha técnica
- Frequency response 20-18 000 Hz
- Channel separation 20 (dB at 1 kHz)
- 2.0-4.0g vertical tracking force (3.0g standard)
- Charging impedance recommended 47,000 ohms
- Output 5.5 mV (1 kHz, 5 cm / sec.)
- Channel balance 2.0 dB (1 kHz)

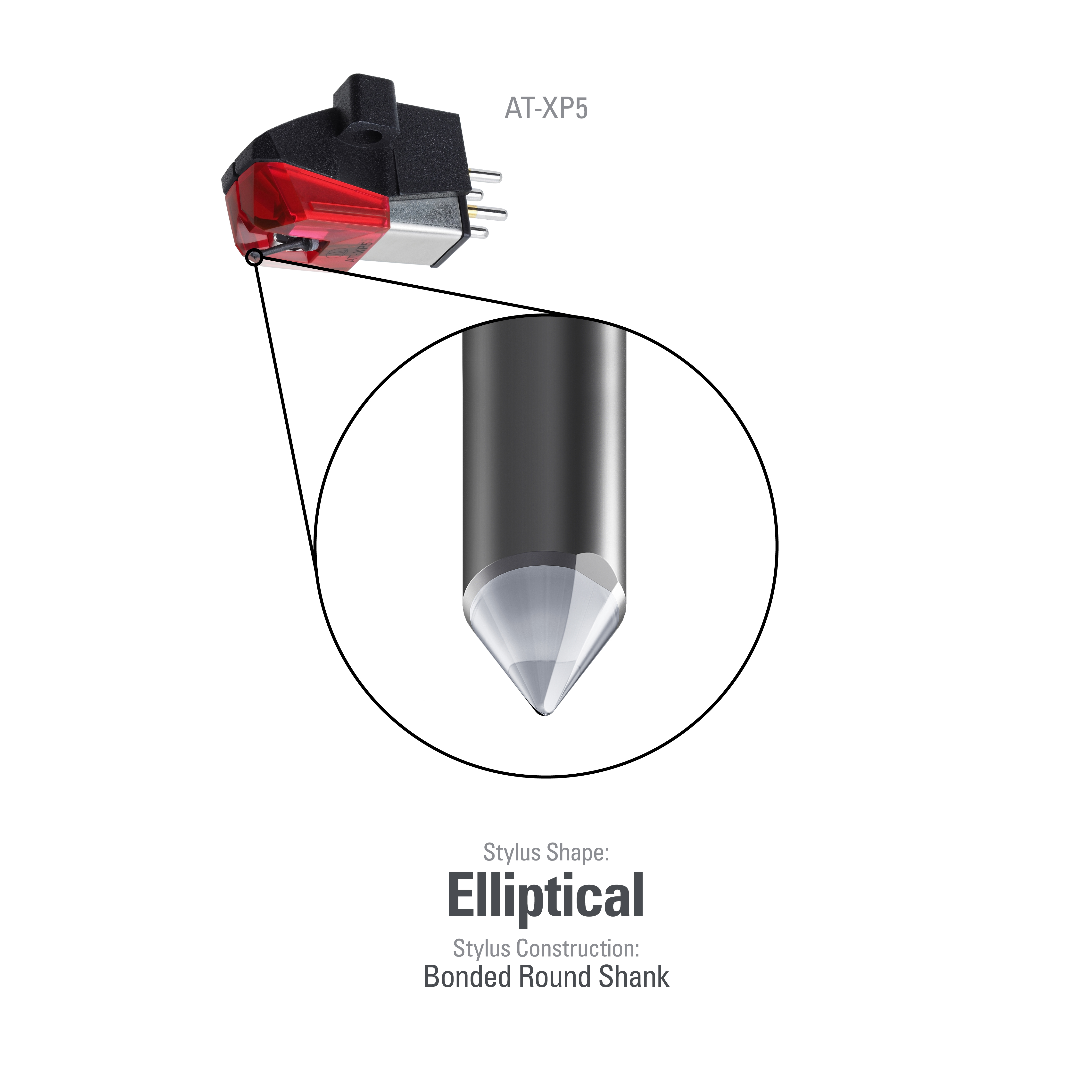

- Stylus shape 0.3 x 0.7 mil elliptical
- ABS cantilever reinforced carbon fiber
- Half inch thumb
- Replacement stylus ATN-XP5
- Coil impedance: 6.7 k ohms (1 kHz)
- DC resistance: 990 ohms
- Recommended load capacity: 100 to 200 pF
- Coil inductance: 1.0 H (1 kHz)
- Vertical tracking angle: 20 °
- Dimensions: 17.2 mm (0.68 ") H × 17.8 mm (0.67") W × 28.3 mm (1.20 ") D
- Weight: 6.2 g (0.22 oz)
