Mini amplificador para guitarra

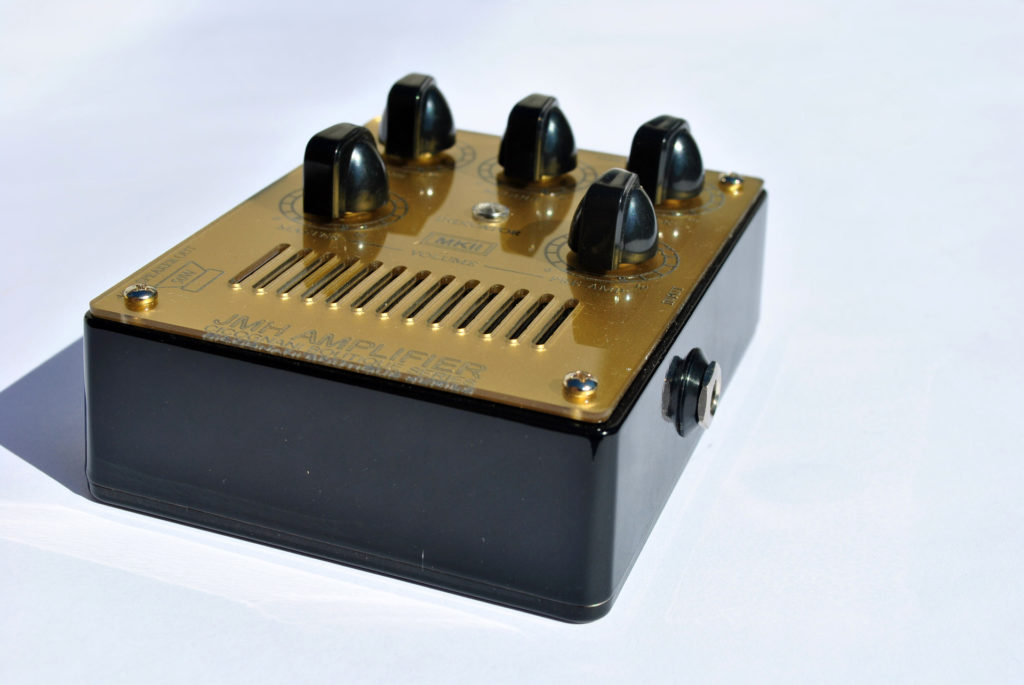

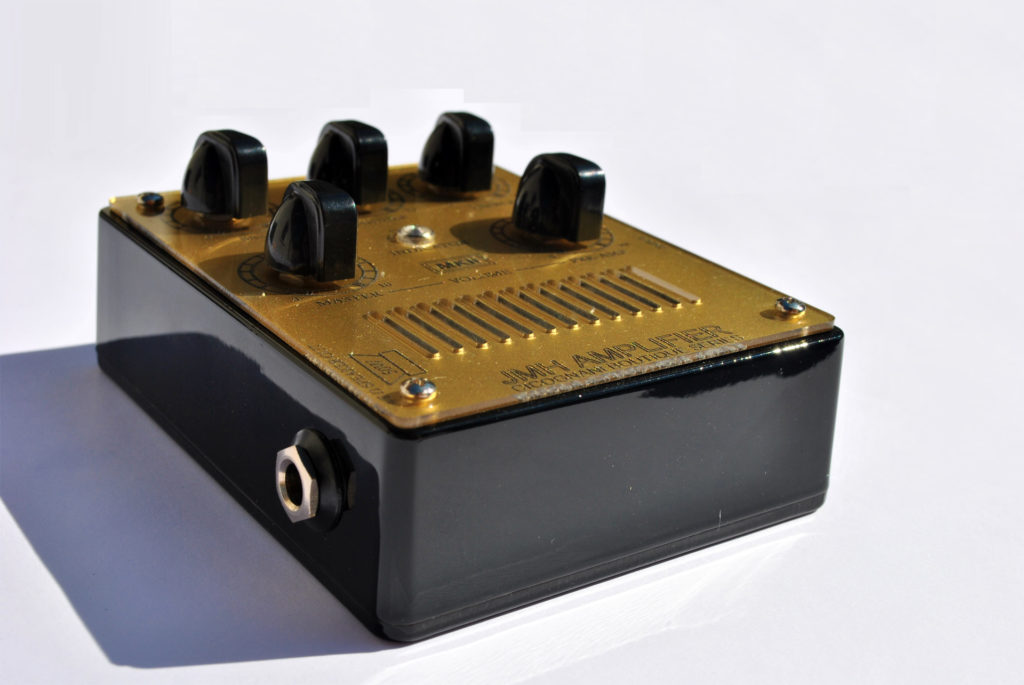

CICOGNANI ENGINEEERING Boutique Series JMH Amplifier MKII pedal is a class D amplifier with a final stage that offers a maximum power of 60W RMS on impedance of 4Ohm. Small, light, compact, it integrates a pre-amplifier in JFET technology.
The Pre-Amplifier in “cascode” technique proposes an amazing linearity of signal useful to guarantee great benefits of interfacing and transparency of the signal to other units. Tone Control includes three passive filters that act on the frequencies: 80Hz (low), 560Hz (middle), 5500Hz (high).
Power Stage employs a class D digital module with PBTL configuration. Although the connection of a speaker with an impedance of 4 to 8Ohm is possible. The best performance of power and linearity can be identified in 4Ohm.
The Pre-Amplifier in “cascode” technique proposes an amazing linearity of signal useful to guarantee great benefits of interfacing and transparency of the signal to other units. Tone Control includes three passive filters that act on the frequencies: 80Hz (low), 560Hz (middle), 5500Hz (high).
Power Stage employs a class D digital module with PBTL configuration. Although the connection of a speaker with an impedance of 4 to 8Ohm is possible. The best performance of power and linearity can be identified in 4Ohm.
Lire la suite
Ficha técnica
- Configuración del altavoz Otras configuraciones de altavoz
- Custom shop No
- potencia de amplificador para guitarra De 50 a 99 watts
- Potencia en vatios 60 watts
- Tecnología Transistors
- Tipo de Custom shop No
- CICOGNANI ENGINEEERING Boutique Series JMH Amplifier MKII
- SKU Cicognani Engineering CICJMHA
- Electric guitare amplifier in a stompbox format
- Hand made in Italy
- 2023
- Class D JFET circuit
- 60 watts maxi under 4 ohms
- 4 or 8 ohms outputs

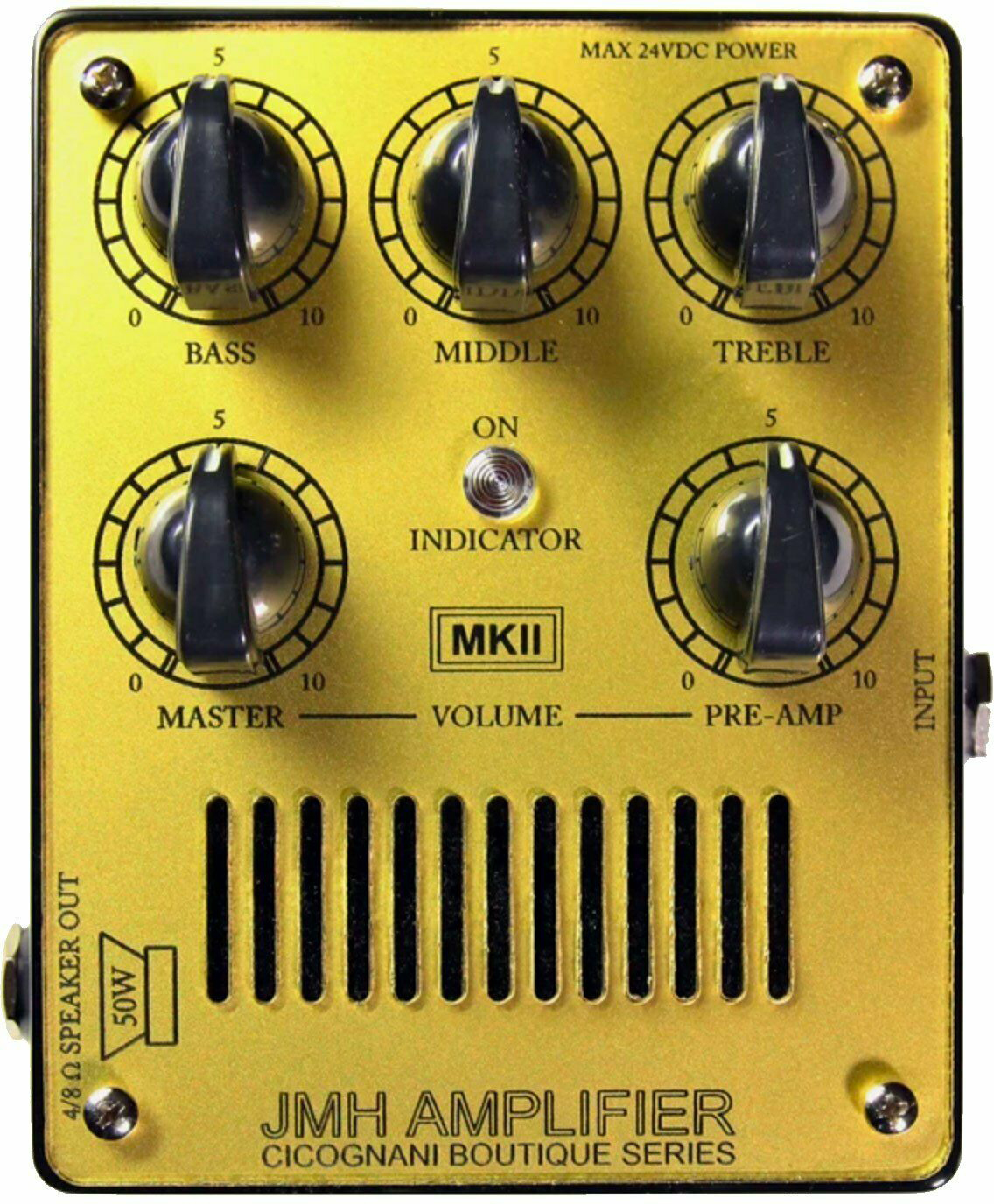

- Controls : see pictures
- Connections : see pictures
- 1V or 24V circuit, optional power supply (barrel 2.1 mm plug, negative center)
- Doesn't work on batteries
- 120 x 94 x 45 mm
- 300 g
- Manual : https://urlz.fr/kUjh
