Efectos para guitarra eléctrica

Cicognani engineering

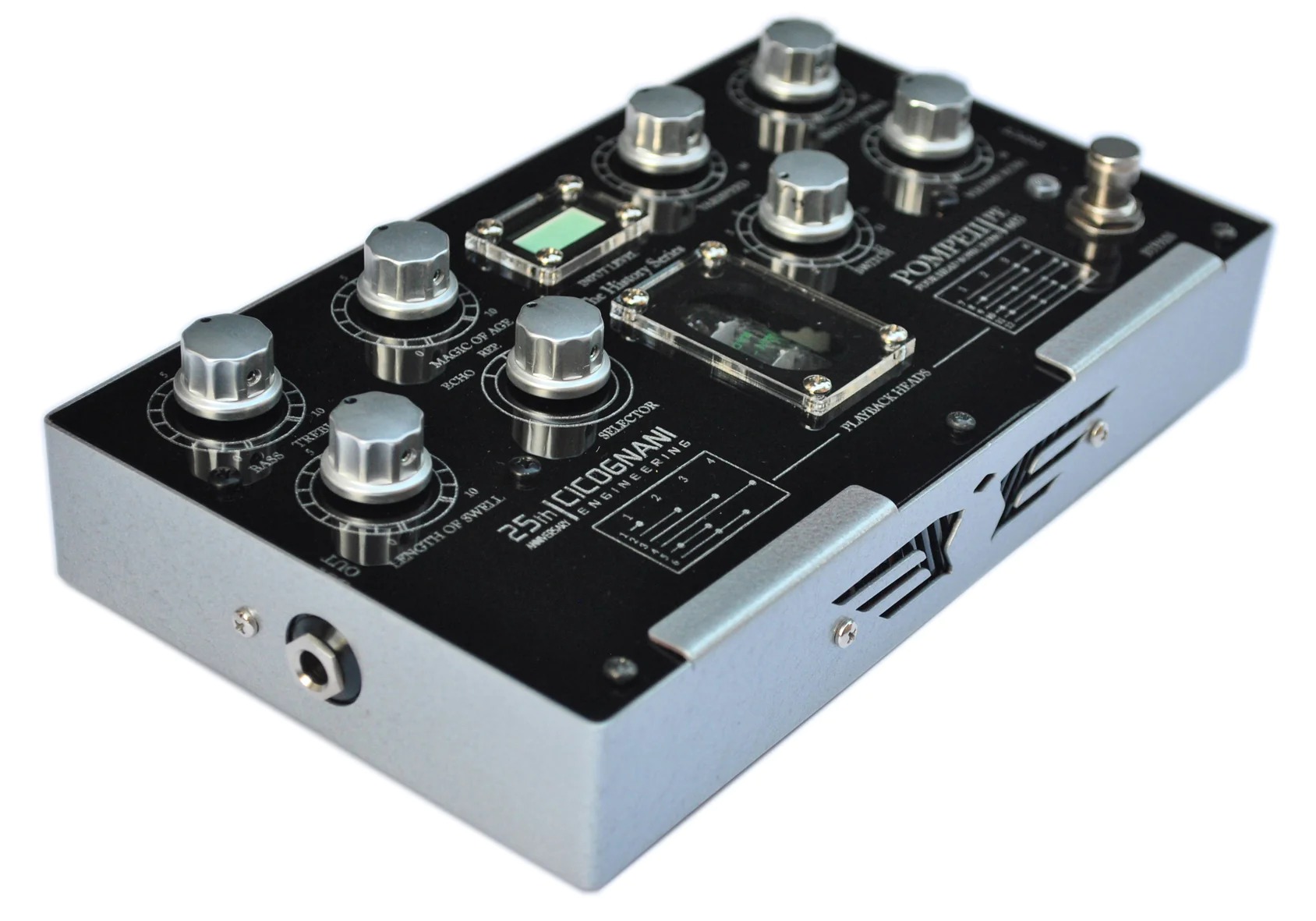

History Pompeii PE603 Four Head Sonic Echo

Leer reseñas (0)
VIDEO
VIDEO
Compartir, repartir :
619.00 €
549,00 €
Envío gratis
Precios bajos garantizados
Satisfecho o rembolsado
Garantía 3 años
última pieza
1 habitación disponible.
Expedición entre 2/3 días
Stock en tienda
Ver disponibilidad. Tienda
•
La Pédale by
Star's Music
Disponible
Tu opinión premiada
Premios a ganar cada mes
Póngase en contacto con un experto
+33 181 930 900 email
Descripción
The Italian Echo Units were produced by the famous Italian company in Milan since the 60s and they were soon appreciated all over the world and used by many artists. They worked with 4 play heads and some models from the 70s were then expanded and equipped up to 6.

CICOGNANI ENGINEEERING History Series POMPEII PE603 Four Head Sonic Echo pedal is an echo unit that aims to revive the emotions of the past but in a smaller pedal and with improved sonic performance. Tonewise the PE603 provides from classic slap-back to up to 740mS delay. The swell mode creates a reverberation and is made possible through the use of all the heads simultaneously. Both wet & dry signal pass through a 12AU7 tube for the warmest sound with maximum transparency. A Fet cascade circuit is employed to mix gains and buffer the signal.

Thanks to great signal dynamics the POMPEII PE603 can either be used in front of the amp or in the FX loop at instrument or line level without making any adjustments.

A great deal of time was spent developing the feedback and tone circuits; as a result, the interaction between the feedback and tone controls can create the most beautiful of sounds. To fully re-create the original magic, the POMPEII PE603 is a “multi-head” echo, sharing the same first twelve switch positions as the early machines.

The SELECTOR allow you to choose the echo mode :
- ECHO - Classic 60’s “slapback echo”. One single repeat from the selected head (no feedback available)
- REP - Normal echo mode with selectable heads in feedback combinations
- SWELL - The typical Old Italian reverb effect made with the use of all the heads simultaneously
VIDEO

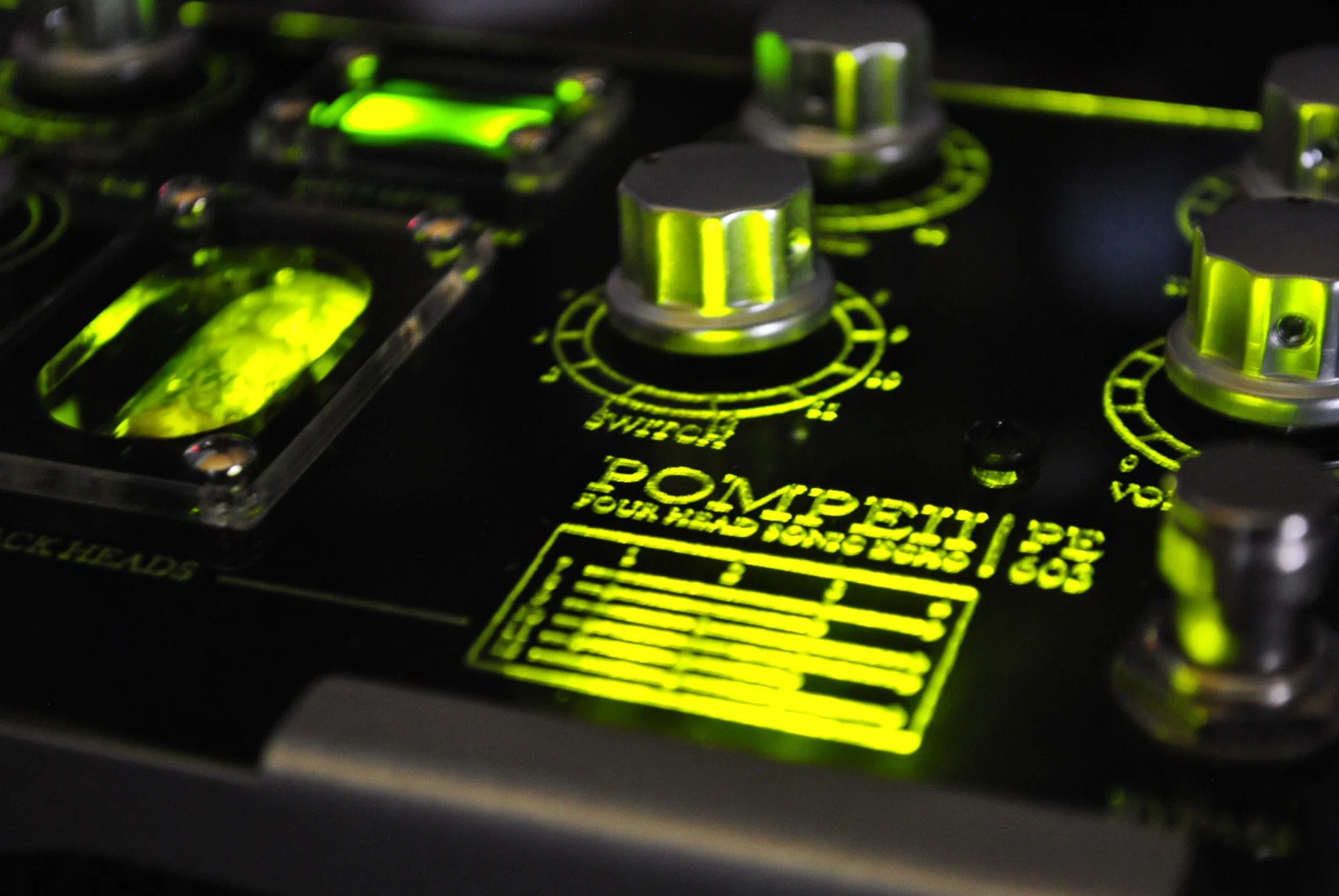

CICOGNANI ENGINEERING POMPEII PE603 Four Head Sonic Echo
ESPECIFICACIONES
Ref : 106205
- CICOGNANI ENGINEEERING History Series POMPEII PE603 Four Head Sonic Echo
- SKU Cicognani Engineering CICOOMP
- Modern version of multi-heads Italian Echo Units from the 60's
- Compact effect pedal
- Hand made in Italy
- 2023
- 100% analog circuit, 1x 12AU7
- 4x record/play heads
- 3x modes (Echo, Rep, Swell)
- ECHO
- Classic 60’s “slapback echo”. One single repeat from the selected head (no feedback available)
- REP
- Normal echo mode with selectable heads in feedback combinations;
- SWELL
- The typical Old Italian reverb effect made with the use of all the heads simultaneously.
- Delay Time from 74mS to 296mS
- First Tap = 74mS
- Second tap = 148mS
- Third tap = 222 mS
- Fourth tap = 296mS
- Switch to select between 12x heads combinations

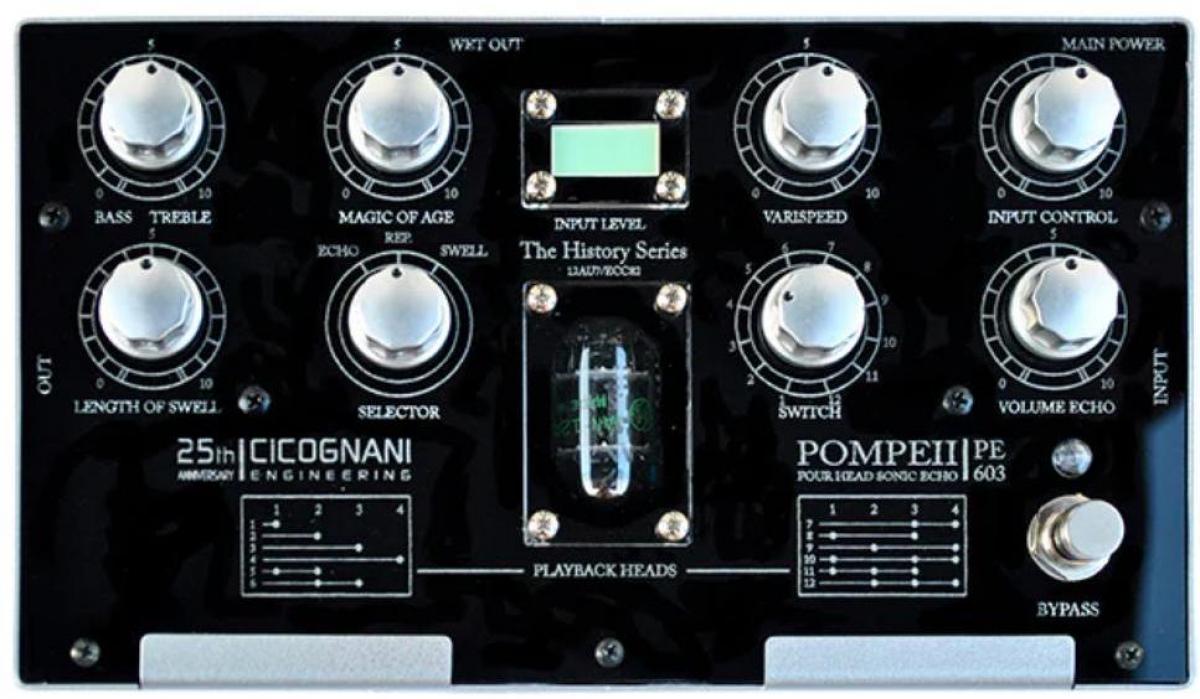

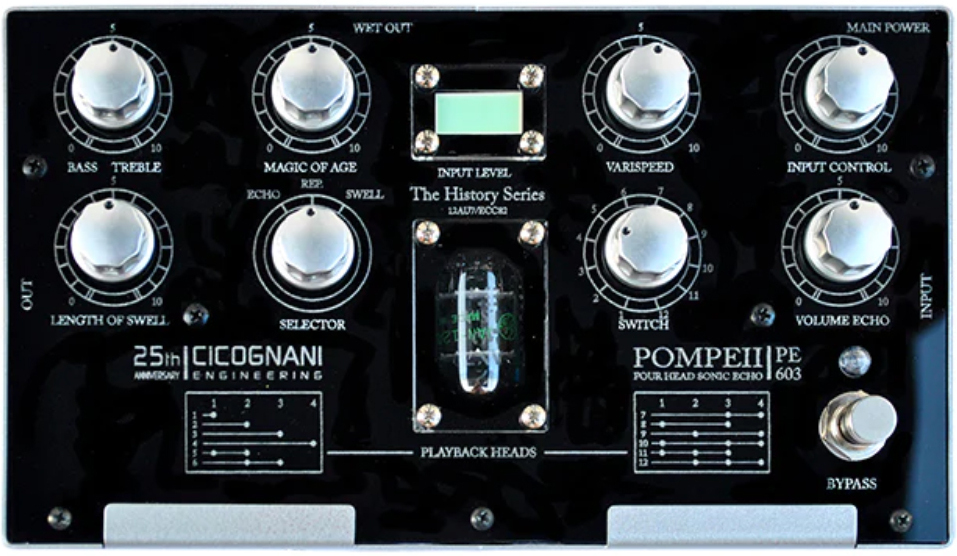

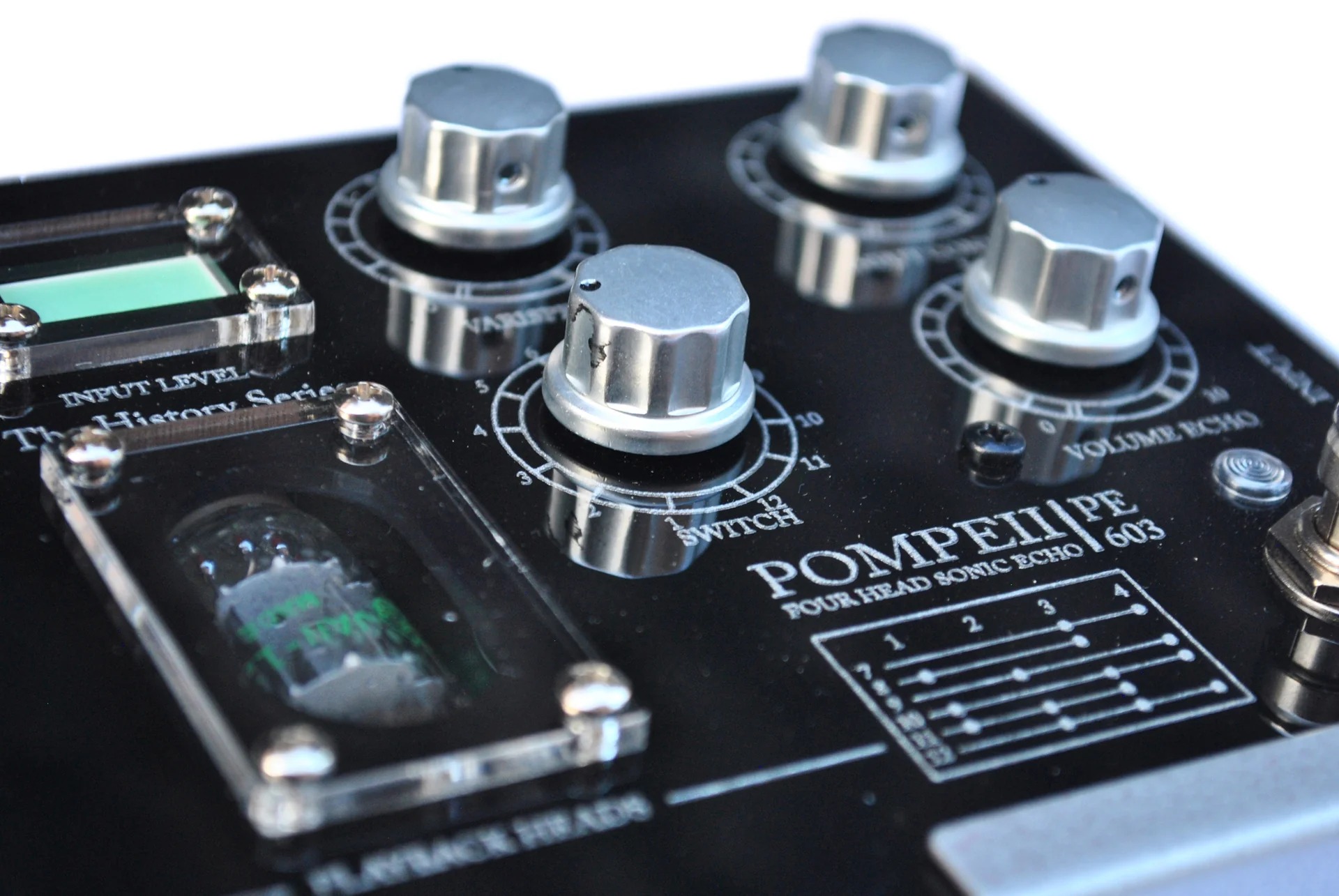

- Controls : see pictures

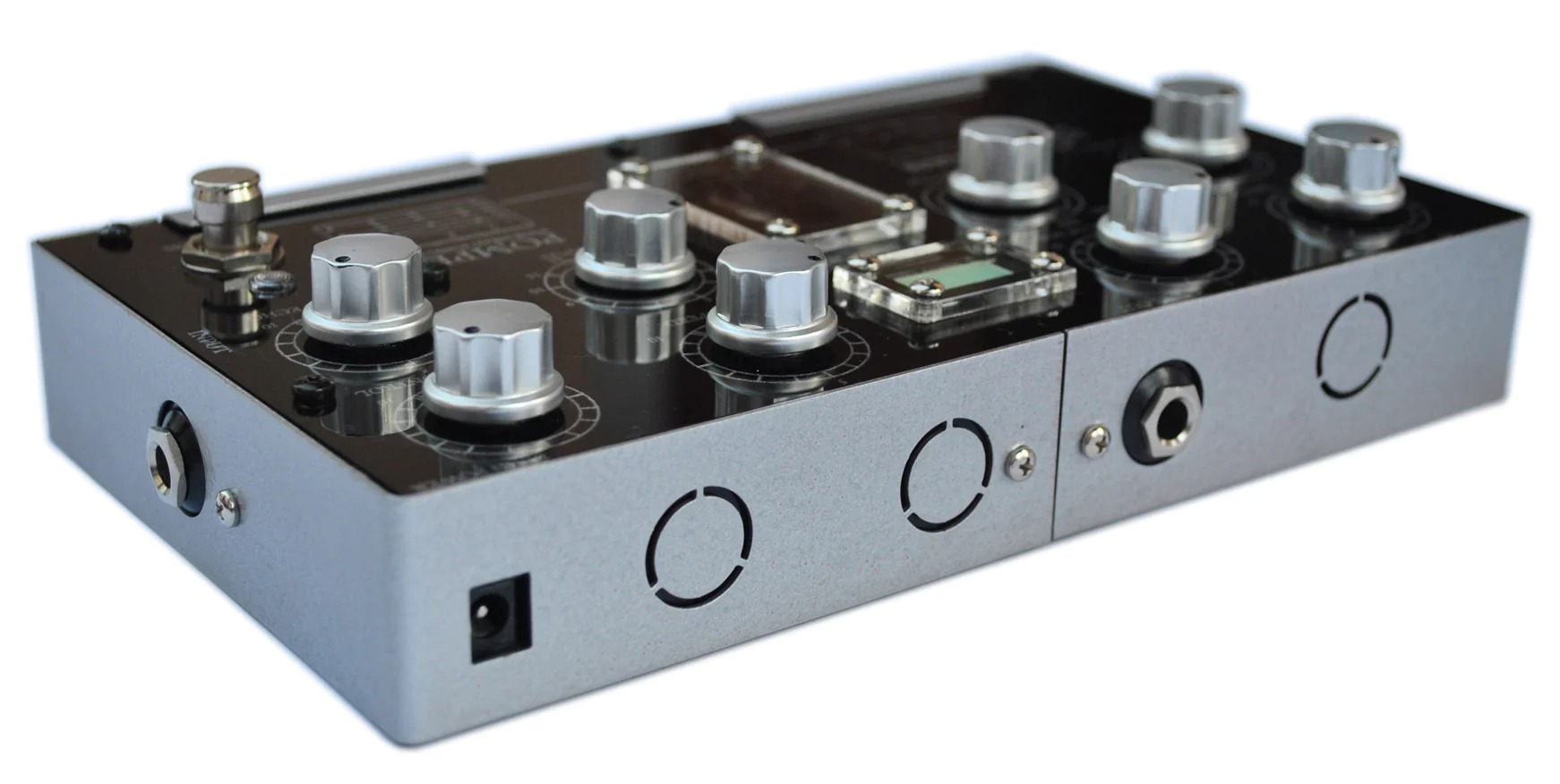

- Connections : see pictures
- True Bypass
- 9V or 12V circuit, optional power supply (barrel 2.1 mm plug, negative center, current draw 350 > 500 mA)
- Doesn't work on batteries
- 130 x 220 x 50 mm
- 700 g
- Manual : https://urlz.fr/kUxa
