Cranborne N22

  • Leer reseñas (0)
  • Accesorios relacionados
  • Productos similares

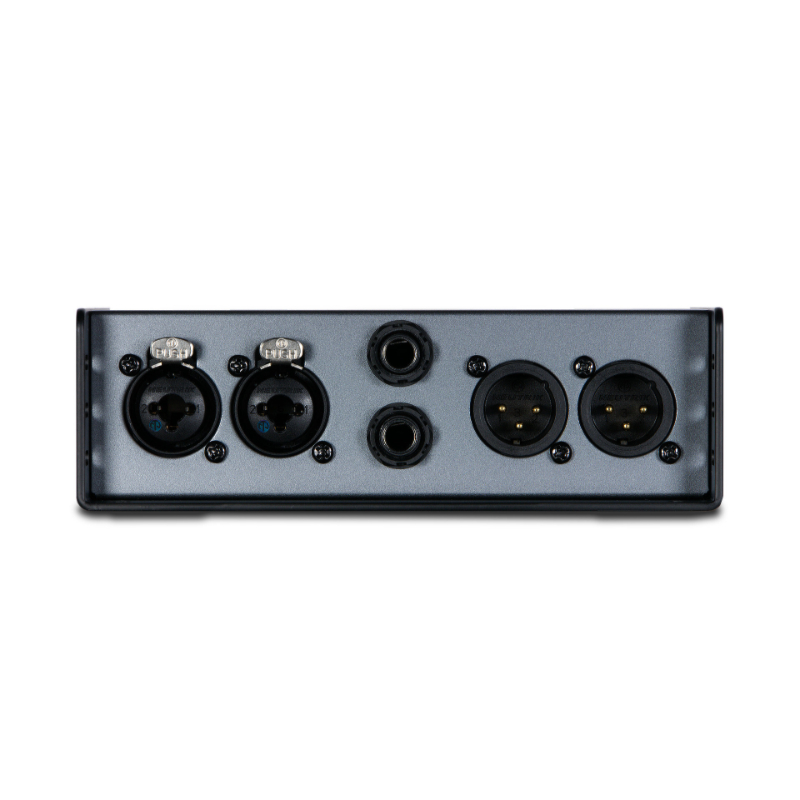

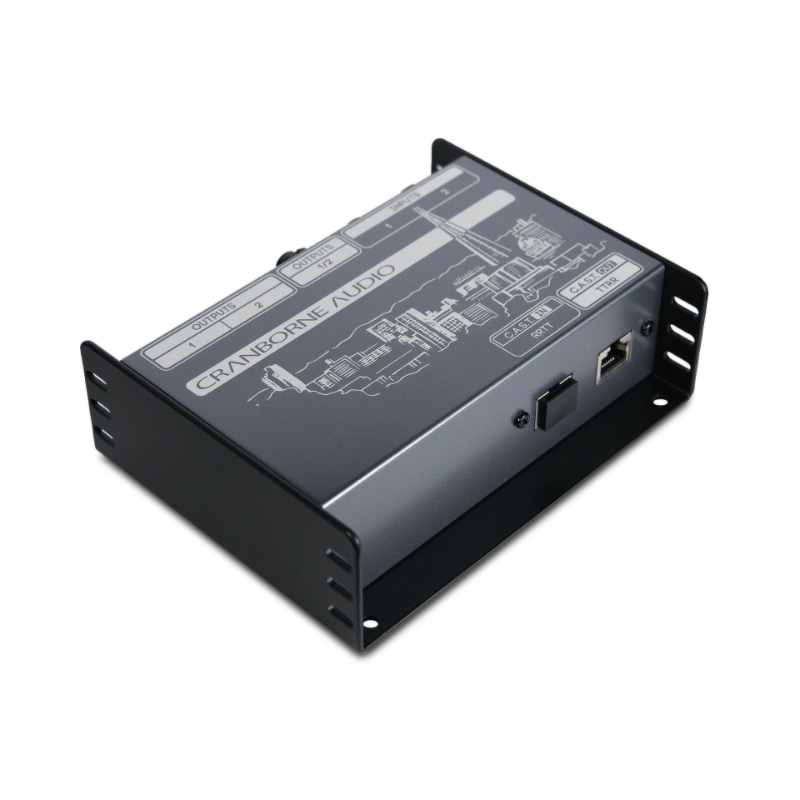

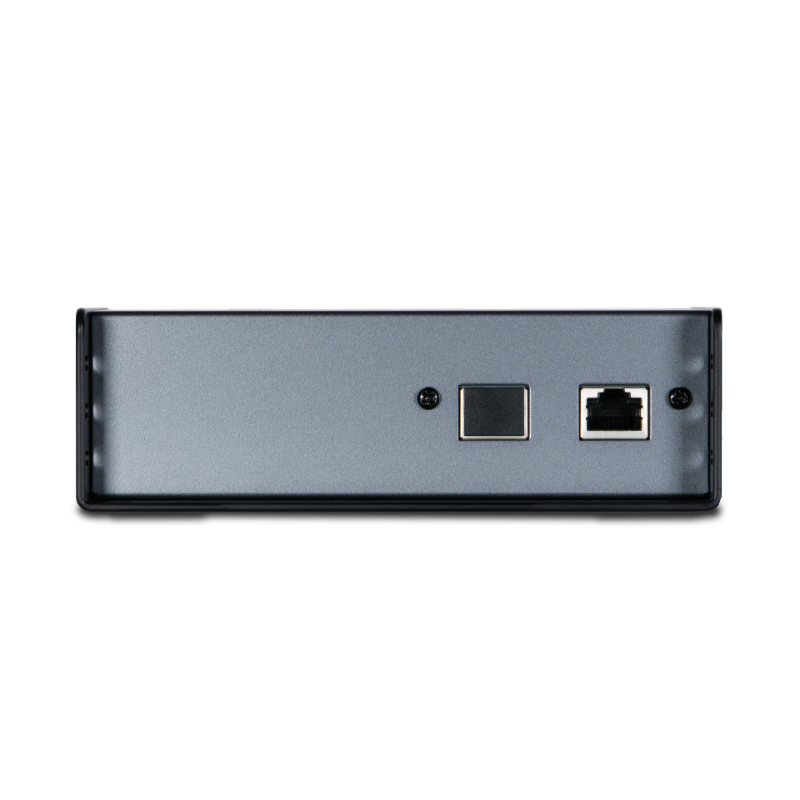

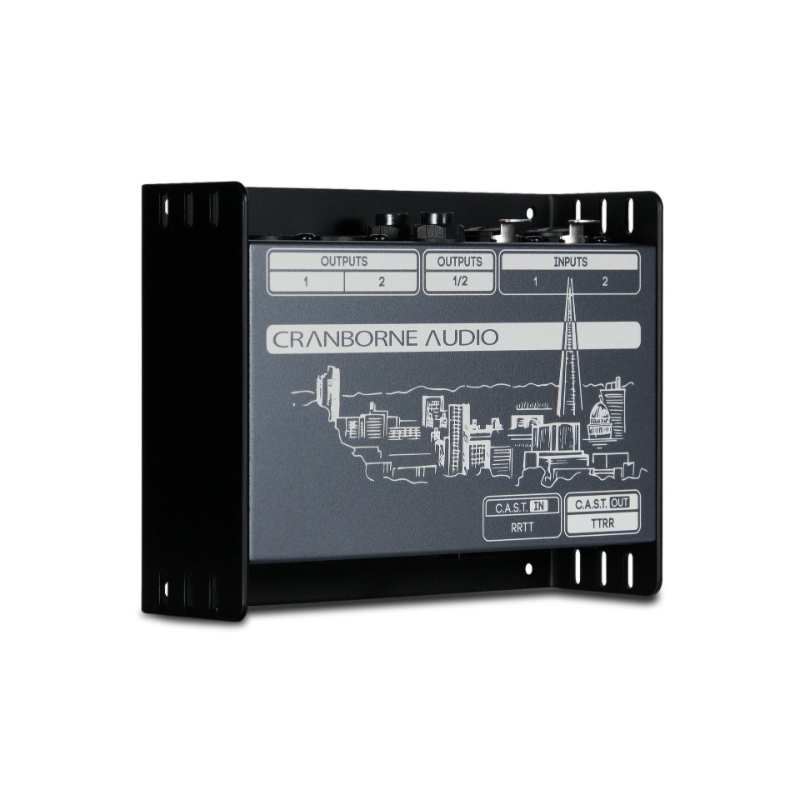

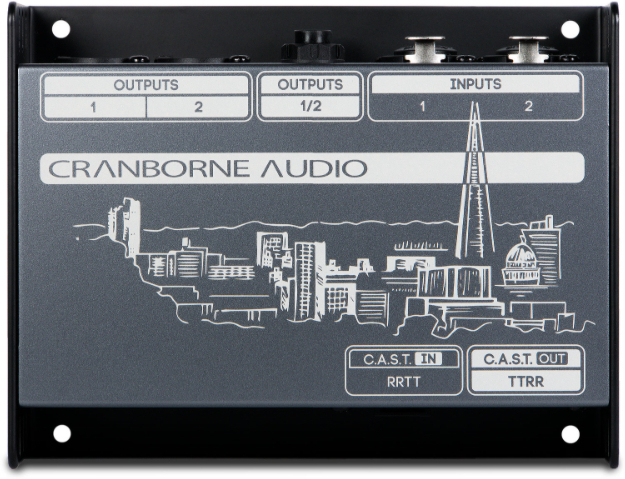

  • Cranborne N22 - Caja DI - Main picture
  • Cranborne N22 - Caja DI - Variation 1
  • Cranborne N22 - Caja DI - Variation 2
  • Cranborne N22 - Caja DI - Variation 3
  • Cranborne N22 - Caja DI - Variation 4
  • Ref : 116769
125,00 €
  • Envío gratis
  • Precios bajos garantizados
  • Satisfecho o rembolsado
  • Garantía 3 años
Stock Internet
expedición entre 3 y 5 días
Stock en tienda
No disponible en tienda
Variación(es) de este producto.

La marca Cranborne

Conoce más sobre la marca Cranborne y descubre todo el catálogo.

La mayor red de tiendas de Francia

Encuentra toda la información sobre nuestras grandes superficies y nuestras boutiques especializadas.

Póngase en contacto con un experto

Nuestros teleconsultores músicos y entusiastas están aquí para responder todas sus preguntas.

Caja di

The Cranborne Audio N22 is a standalone audio distribution box utilizing C.A.S.T. (Cat 5 Analogue Snake Transport) technology. It allows the transmission of up to four balanced audio channels over a single shielded network cable (Cat 5e, Cat 6, or Cat 7), over distances of up to 100 meters.

Perfectly suited for modular studios and live environments, the N22 allows for flexible, simple, and fast audio distribution without the need for external power. It integrates seamlessly with Cranborne Audio's C.A.S.T. audio interfaces and hubs.
Lire la suite

Ficha técnica

  • Device Type
  • Balanced Audio Splitter
  • Works with CAST (RJ45 connection)
  • Main Function
  • Replaces 4 XLR cables with a single shielded network cable
  • Transports balanced analog audio signals over long distances
  • Connectivity
  • RJ45 connector for CAST connection
  • 2 balanced inputs and 2 balanced outputs on XLR or TRS (depending on configuration)
  • Operates without external power supply
  • Transmission Distance
  • Up to 100 meters with shielded Cat 5e, 6, or 7 network cable
  • Studio Applications
  • Flexible positioning in the recording room or booth
  • Sends mic/line signals to a compatible audio interface
  • Returns a stereo mix to the recording area for direct monitoring
  • Compatibility
  • Works with all Cranborne Audio products equipped with CAST ports. (N8, N22, N22H, 500R8, 500ADAT, Camden EC2)
  • Benefits
  • Quick and clean installation
  • No soldering or power required
  • Massive reduction in traditional cabling
  • Ideal for modular studio setups or live installations
