Pedal de volumen / booster / expresión

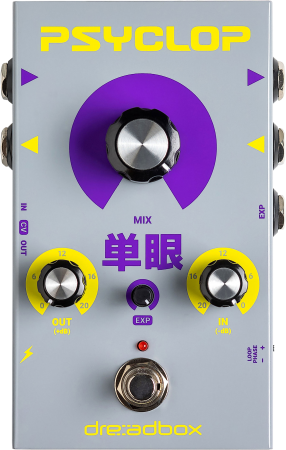

The Psyclop is a pedal offered by the Dreadbox brand.
The Psyclop has advanced capabilities for handling various signals from instruments or effects pedals, integrating them seamlessly into its parallel effects loop. With an input attenuation range of up to -20 dB and an output gain boost of up to +20 dB, it easily accommodates a wide range of signals. To prevent any risk of phase cancellation between the Dry and Wet signals, the Psyclop is equipped with a phase selector on its side. Additionally, it can convert TRS Expression signals to CV, making them compatible with most Euroracks. The EXP setting on the pedal allows you to modulate the CV output. With no device connected to its CV IN input, the CV OUT jack will generate a voltage of 0 to 5 V depending on the setting of this knob and the position of a connected EXP pedal.
The Psyclop has advanced capabilities for handling various signals from instruments or effects pedals, integrating them seamlessly into its parallel effects loop. With an input attenuation range of up to -20 dB and an output gain boost of up to +20 dB, it easily accommodates a wide range of signals. To prevent any risk of phase cancellation between the Dry and Wet signals, the Psyclop is equipped with a phase selector on its side. Additionally, it can convert TRS Expression signals to CV, making them compatible with most Euroracks. The EXP setting on the pedal allows you to modulate the CV output. With no device connected to its CV IN input, the CV OUT jack will generate a voltage of 0 to 5 V depending on the setting of this knob and the position of a connected EXP pedal.
Lire la suite
Ficha técnica
- Wet/Dry mixer, booster and attenuator, EXP to CV converter
- Modern utility device - effects loop with Wet/Dry mix, signal attenuation and boost, as well as an Expression to CV (Control Voltage) converter
- Suitable for stringed instruments or synthesizers and Eurorack compatible
- Controls: Depth, Fade, Shape, Rate
- Switch: DIV
- Status LED: On, Tap
- Footswitch: Effect Bypass
- Input on 6.3 mm jack
- Output on 6.3 mm jack
- VCA on 3.5 mm mini jack
- CV input on 3.5 mm mini jack
- CV output on 3.5 mm mini jack
- Connection for mains supply on 5.5 x 2.1 mm barrel socket, negative polarity inside
- Current consumption: 80 mA
- Operates with optional 9 V DC power supply not supplied - suitable power supply 409939
- Buffered bypass
- Dimensions (L x D x H): 100 x 140 x 56 mm
- Weight: 535g
- Made in Greece
