Earthquaker Wave Transformer Eurorack
- Leer reseñas (0)
- Productos similares
- Envío gratis
- Precios bajos garantizados
- Satisfecho o rembolsado
- Garantía 3 años
- Ref : 109632
Stock Internet
1 pieza disponible.
entregable en 24 horas
Stock en tienda
No disponible en tienda
La marca Earthquaker
Conoce más sobre la marca Earthquaker y descubre todo el catálogo.
Guía de compra de efectos de bajo
¿Cómo navega a través de la profusión de pedales de efectos disponibles en el mercado? Star's Music hace balance, ¡sigue esta guía de compra!
Póngase en contacto con un experto
Nuestros teleconsultores músicos y entusiastas están aquí para responder todas sus preguntas.
Pedalera multiefectos para guitarra eléctrica

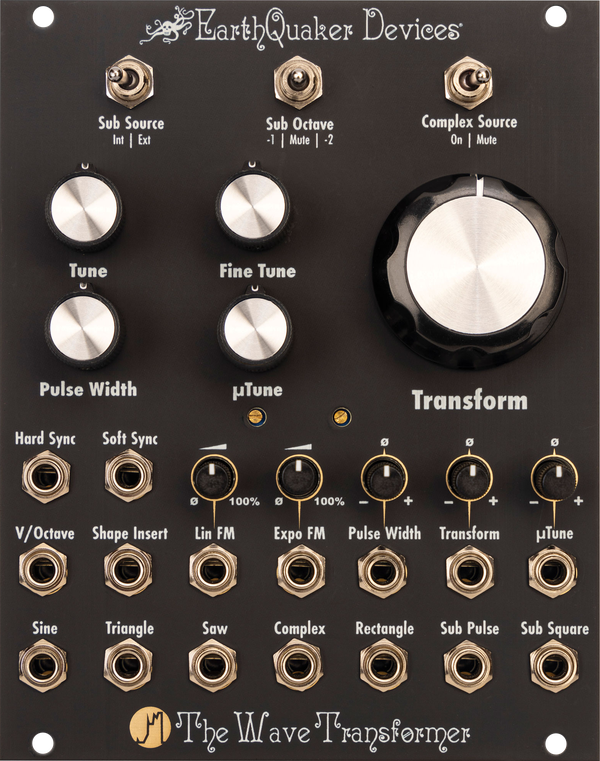

The Wave Transformer is a complex single oscillator with 7 audio outputs. Its method of wave shaping differs from other complex oscillators in that it is not based upon classic wave folding such as is common in West Coast synthesis, or filtration such as is common in East Coast synthesis. Rotating the Transform control will vary the Complex output from a simple waveform to a complex, gnarled mass of audio mutations.
Lire la suite
Ficha técnica
- 100% Analogue Circuit
- Over 8 octaves of pitch tracking starting from A-1 (13.75Hz), covering more than the full range of a traditional piano keyboard
- 7 simultaneous waveform outputs.
- Dedicated attenuators/attenu-verters for each CV input
- Exponential and Linear Frequency Modulation inputs.
- Hard and soft sync inputs
- Pulse width control between 0% and 100%.
- Fixed -1 octave 25% duty cycle suboctave pulse output
- Sub Square output switchable between 1 and 2 octaves down
- Complex Source Mute switch allows simultaneous control of volume and timbre up to audio rates via the Transform CV input.
- Lifetime warranty
- Dimensions: 20HP / Max Depth: 1" /25.4 mm
- Current Draw: 90 mA max from the +12v rail, 90 mA max from the -12v rail
- Standard 10-pin Eurorack power connector with a marking to notate the negative pins
- Reverse Voltage Protection
- Over-current protection on all outputs
- Skiff friendly – protrudes less than 1" (25.4 mm) behind the panel with the power header installed
