Altavoz activo

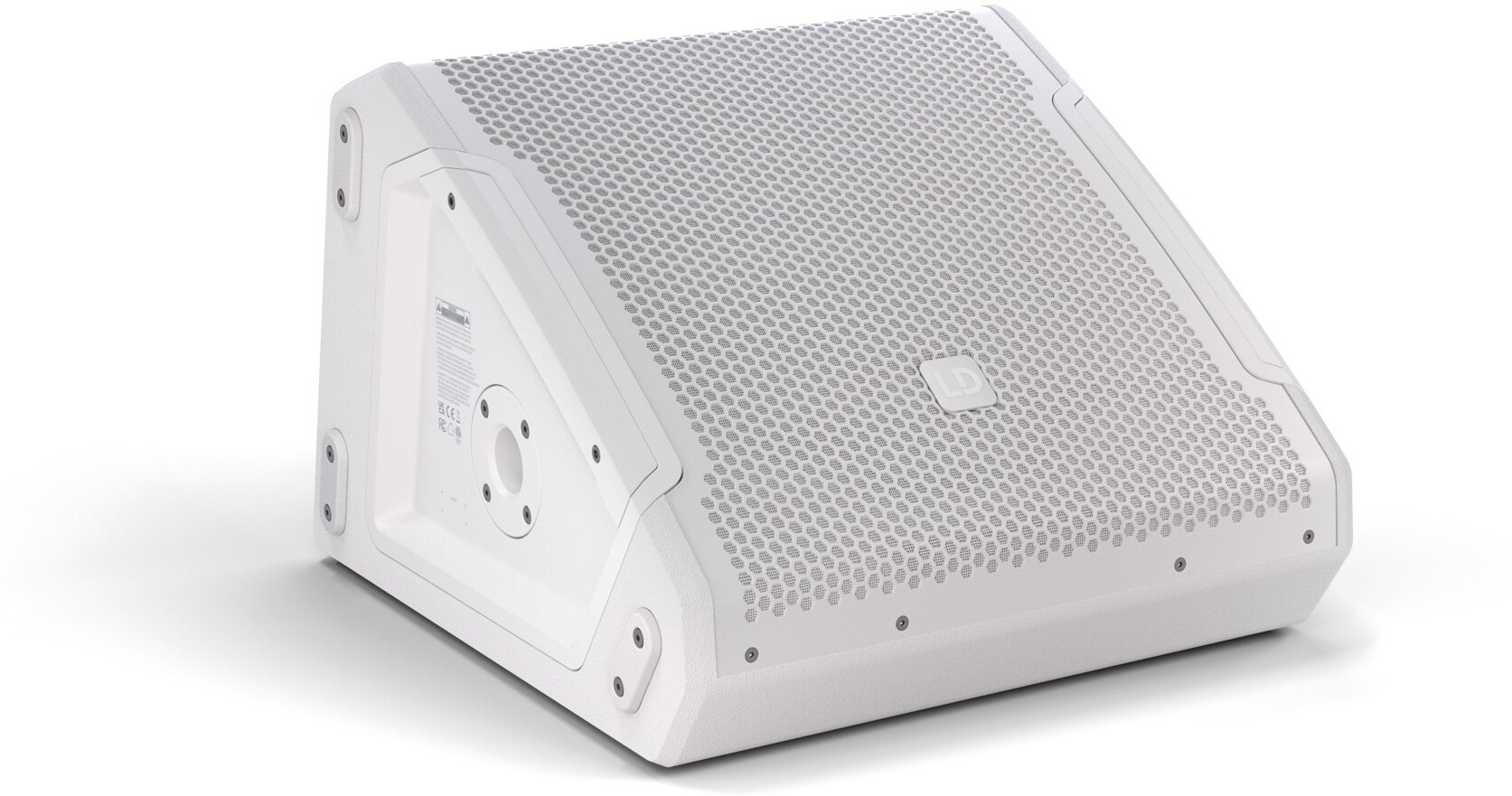

The MON 12 A G3 W is part of an entirely new family of high-performance powered stage monitors.

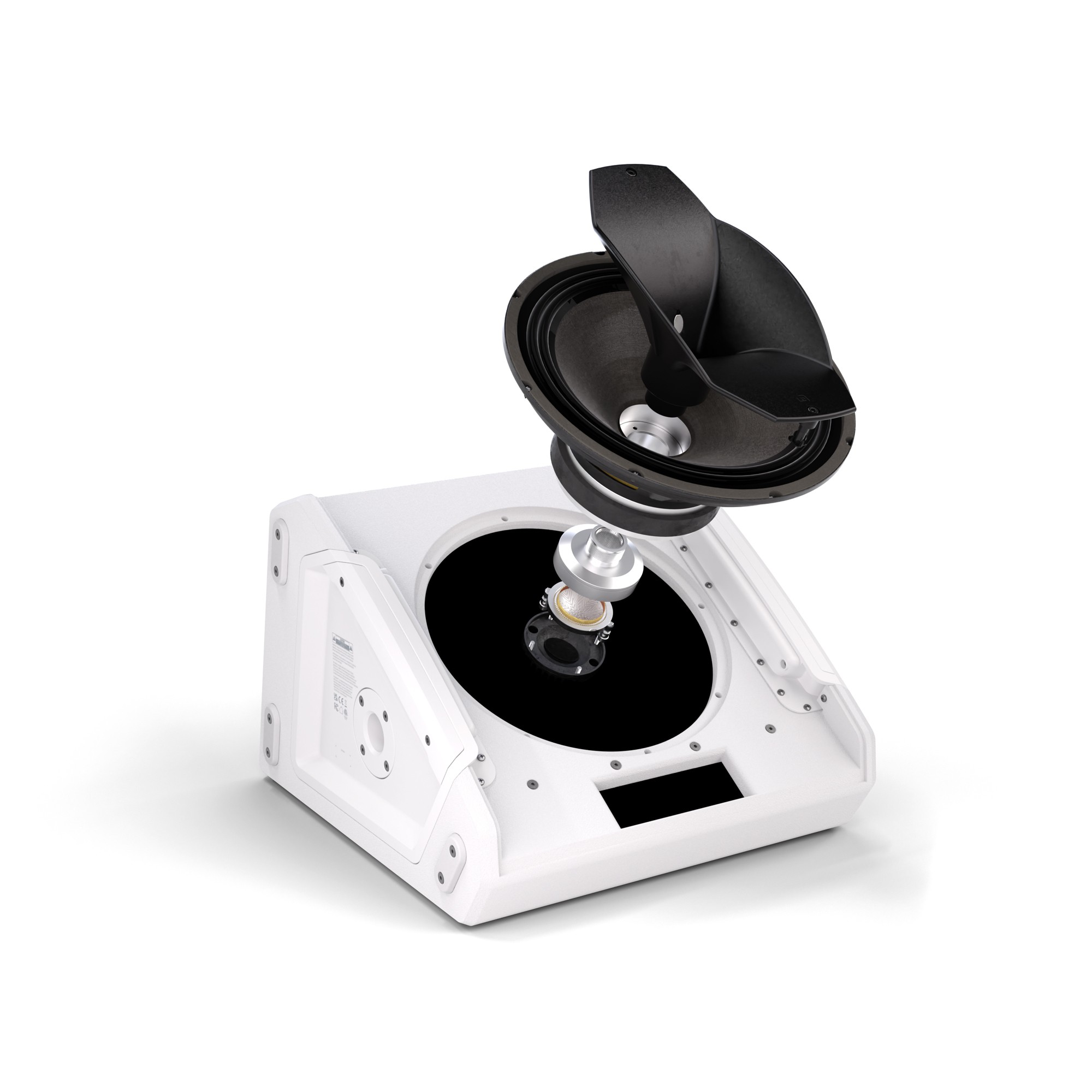

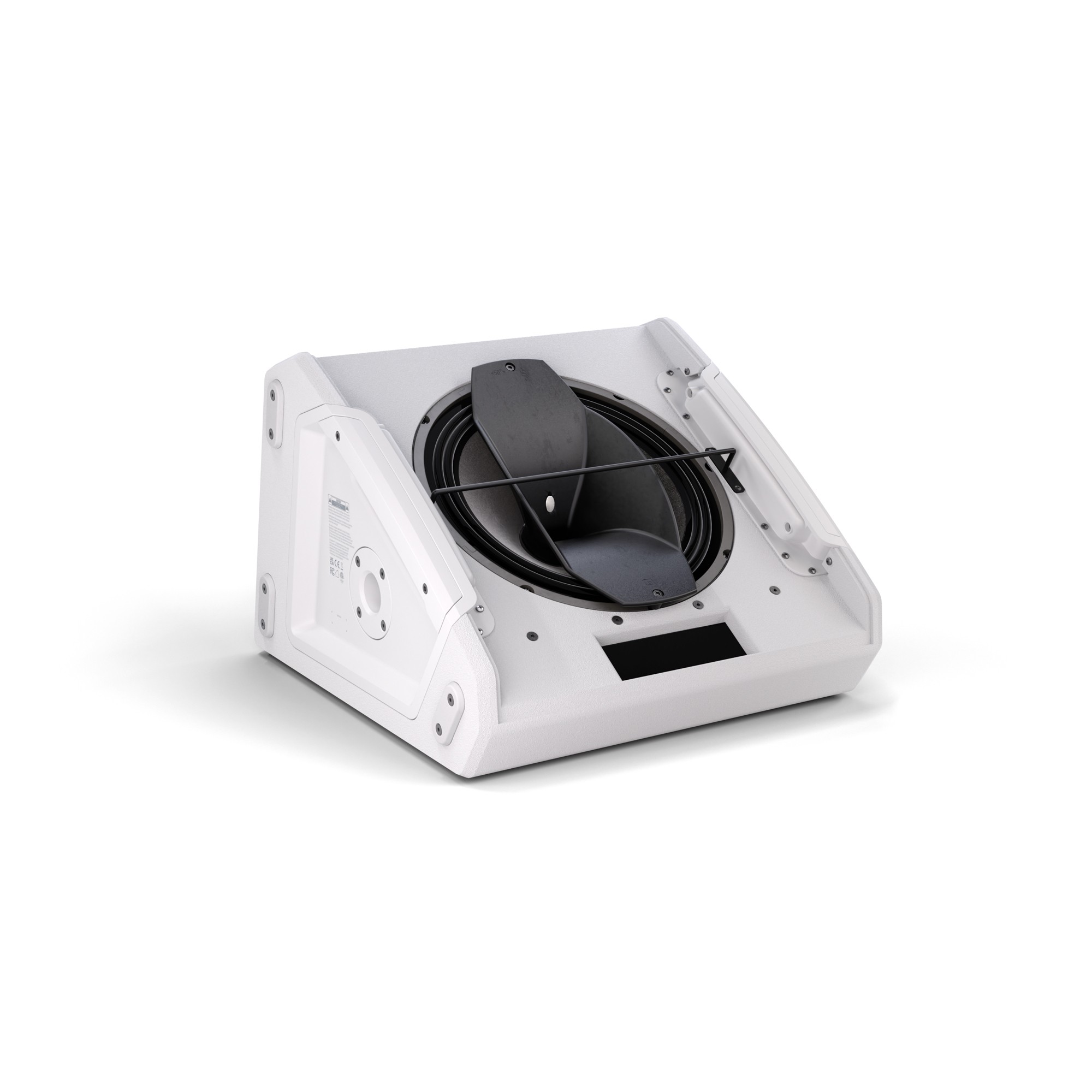

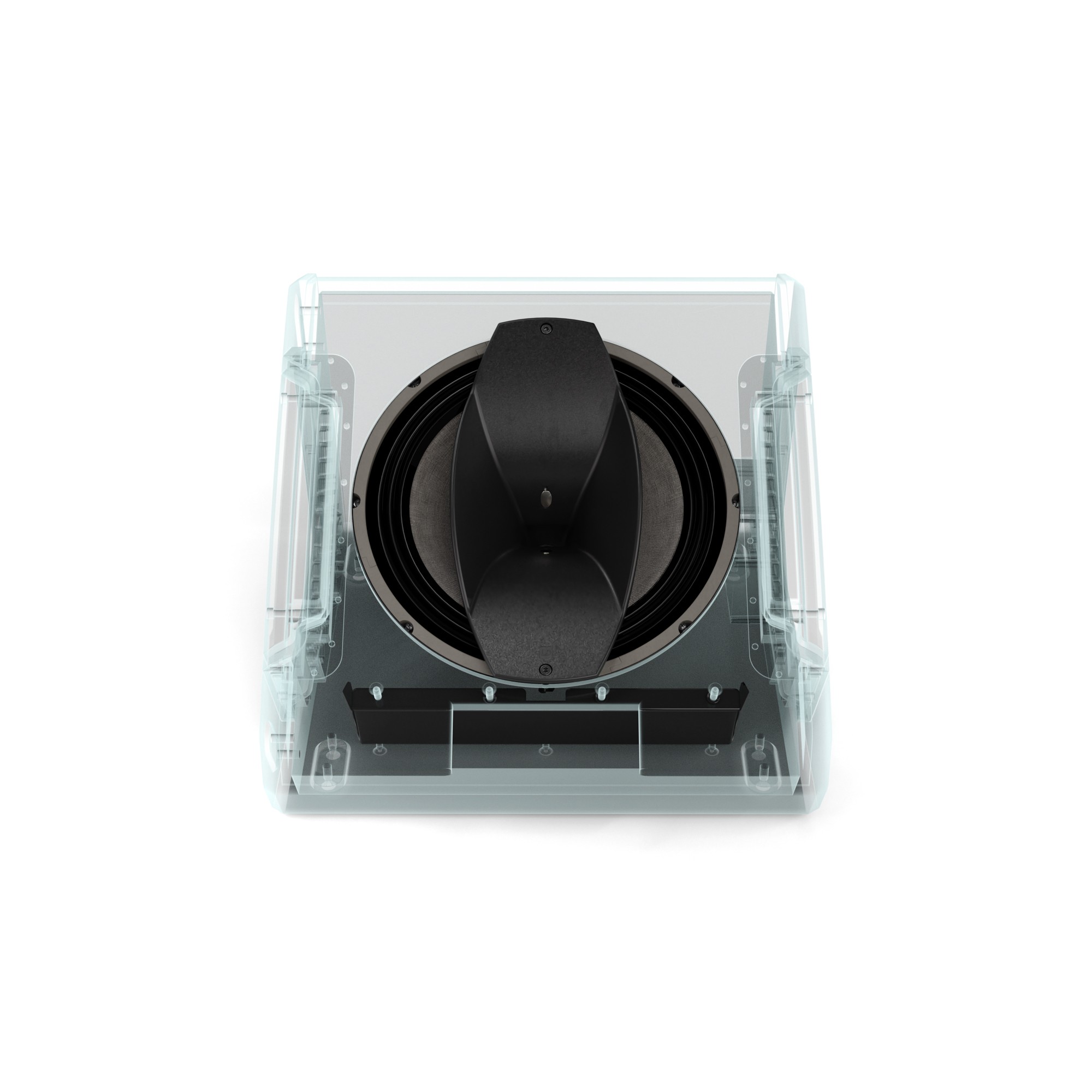

The MON G3 series takes the cutting-edge technology and uncompromising materials found in high-end rental monitors typically used by professionals and makes this quality available to everyone. For example, the advanced coaxial drivers with a 50° x 90° constant directivity horn are a true point source, an acoustically ideal solution that guarantees exceptional audio performance even in close listening situations. In addition, the series offers a high level of robustness, a comprehensive feature set and the elegant look of LD systems.

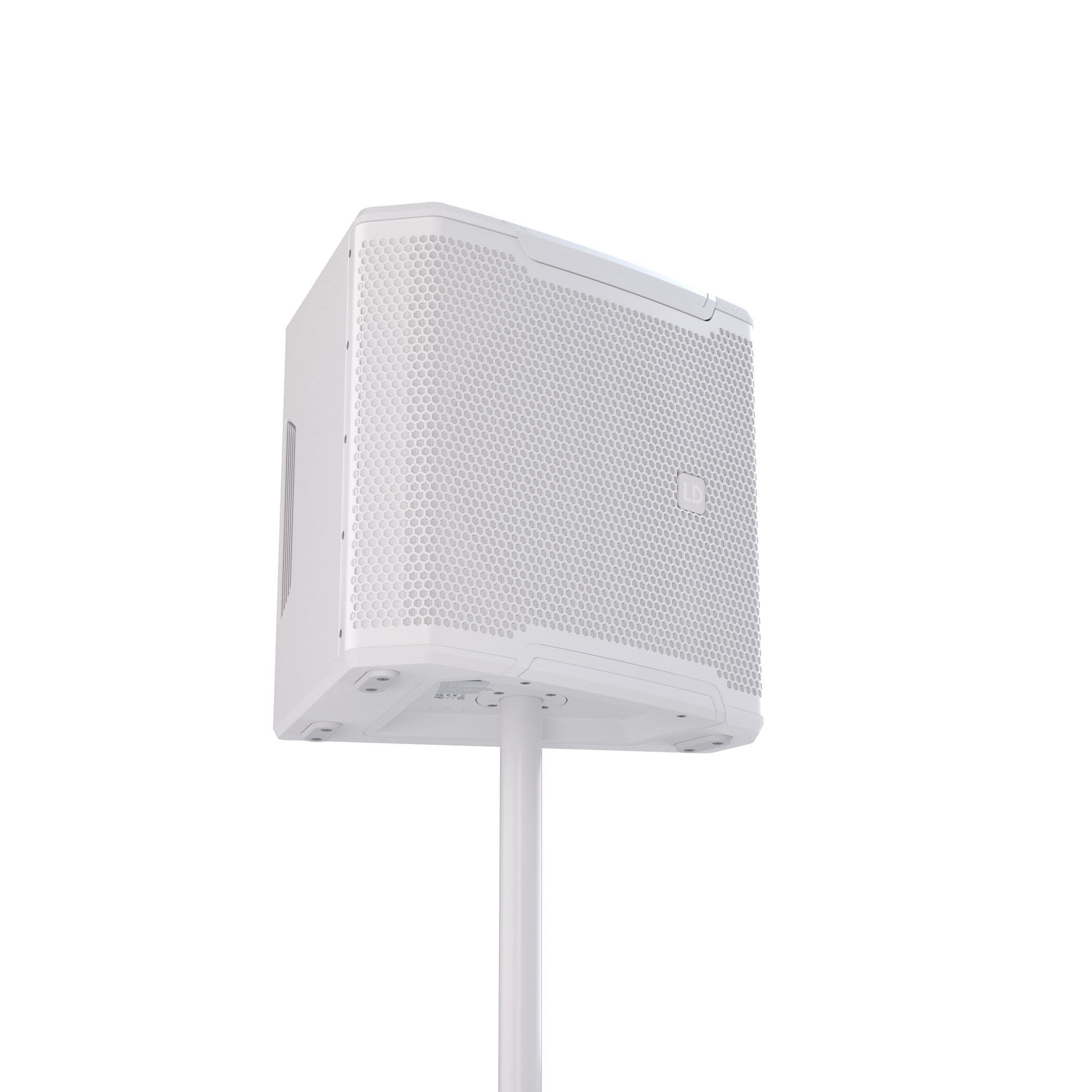

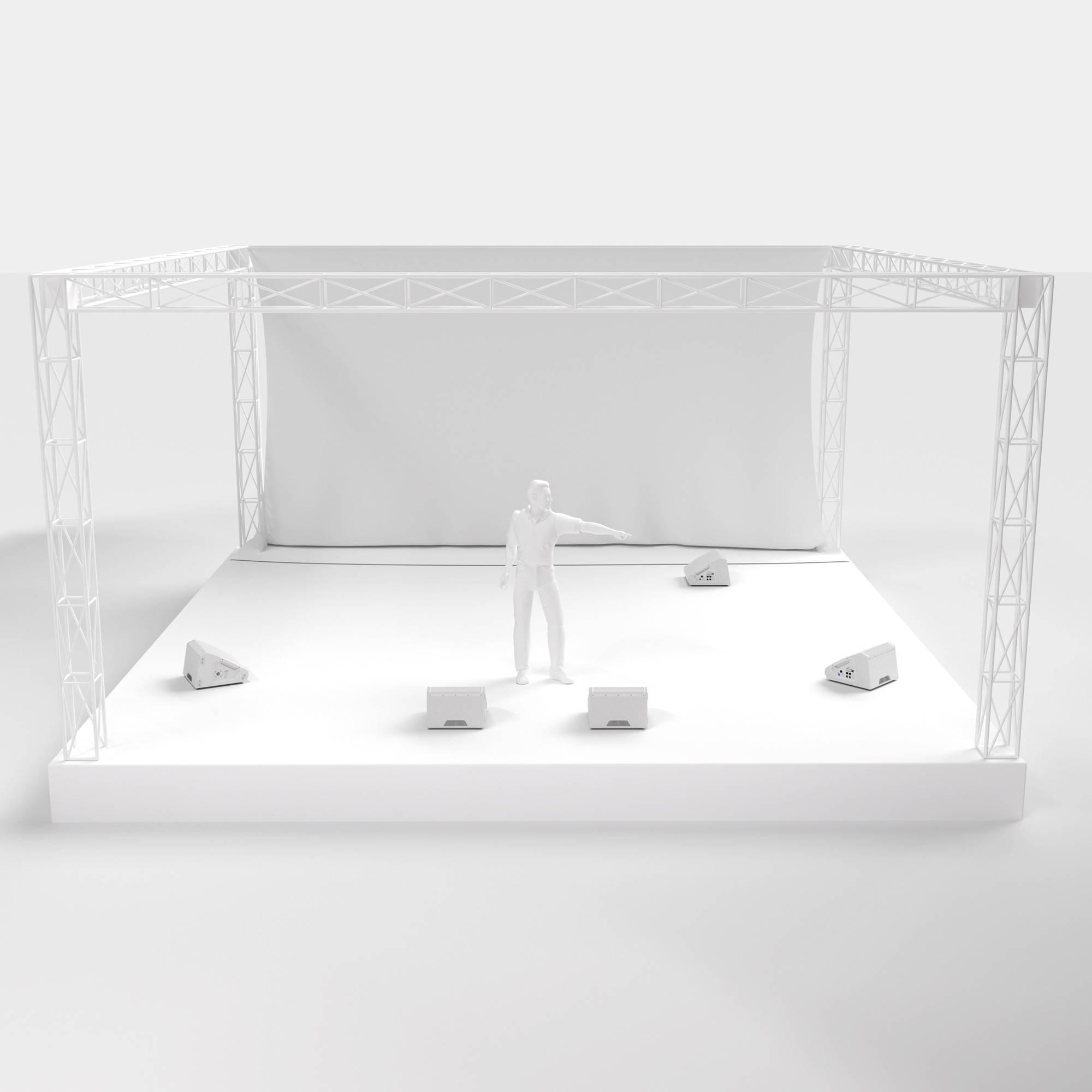

For decades, 12"/1" stage monitors have set the standard for sound quality, sound pressure level and portability. With its coaxial design, intelligent electronics and professional appearance, the MON 12 A G3 W brings this concept into the "modern era". The ideal dispersion of 50° x 90° (stage monitor use) or 90° x 50° (front of house use) makes it a versatile tool that is always the right solution for many different tasks.

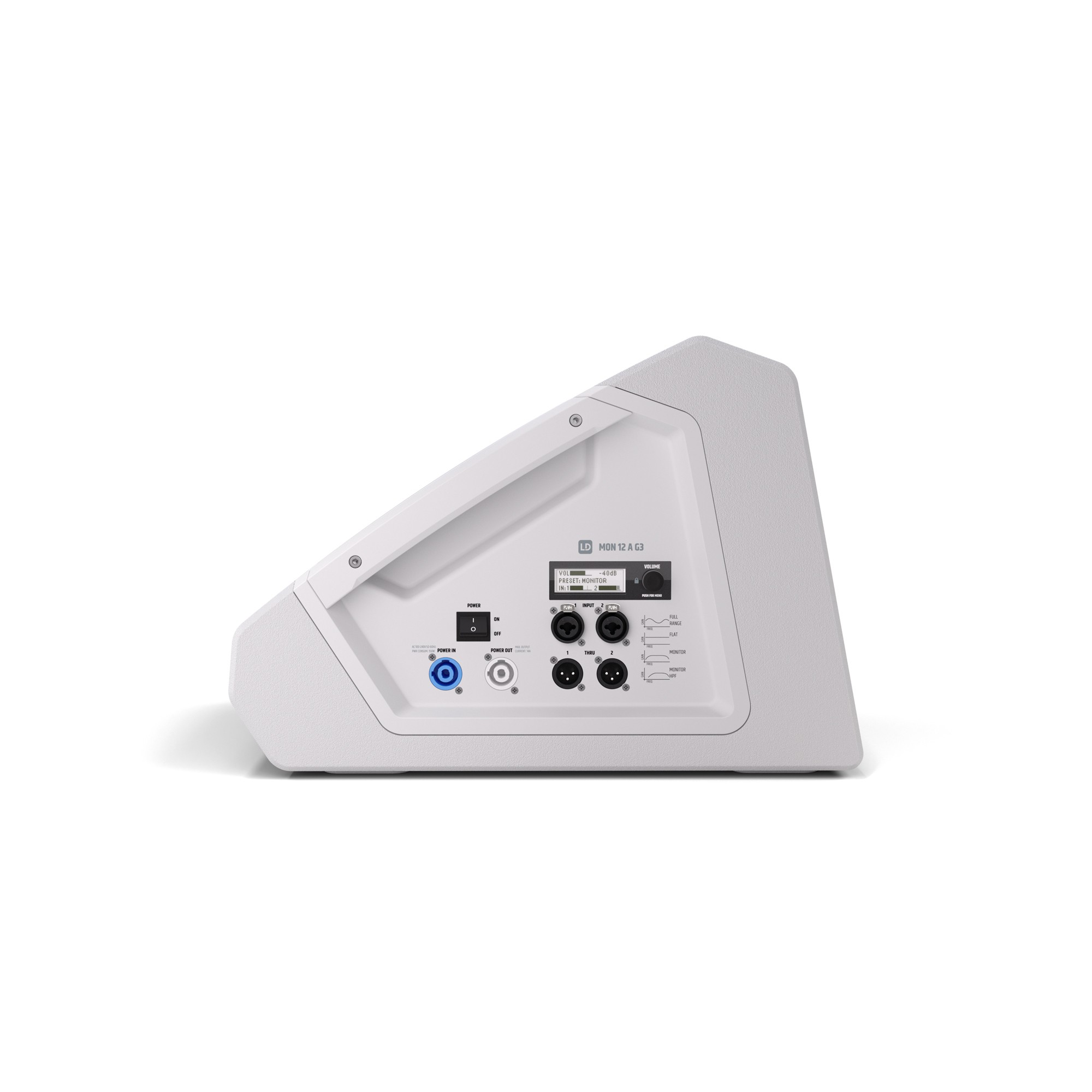

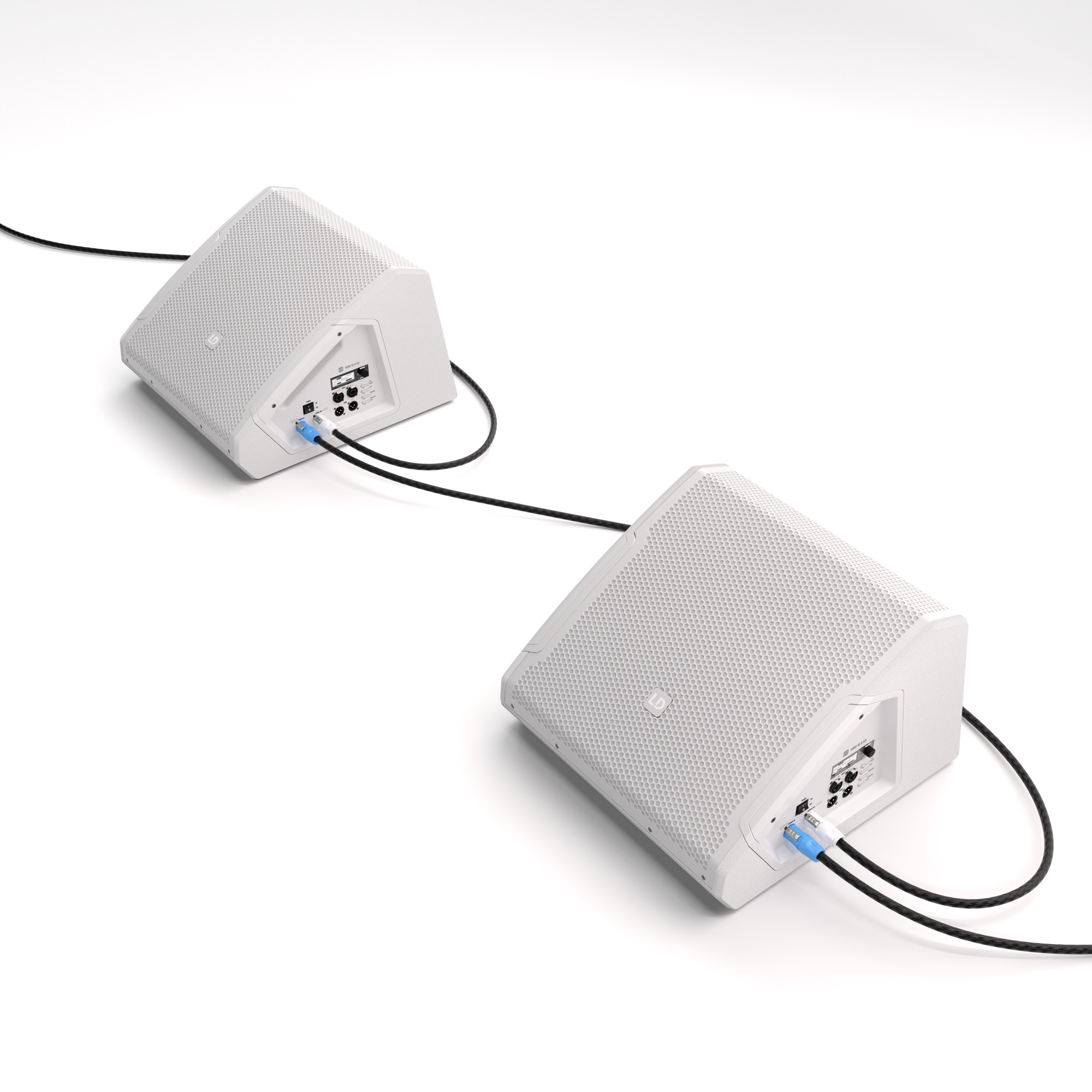

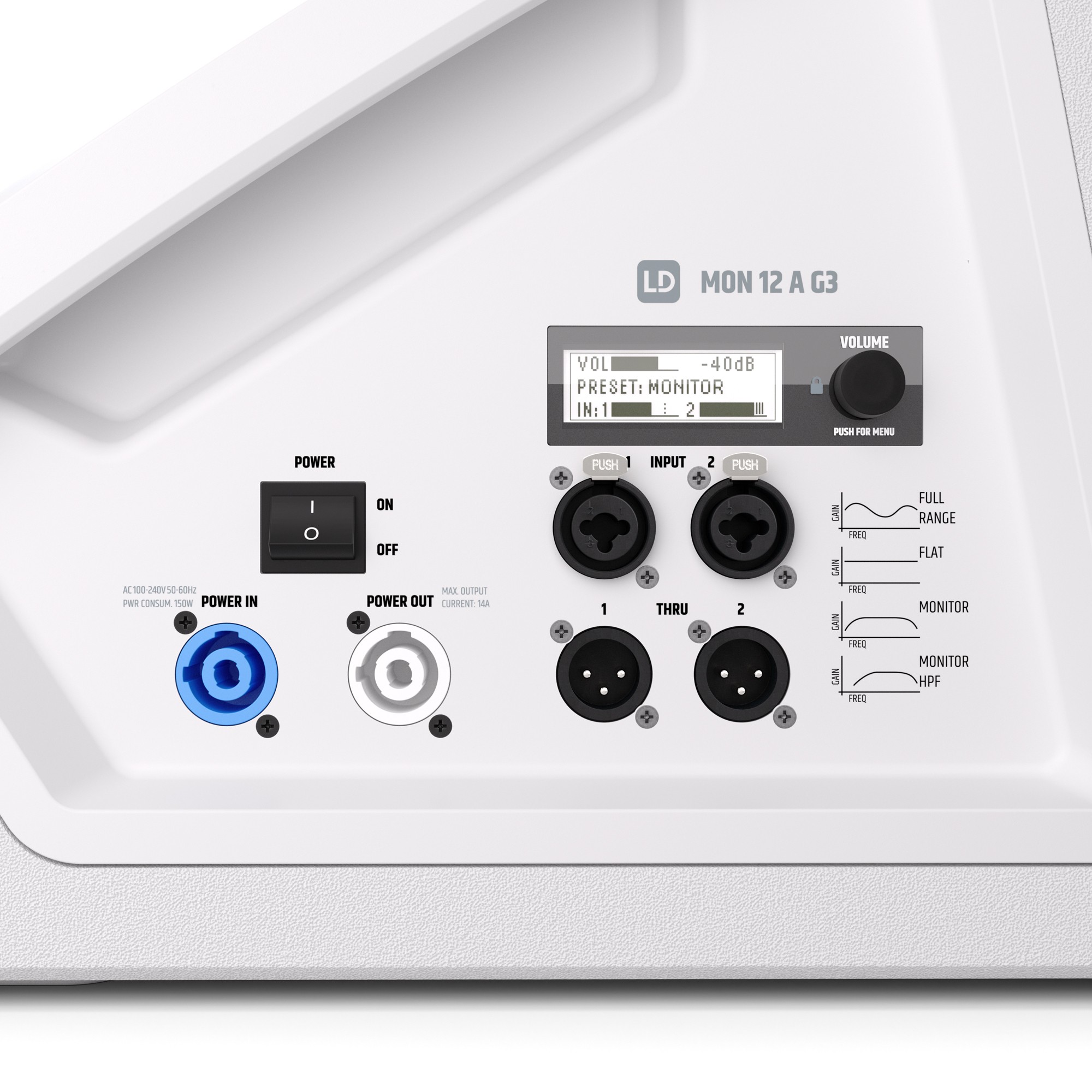

Loopback connectors are available for the input audio signal (Combo connector, XLR/jack) and the mains power supply (powerCON socket). This allows for elegant and tidy cabling in multi-monitor or sound distribution installations.
The MON G3 series takes the cutting-edge technology and uncompromising materials found in high-end rental monitors typically used by professionals and makes this quality available to everyone. For example, the advanced coaxial drivers with a 50° x 90° constant directivity horn are a true point source, an acoustically ideal solution that guarantees exceptional audio performance even in close listening situations. In addition, the series offers a high level of robustness, a comprehensive feature set and the elegant look of LD systems.
For decades, 12"/1" stage monitors have set the standard for sound quality, sound pressure level and portability. With its coaxial design, intelligent electronics and professional appearance, the MON 12 A G3 W brings this concept into the "modern era". The ideal dispersion of 50° x 90° (stage monitor use) or 90° x 50° (front of house use) makes it a versatile tool that is always the right solution for many different tasks.
Loopback connectors are available for the input audio signal (Combo connector, XLR/jack) and the mains power supply (powerCON socket). This allows for elegant and tidy cabling in multi-monitor or sound distribution installations.
Lire la suite
Ficha técnica
- Potencia de altavoz de sonorización De 1001 a 1500 watts RMS
- Tipo de altavoces Monitor de escenario
- Tipo de producto
- Monitor de escenario
- Tipo
- Activo
- Color
- Blanco
- Potencia del sistema
- Eficacia : 300 W
- Pico : 1200 W
- SPL máx.
- Media (ráfaga sinusoidal): 120 dB (100 Hz - 12 kHz, espacio completo, 1 m, 10% THD)
- Pico (ráfaga sinusoidal): 127 dB (espacio completo, 1 m, 10% THD)
- Respuesta en frecuencia
- -3 dB: 68 Hz - 18 kHz
- -10 dB: 55 Hz - 20 kHz
- Frecuencia de cruce
- 1400 Hz
- Ángulo del monitor
- 33°
- Dispersión (H x V)
- 50° x 90°
- Dimensiones
- Anchura: 425 mm
- Profundidad: 453 mm
- Altura : 315 mm
- Peso
- 17,4 kg
- Características
- 4 preajustes de aplicación
- Línea de retardo
- Ecualizador de 3 bandas (agudos, medios, graves)
- Filtro Notch
- Altavoces
- Boomer / Medios: Diámetro: 12" (304,8 mm), Imán : Ferrita, Marca: Custom, Tipo: Coaxial, Bobina: 2,5" (65 mm)
- Tweeter: Diámetro: 1" (25,4 mm), Imán: Ferrita, Marca: Custom, Bobina: 1,75" (44,45 mm)
- Construcción y materiales
- Tipo de caja: Bass Reflex
- Materiales: contrachapado de abedul de 15 mm, MDF de 15 mm
- Módulo amplificador integrado
- Tipo de amplificador: Clase D
- Circuitos de protección: Limitador multibanda, Protección contra sobrecarga, sobretemperatura y sobretensión
- Consumo: 150 W
- Tensión de red: 100 - 240 V (50-60 Hz)
- Fuente de alimentación: SMPS (compatible con PowerCON)
- Fusible: T4AL 250 V
- Temperatura de funcionamiento: 0 a 40°C
- Humedad: < 80% (sin condensación)
- Conexiones
- Entradas de línea: 2 (jack 6,35 mm, XLR combo)
- Paso de línea: 2 (XLR)
- Controles e indicadores
- Ajustes: Codificador giratorio/pulsador
- Interruptor de encendido/apagado
- Indicadores: Display LC
