Cabeza móvil

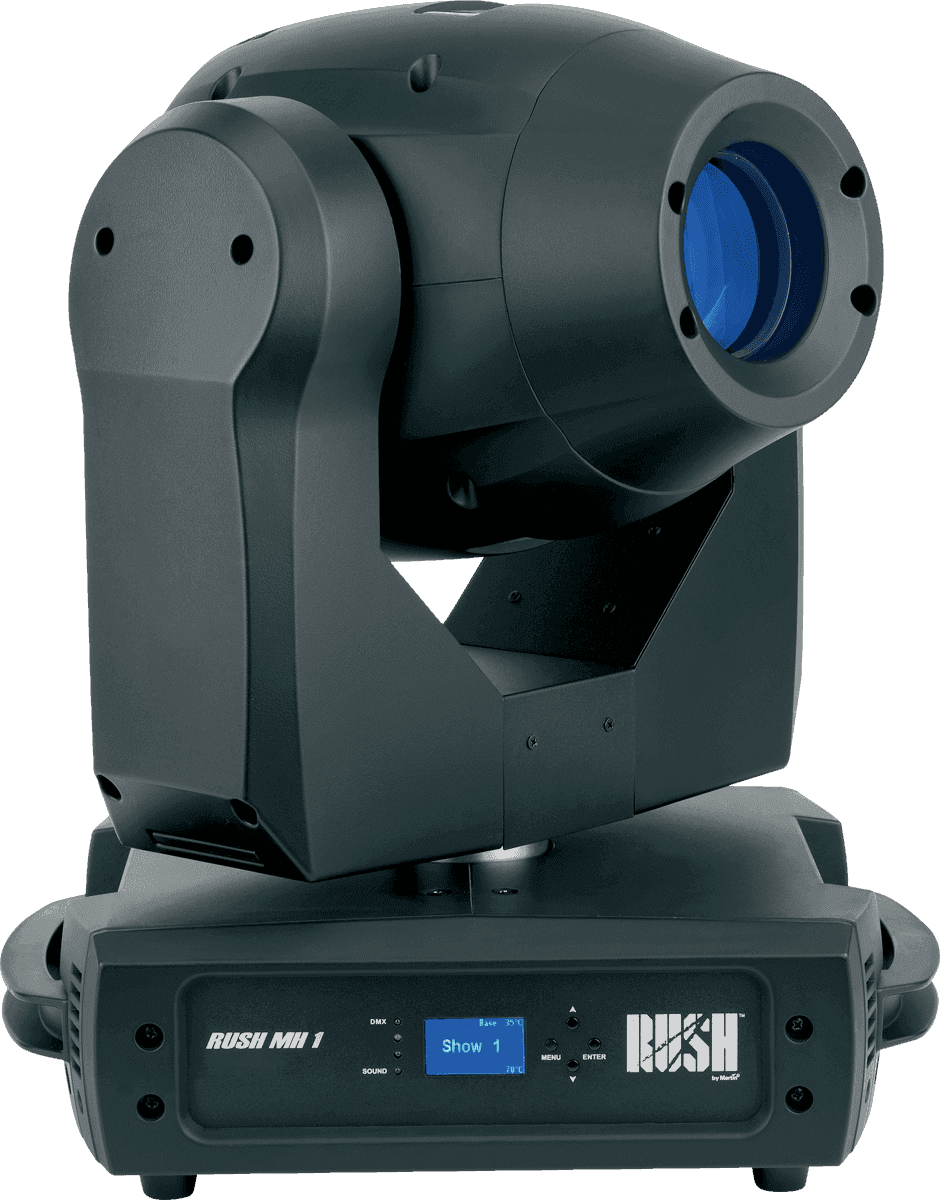

This super bright LED profile moving head is even brighter than its predecessor RUSH MH 1 Profile with 50% more output. Efficient optics with an increased beam angle from 13 degrees to 16 degrees punches out a variety of effects and colors from two gobo wheels and two color wheels. For added versatility and effect, it also houses an electronic dimmer and strobe, iris and 3-facet prism and an improved cooling system for quieter operation.
50 % increase in lumen output
16 degree beam angle
Regulated fan control for quiet operation
50 % increase in lumen output
16 degree beam angle
Regulated fan control for quiet operation
Lire la suite
Ficha técnica
- Compatible DMX Sí
- Specifications
- Physical
- Dimensions: 418 x 588 x 328 mm
- Weight: 18 kg
- Dynamic effects
- Color wheel 1: 7 colors + white, rotation at programmable speed and direction
- Color wheel 2: 7 colors + white, incl. 1 x UV, 2 x CTC, rotation at programmable speed and direction
- Rotating gobo wheel: 7 gobos + empty slot, wheel rotation, indexing, rotation and oscillation of each gobo
- Fixed gobo wheel 8 gobos + empty slot, rotation and oscillation of the wheel
- Electronic shutter: Strobe, pulsations, dry black and dry full fire
- Prism: Indexing and rotation at programmable speed and direction
- Iris: motorized
- Focus: motorized
- Electronic dimming: 0 - 100%, 4 curves available
- Pan: 540°, fast + fine adjustment, programmable speed
- Tilt: 270°, fast + fine adjustment, programmable speed
- Control and Programming
- Control options: DMX, standalone mode
- DMX channels: 17
- Synchronization of the autonomous mode: Music or automatic
- Autonomous mode sequences: 4 pre-programmed animations
- Standalone mode capacity: 20 scenes
- Music mode sensitivity: Adjustable
- Addressing and configuration: Backlit LCD display
- DMX standard: USITT DMX512/1990
- Optics and Photometry
- Light source: LED, 1 matrix of 180 W
- Minimum service life: 20,000 h (flow >70% initial flow)*
- *Figures obtained after testing under manufacturer conditions
- Construction
- Color: Black
- Construction: Impact-resistant flame-resistant thermoplastic
- Protection class: IP 20
- Gobos
- Gobo diameter: 26.8 mm +/- 0.2 mm
- Maximum image diameter: 22.0 mm
- Thickness: 0.3 - 3.5 mm
- Materials: Steel, aluminium or borosilicate glass
- Installation
- Fixing points: 2 subbases ¼ of tower for hooks
- Placement: Dry areas only, must be firmly attached (surface or structure)
- Orientation: All
- Connections
- Power supply, mains: Neutrik PowerCon
- Copy, sector: Neutrik PowerCon
- DMX signal, input / output: XLR 3 and 5 pin lockable
- Electricity
- Mains: 100-240 V nominal, 50/60 Hz
- Power consumption: 300 W
- Fuse: T 6.3 A
- Power supply module: Electronic, switching, self-adaptive
- Power and Typical Currents
- 100 V, 60 Hz : 26.3 A, 274 W, PF 0.942
- 230 V, 50 Hz : 13.4 A, 268 W, PF 0.870
- Measurements made at nominal voltage, all LEDs at full current. Consider a variation of +/-10%.
- Thermal Data
- Cooling : Forced air, temperature-controlled
- Maximum ambient temperature (Ta max): 40° C
- Minimum ambient temperature (Ta min): 0°C
- Total dissipation*: 1010 BTU/h
- *Calculated, +/- 10%, at full intensity, white
- Approvals
- EU Safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
- CEM EU: IN 55015, IN 55103-1, IN 55103-1, IN 55103-2, IN 61000-3-2, IN 61000-3-3-3, IN 61547
- Supplied accessories
- Power cable, 0.75 mm² / 18 AWG, 15 m, 6 A, UL approved - H05VV-F, without plug
- 2 Omega bases with studs ¼ of tower for fixing collars
- Accessories Accessories
- 16A power supply cables for cascade power supply
- Power cable, 14 AWG, Type SJT, 1.5mm² HO5VV-F, 3 m with PowerCon P/N connector 11541508
- Mains copy cable, 14 AWG, Type SJT, 1.5mm² HO5VV-F, 1.4 m with PowerCon P/N connector 11541509
- Mains copy cable, 14 AWG, Type SJT, 1.5mm² HO5VV-F, 2.25 m with PowerCon P/N connector 11541510
- Power supply cable, 14 AWG, Type SJT, 1.5mm² HO5VV-F, 3.25 ma with PowerCon P/N connector 11541511
- Power supply connectors
- Neutrik PowerCon NAC3FCA Neutrik PowerCon connector for cable mounting, power supply, blue P/N 05342804
- Neutrik PowerCon NAC3FCB Neutrik PowerCon connector cable mount, power output, grey P/N 05342805
