Interface de audio usb

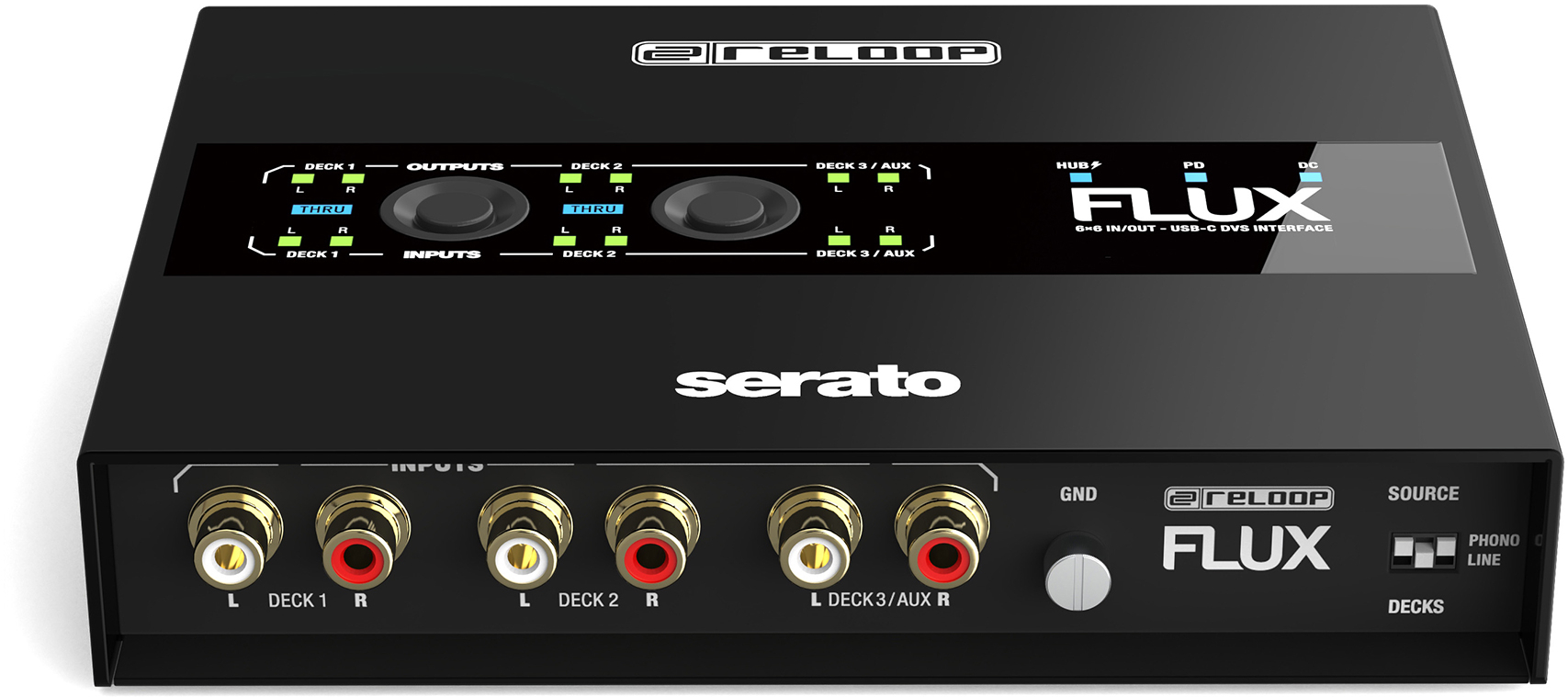

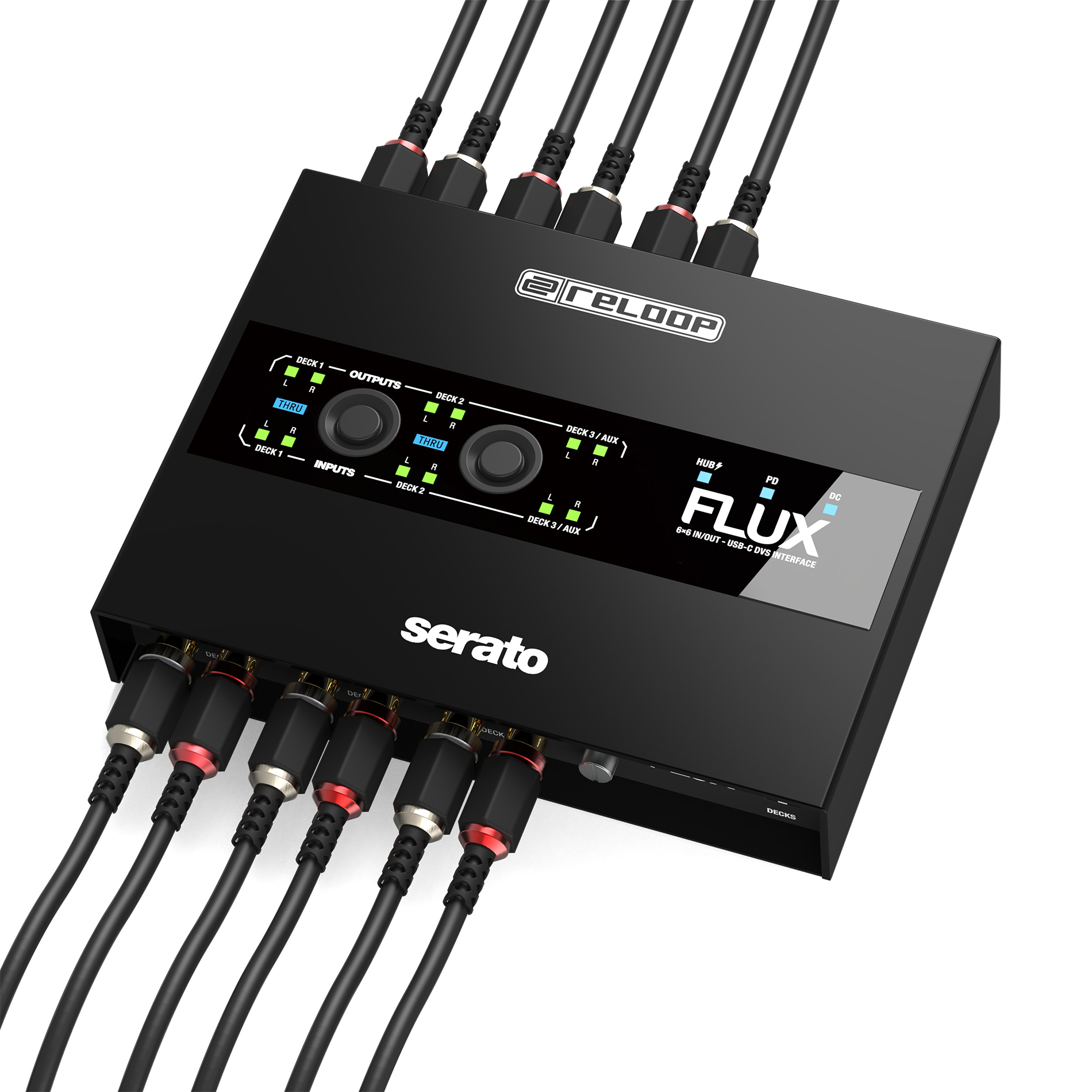

The Reloop FLux is a USB-C audio interface.

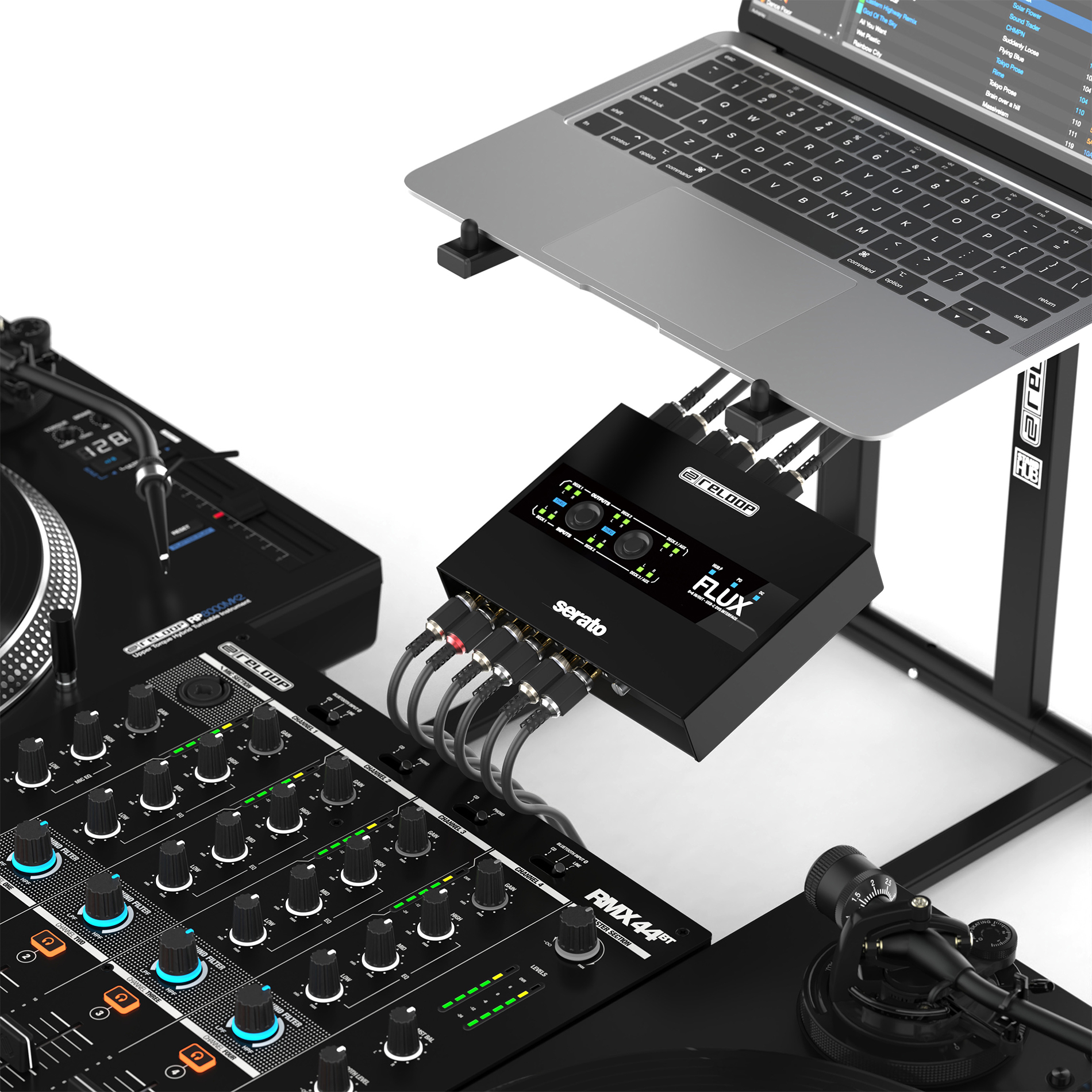

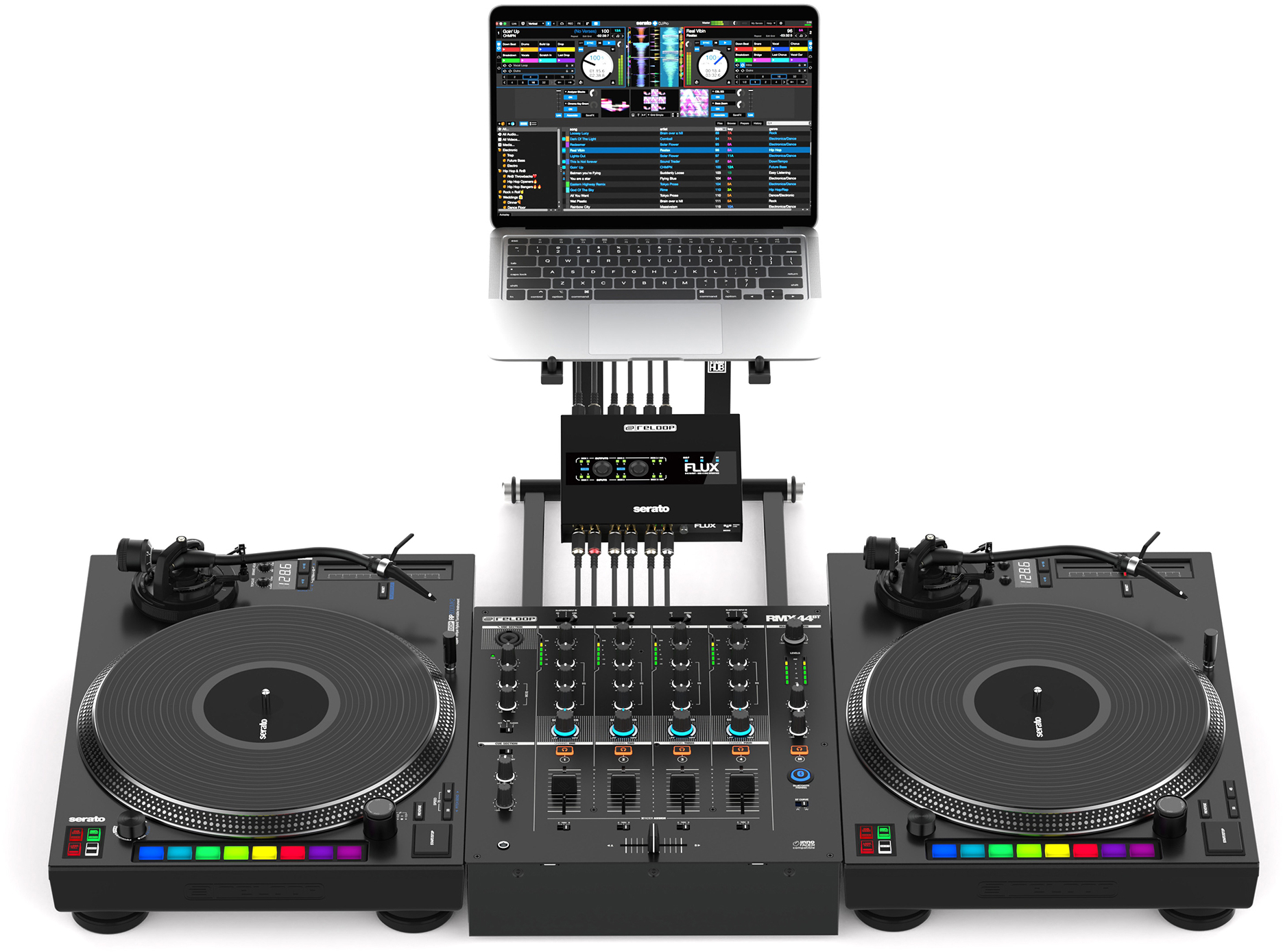

The interface offers superior audio qualities, a well thought-out operating concept and a club-ready design. It can turn any conventional mixer into a professional digital vinyl system. Three stereo inputs give DJs maximum flexibility. Turntables, CDJs and the like can be used in any combination. Parameters are adjusted using discrete DIP switches, virtually eliminating the risk of accidental switching in the club.

Ficha técnica

DSP No

3-channel (6x6 I/O) USB-C DVS interface for Serato DJ Pro
Unlocks the full version of Serato DJ Pro and Serato DVS
24-bit studio quality sound card with crystal clear sound and ultra-low latency response
Supports up to 96 kHz with high-quality D/A converters for superior audio processing
Also works as a stand-alone studio interface for audio recording and playback

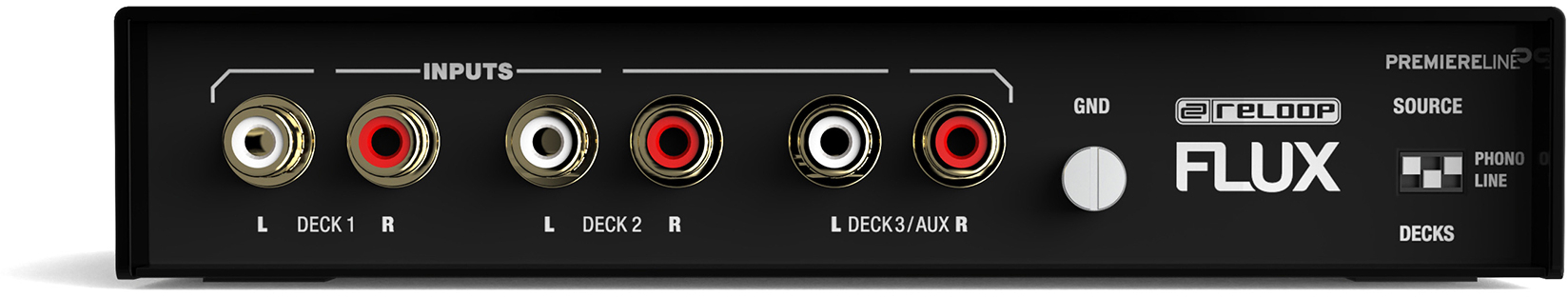

3x inputs for turntables, CD players or AUX-IN for live power signal, switchable in any combination via dedicated DIP switches
Dedicated GND terminal for turntable grounding
Gold-plated, corrosion-resistant audio connections

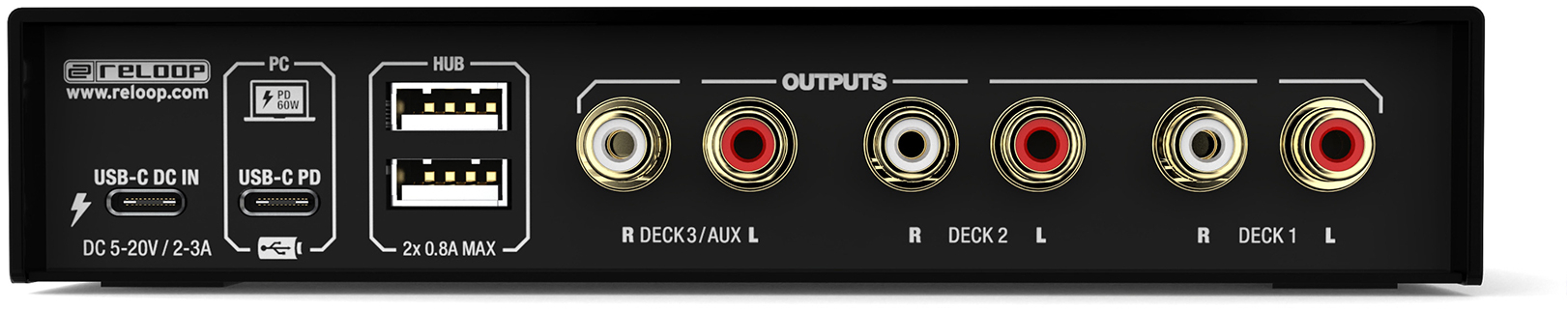

3x line outputs, including AUX-OUT, assignable to the sampler
Easy and accessible direct buttons for analog deck playback
Optional USB-C DC input port for external power supply
Power support for USB-C devices (max 60 W)
Signal flow LEDs for all inputs and outputs (L/R) and throughout indication for clear visibility
Power LED on top panel for connection status (Hub, PD, DC)
2-port USB-A hub to connect other accessories
Supports use of Serato NoiseMap™ control vinyl (not included) or custom control signal WAV file for use via CDs or USB stick (download available) with no additional license purchase required
Power:
Recommended power: 2 A or more / minimum power: 400 mA
Maximum USB-PD throughput: 60 W
Maximum USB hub power output: 2 x 0.8 A = 8 W
External USB power supply (type A or C) supported: 5 V/1 A - 20 V/3 A
Power priority: Self-powered FLUX -> USB hub -> PD (to PC)
Signal-to-noise ratio (1 kHz output reference level, +4 dB) :
Deck In (LINE signal input: 0 dBV): over 83 dB
Deck In (PHONO signal input: -32 dBV): Over 73 dB
THD + N :
LINE signal input: -4 dBV at 1 K / Less than 0.03 % (1 kHz, +0 dB)
PHONO signal input: -36 dBV at 1 K / Less than 0.05 % (1 kHz, +0 dB, inverse RIAA)
Maximum gain :
Deck In (LINE): +4 dB ± 2 dB
Deck In (PHONO): +36 dB ± 2 dB
Maximum input (1 kHz, THD=1%) :
Deck In (LINE): More than +7 dBV
Deck In (PHONO): More than -25 dBV
Maximum output (1 kHz, THD=1%) :
Deck Out: More than +11 dBV
USB :
USB audio interface with 24 bit/44.1 kHz, 48 kHz, 96 kHz
High-speed USB 2.0 (480 Mbps)
Class compliant on macOS
USB 3.0 Power Protocol
General :
Dimensions (W x D x H): 160 x 120 x 34 mm
Weight: 0.85 kg
Delivered with: 2x RCA audio cables, 1x USB-A to USB-C, 1x USB-C to USB-C, user manual
