Receptor inalámbrico

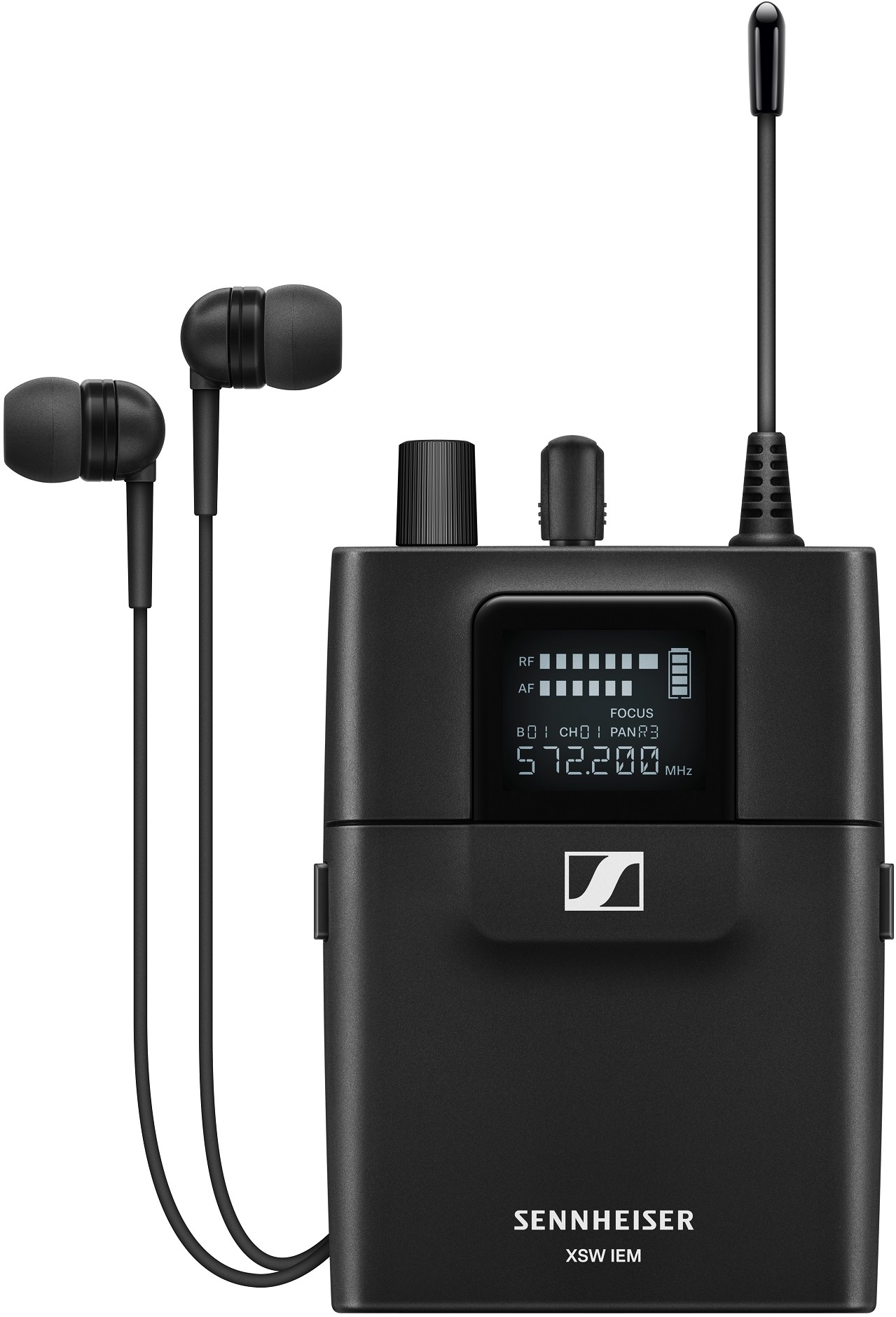

The XSW IEM EK is an ultra-lightweight, pocket-sized in-ear monitor for expanding existing XS Wireless IEM kit configurations.
With the XS Wireless IEM kit, you can easily combine additional receivers with a transmitter, providing a new level of detail to more band members.
level of detail to more members of the group.
When attached to clothing or your belt, the ultra-lightweight pocket receiver remains discreet. You can connect it to the supplied IE 4 headphones or the IE PRO series with the 3.5 mm output. The LED keeps an eye on battery and link status, while the front panel offers options for fine-tuning individual settings, from balance and focus modes to EQ and limiter.
Pocket-sized UHF receiver to expand existing XS Wireless IEM setups
- Ultra-lightweight pocket receiver with rear clip and
control panel ideal for the stage
- Standard 3.5 mm jack for the supplied IE 4
earphones or optional in-ear kits

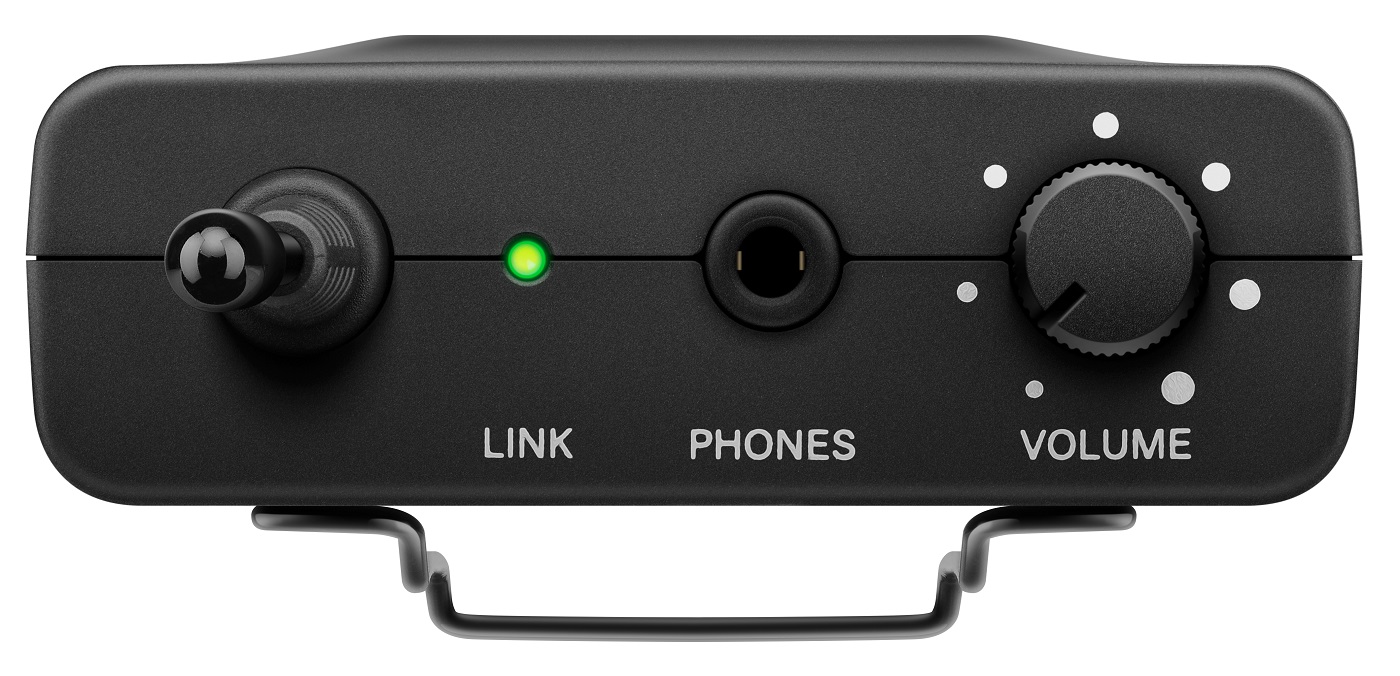

- Backlit front panel and LEDs to display battery and link status
- Menu-driven access to receiver audio settings
receiver audio settings such as focus modes, volume control, limiter and EQ
- Pan control for individual balancing of input
input channels
- Operation with two AA primary batteries or rechargeable
rechargeable batteries
With the XS Wireless IEM kit, you can easily combine additional receivers with a transmitter, providing a new level of detail to more band members.
level of detail to more members of the group.
When attached to clothing or your belt, the ultra-lightweight pocket receiver remains discreet. You can connect it to the supplied IE 4 headphones or the IE PRO series with the 3.5 mm output. The LED keeps an eye on battery and link status, while the front panel offers options for fine-tuning individual settings, from balance and focus modes to EQ and limiter.
Pocket-sized UHF receiver to expand existing XS Wireless IEM setups
- Ultra-lightweight pocket receiver with rear clip and
control panel ideal for the stage
- Standard 3.5 mm jack for the supplied IE 4
earphones or optional in-ear kits
- Backlit front panel and LEDs to display battery and link status
- Menu-driven access to receiver audio settings
receiver audio settings such as focus modes, volume control, limiter and EQ
- Pan control for individual balancing of input
input channels
- Operation with two AA primary batteries or rechargeable
rechargeable batteries
Lire la suite
Ficha técnica
- Frecuencia HF Búsqueda automática
- Transmisión numérica No
- XSW IEM EK Stereo Receiver
- High frequency features
- Wide band FM modulation
- Frequency range :
- 572 - 596 MHz
- Frequency band switching up to 24 MHz
- Normal/peak deviation ±15 kHz / ±24 kHz
- Squelch 10 µV, fixed
- Audio-frequency characteristics
- "Signal-to-noise ratio
- (1 mV, peak deviation)"
- ? 88 dB
- Total harmonic distortion
- (THD)
- ? 1 %
- AF output level at 3.5 mm 2 x 1.25 Veff at 16 Ω
- Treble boost (equalization)
- +10 dB at 13 kHz
- Limiter -10 dB
- AF frequency response 45 Hz to 15 kHz
- Crosstalk (50 Hz - 10 kHz) approx. 45 dB
- Global device
- Temperature range 0°C to +40°C
- Power supply 2 x AA, 1.5 V batteries
- Nominal voltage 3 V battery / 2.4 V rechargeable battery
- Operating time approx. 6 hours
- Dimensions approx. 95 x 70 x 26 mm
- Weight (including batteries) approx. 110 g

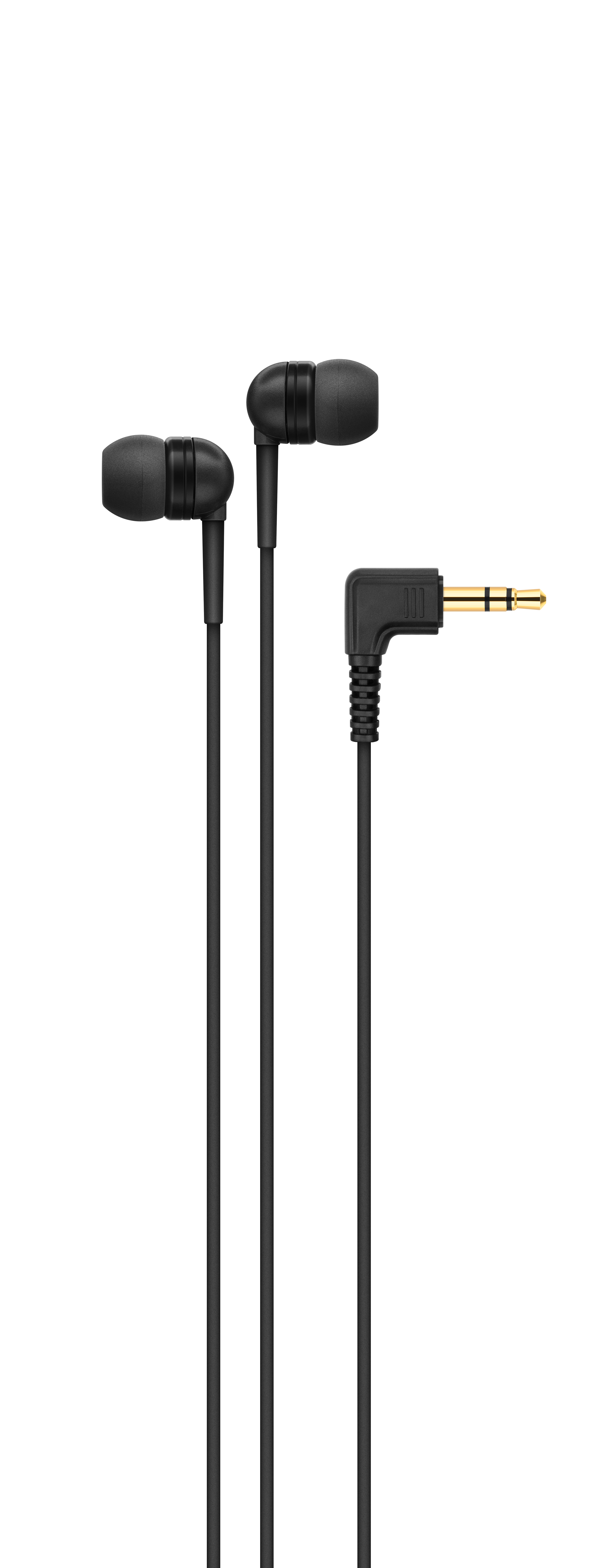

- IE 4 in-ear headphones
- Dynamic transducer
- Frequency response 40-20,000 Hz
- SPL (1 kHz, 1 mW) 106 dB
- Nominal impedance 6 Ω
- Cable length 1.4 m
- Plug 3.5 mm stereo plug
- (1/8"), gold-plated
- Temperature range -5°C to +50°C
