Sennheiser XSW IEM SR (B)
- Leer reseñas (0)
- Accesorios relacionados
- Productos similares
- Envío gratis
- Precios bajos garantizados
- Satisfecho o rembolsado
- Garantía 3 años
- Ref : 101739
Stock Internet
expedición entre 5 y 10 días
Stock en tienda
No disponible en tienda
La marca Sennheiser
Conoce más sobre la marca Sennheiser y descubre todo el catálogo.
La mayor red de tiendas de Francia
Encuentra toda la información sobre nuestras grandes superficies y nuestras boutiques especializadas.
Póngase en contacto con un experto
Nuestros teleconsultores músicos y entusiastas están aquí para responder todas sus preguntas.
Transmisor inalámbrico

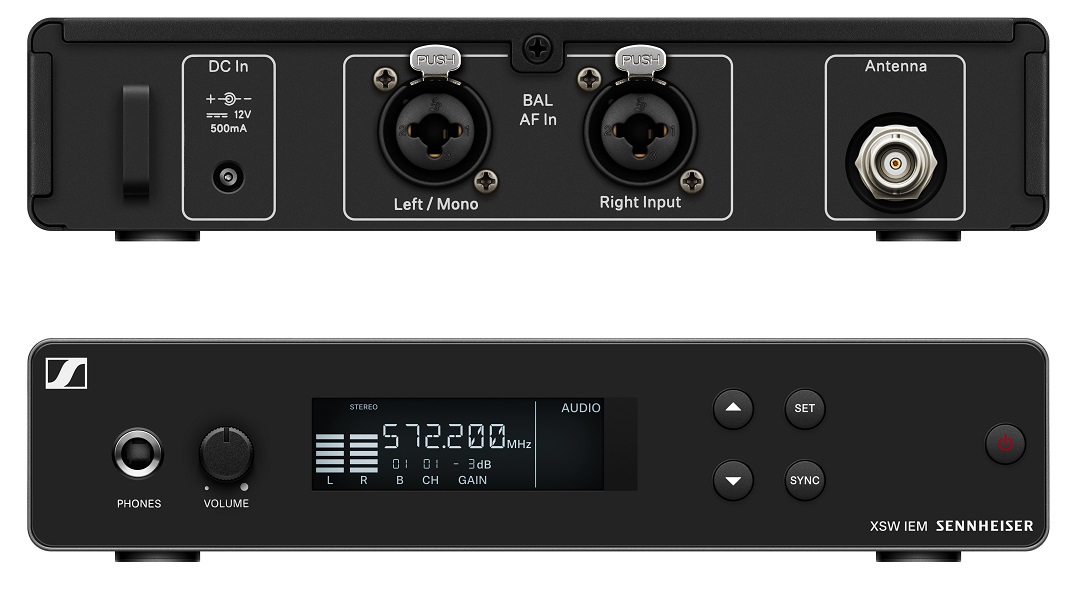

The Sennheiser XSW IEM SR is a stereo transmitter.
Single UHF stereo half-rack transmitter, robust metal housing - part of the XS Wireless IEM series. The XS Wireless IEM
transmitter has a durable metal housing and can be used as part of a rack-mounted system or as a stand-alone transmitter.
The clear, backlit menu allows for easy setup, even in dark scenes.
XLR combo inputs provide flexible cabling options.
You can connect anything with an XLR or 6.3 mm (1/4 inch) plug.
You can preview your mix locally through the front-panel headphone output.
Adjusting gain, mono or stereo options, input sensitivity or frequency channels takes only seconds thanks to a clear and simple menu.
seconds thanks to a clear and simple menu.
Mono stereo UHF transmitter for XS Wireless IEM systems
Rugged metal housing in a standard half-rack format

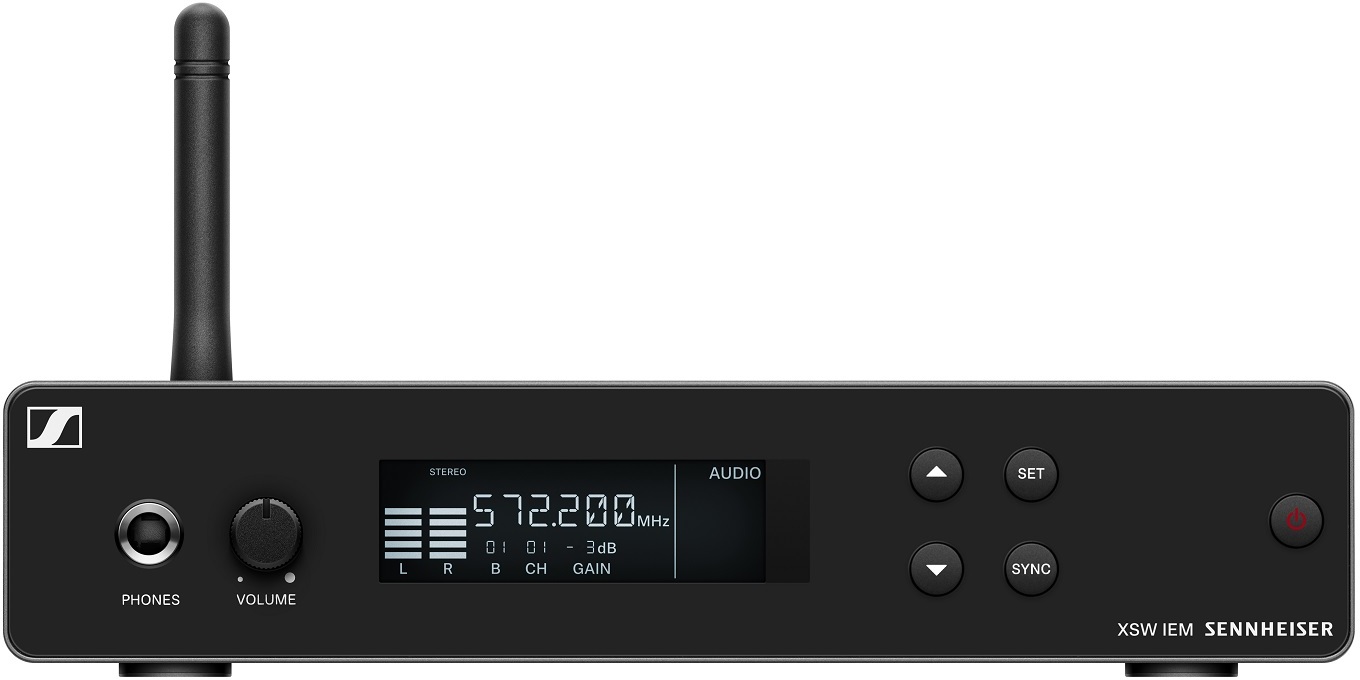

Backlit front panel for access to all key parameters

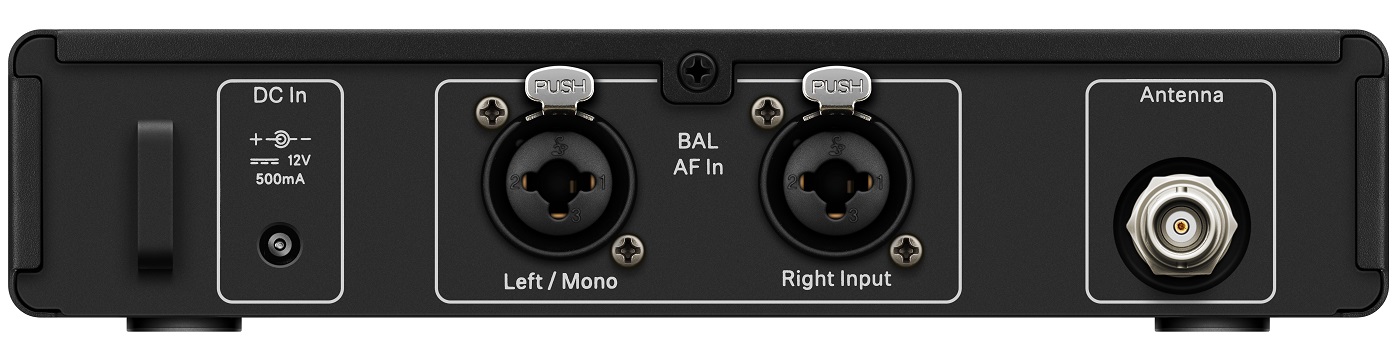

2 XLR and TRS 6.3 mm (1/4 inch) combo inputs
Additional headphone output (6.3 mm / ¼ inch) on front panel
Removable BNC antenna for optimal positioning options
8 frequency banks with 12 pre-calculated channels each.
Single UHF stereo half-rack transmitter, robust metal housing - part of the XS Wireless IEM series. The XS Wireless IEM
transmitter has a durable metal housing and can be used as part of a rack-mounted system or as a stand-alone transmitter.
The clear, backlit menu allows for easy setup, even in dark scenes.
XLR combo inputs provide flexible cabling options.
You can connect anything with an XLR or 6.3 mm (1/4 inch) plug.
You can preview your mix locally through the front-panel headphone output.
Adjusting gain, mono or stereo options, input sensitivity or frequency channels takes only seconds thanks to a clear and simple menu.
seconds thanks to a clear and simple menu.
Mono stereo UHF transmitter for XS Wireless IEM systems
Rugged metal housing in a standard half-rack format
Backlit front panel for access to all key parameters
2 XLR and TRS 6.3 mm (1/4 inch) combo inputs
Additional headphone output (6.3 mm / ¼ inch) on front panel
Removable BNC antenna for optimal positioning options
8 frequency banks with 12 pre-calculated channels each.
Lire la suite
Ficha técnica
- Frecuencia HF Búsqueda automática
- Transmisión numérica No
- Included
- XSW IEM SR Stereo Transmitter
- XSW BNC Antenna
- NT 12-5CW Power Supply + Country Adapter
- Quick Guide
- Safety Guide
- Compliance Sheet
- Frequency Table
- Overall device
- Temperature range
- 0 °C to +40 °C
- Input rating
- +12 V DC
- Current consumption
- Approx. 400mA
- (depending on volume level)
- Dimensions
- Approx. 200 x 128 x 42 mm
- Weight
- Approx. 700 g
- RF characteristics
- Modulation :FM stereo
- Frequency ranges
- A: 476 - 500 MHz (30 mW)
- (max. RF output power)
- B: 572 - 596 MHz (30 mW)
- C: 662 - 686 MHz (30 mW)
- E: 823.2 - 831.8 MHz (30 mW)
- K: 925.2 - 937.3 MHz (10 mW)
- Switching bandwidth :up to 24 MHz
- Nominal/peak deviation :±15 kHz / ±24 kHz
- Antenna output BNC socket, 50 O
- AF characteristics
- AF frequency response 45 Hz to 15 kHz
- AF input 2x XLR-3/¼" (6.3 mm) jack
- BAL AF IN L (I) + MONO/ combo socket, electronically
- BAL AF IN R (II) balanced
- Total harmonic distortion <0.9 %
- (THD)
- Overall device
- Temperature range 0 °C to +40 °C
- Input rating +12 V DC
- Current consumption Approx. 400mA
- (depending on volume level)
- Dimensions Approx. 200 x 128 x 42 mm
- Weight Approx. 700 g
- Signal-to-noise ratio =88 dB
- (at nominal load and peak
- deviation)
