Spl SMC 7.1

  • Leer reseñas (0)
  • Accesorios relacionados
  • Productos similares
  • Spl Smc 7.1 - Controlador de estudio / monitor - Main picture
  • Spl Smc 7.1 - Controlador de estudio / monitor - Variation 1
1777,00 €
  • Envío gratis
  • Precios bajos garantizados
  • Satisfecho o rembolsado
  • Garantía 3 años
  • Ref : 111638
Bajo pedido
preguntarnos
Stock en tienda
No disponible en tienda
INFORMARME DE SU ENTRADA EN STOCK
Quiero ser notificado por correo electrónico.
Go

La marca Spl

Conoce más sobre la marca Spl y descubre todo el catálogo.

Guía de compra de monitores de altavoces

¡Consulte esta guía para asegurarse de no equivocarse al comprar altavoces de monitorización!

Póngase en contacto con un experto

Nuestros teleconsultores músicos y entusiastas están aquí para responder todas sus preguntas.

Controlador de estudio / monitor

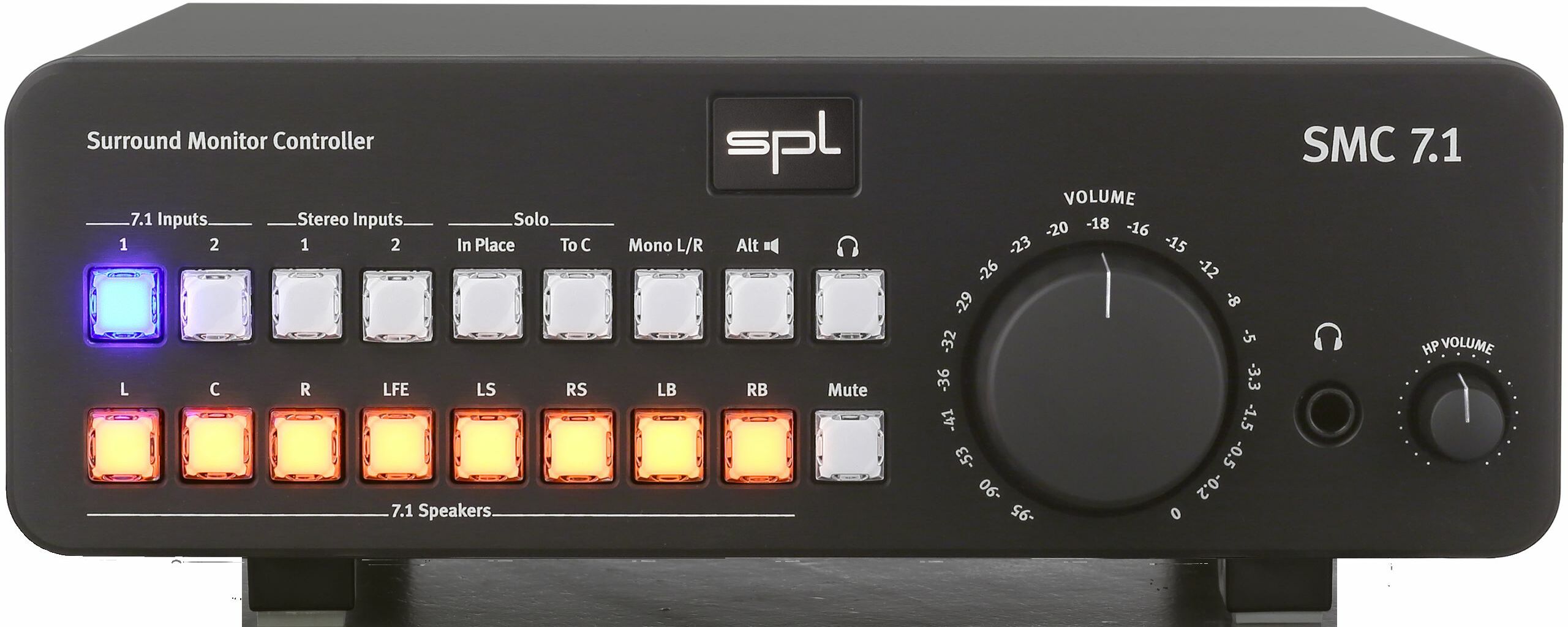

The SMC 7.1 is a controller offered by the SPL brand.

The SMC 7.1 Surround Monitor Controller is an analog studio monitor controller designed for 7.1 and stereo sources.
Either of the two 7.1 balanced inputs as well as the two balanced stereo inputs can be routed to the 7.1 balanced output.
L/R signals from the active input can also be routed to an alternative stereo output.

Equipped with a high-quality headphone amplifier, you can not only listen to the L/R signal of the active input, but also individual channels of the 7.1 inputs.
The eight-group potentiometer allows direct volume control of all channels, without the need for control circuits such as VCAs.

The SMC 7.1 is manufactured to high-quality analog standards, ensuring linear frequency response up to 100 kHz and exceptional dynamic range.
Lire la suite

Ficha técnica

  • Main Features
    • Two balanced 7.1 inputs
    • Two balanced stereo inputs
    • Balanced stereo output with sub-output
    • Extended routing options
    • Solo in Place / Solo to Center
    • High-quality headphone amplifier
    • Dedicated Analog Output for Analog Meter
    • 7.1 Balanced Output
    • Internal power supply
    • Made in Germany
  • Inputs
    • Sub-D-25 Input/Output
    • Sub-D-25 (TASCAM Standard)
    • Impedance: 20 kOhms
    • CMR: -82 dB
    • Max. Input Level: +22 dB
    • XLR Input
    • Neutrik XLR, balanced, pin 2 = (+)
    • Impedance: 20 kOhms
    • CMR: -82 dB
    • Max. Input Level: +22 dB
  • Outputs
    • Sub-D-25 Output
    • Sub-D-25 (TASCAM Standard)
    • Frequency Range: 10 Hz to 150 kHz (-3 dB)
    • Crosstalk at 1 kHz: -92 dB
    • THD & N: 0.001% (0 dBu, 1 kHz, 100 kOhm load)
    • Noise (A-weighted): -93 dB
    • Dynamic Range: 115 dB
    • XLR Output
    • Neutrik XLR, balanced, pin 2 = (+)
    • Frequency Range: 10 Hz to 150 kHz (-3 dB)
    • Crosstalk at 1 kHz: -92 dB
    • THD & N: 0.001% (0 dBu, 1 kHz, 100 kOhm load)
    • Noise (A-weighted): -93 dB
    • Dynamic Range: 115 dB
    • Headphone Output
    • TRS 6.35 mm Connector
    • Pin Wiring: Tip = Left, Ring = Right, Sleeve = GND
    • Impedance: 22 kOhms
    • Frequency Range: 10 Hz to 80 kHz (-3 dB)
    • Crosstalk at 1 kHz: -70 dB
    • THD & N: 0.001% (0 dBu, 1 kHz, 40 kOhm load)
    • Noise (A-weighted): -93 dB
    • Dynamic Range: 113 dB
    • Internal Operating Voltages
    • Analog: +/- 18 V Power Supply
    • Mains Voltage (Switchable): 230 V AC / 50Hz or 115 V AC / 60Hz
    • Fuses: 230 V = T 500 mA; 115 V = T 1 A
    • Power Consumption: max 25 VA
