Ref : 103903

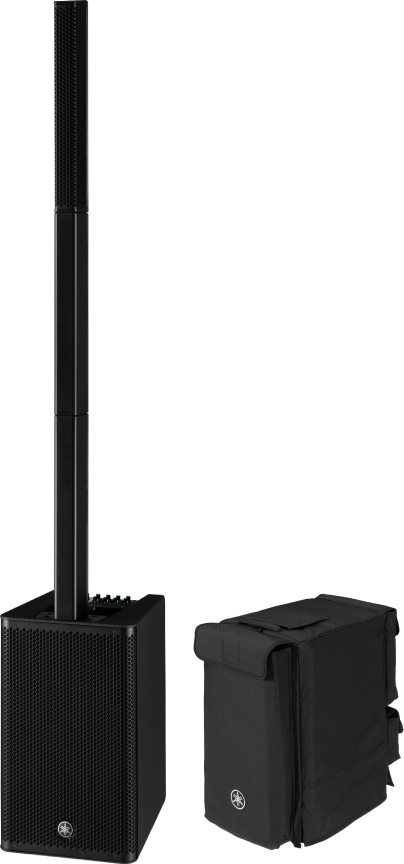

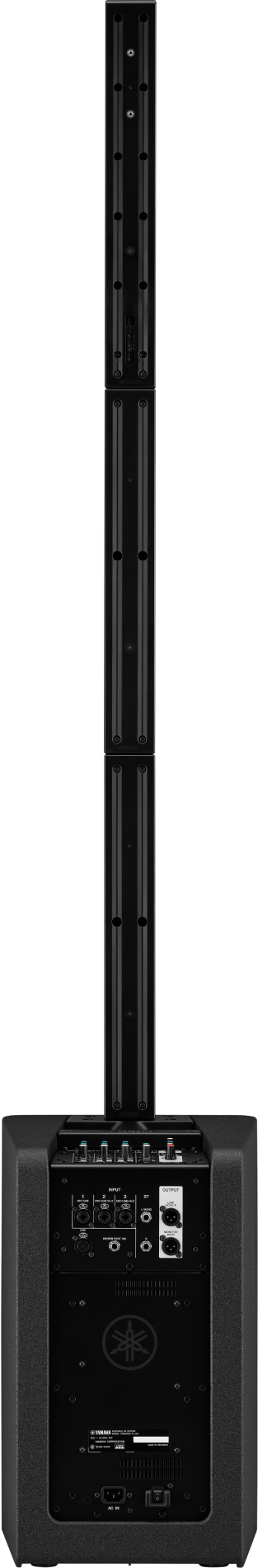

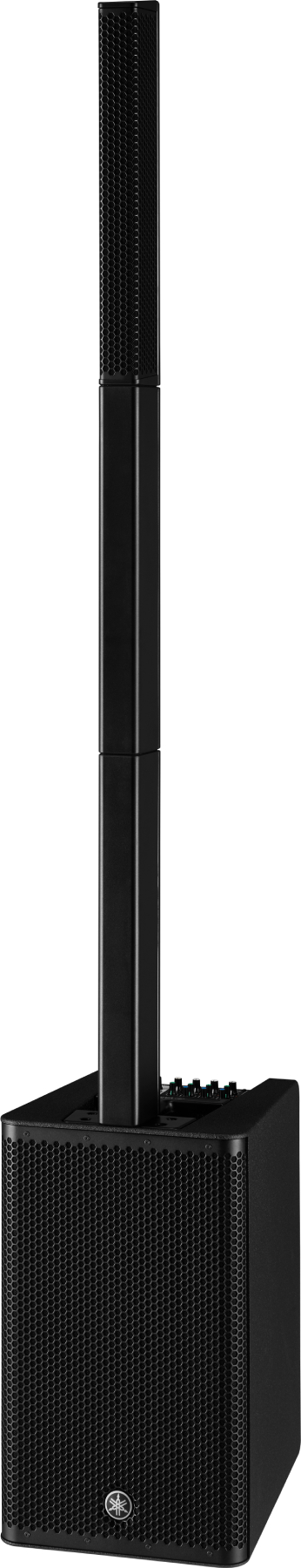

Type : Powered Subwoofer with a line array speaker
Mixing capability : Mixing channels 5 (Mono x3 + Stereo x1)

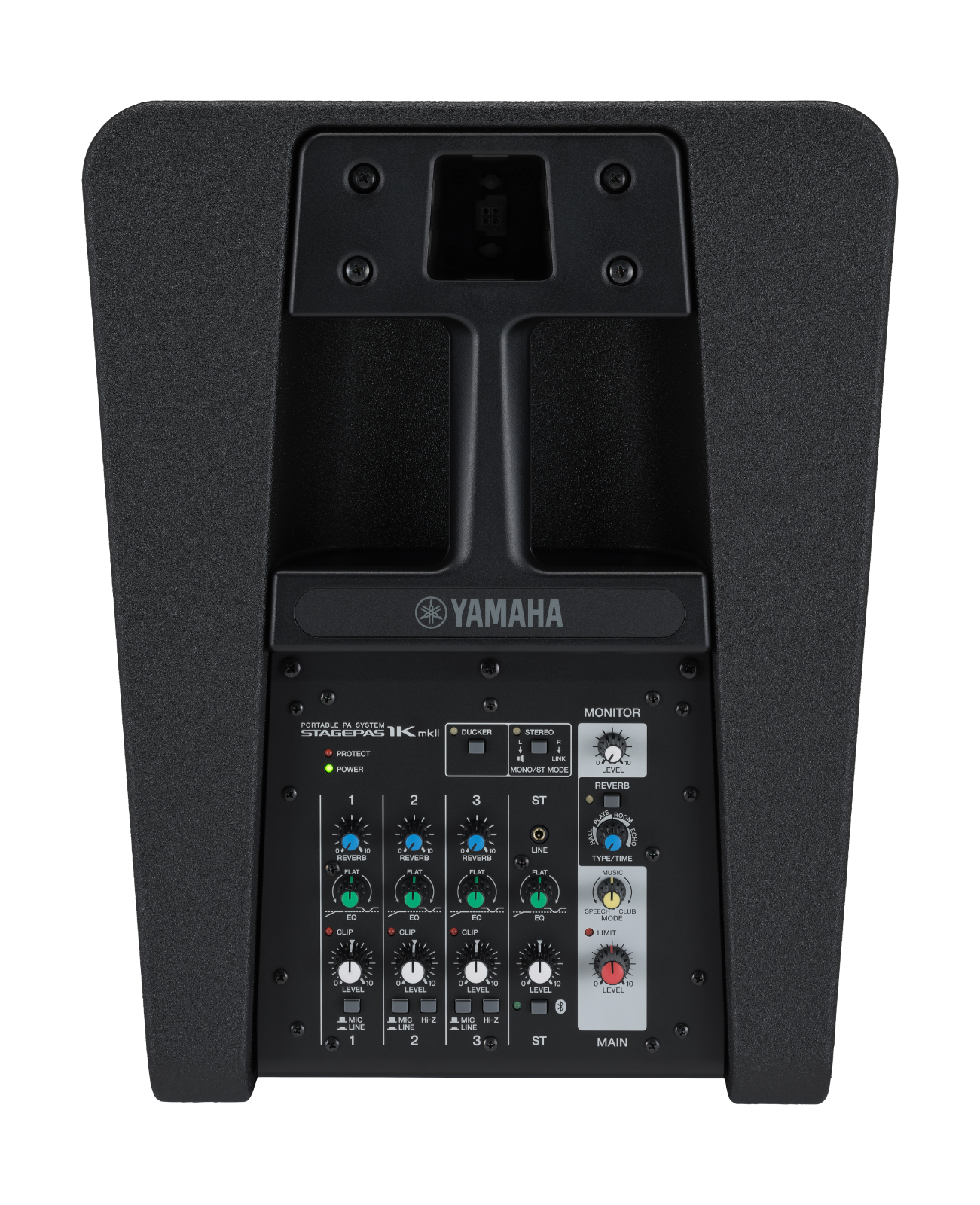

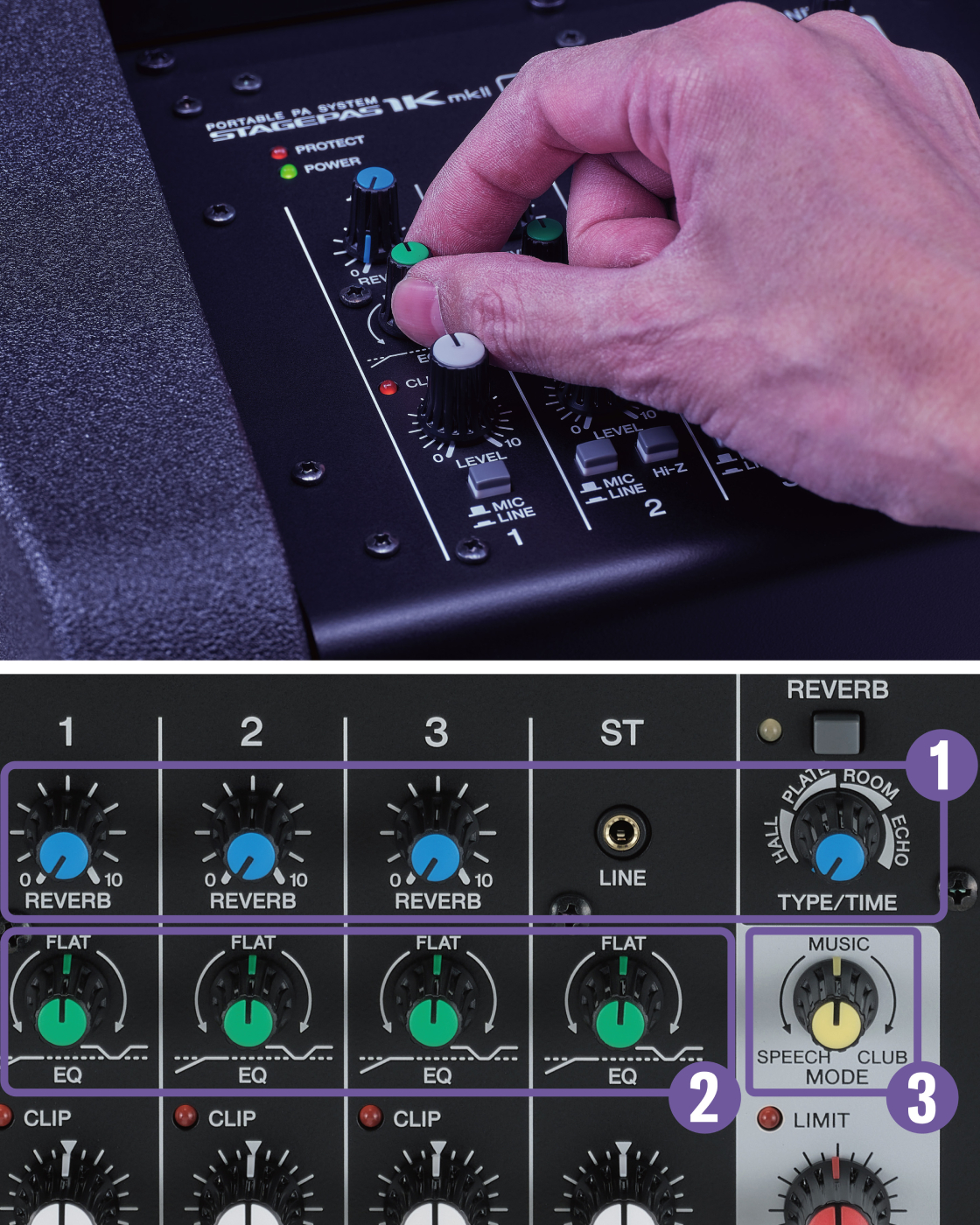

Input channel functions : Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST
Output channel functions MODE (SPEECH/MUSIC/CLUB)
I/O

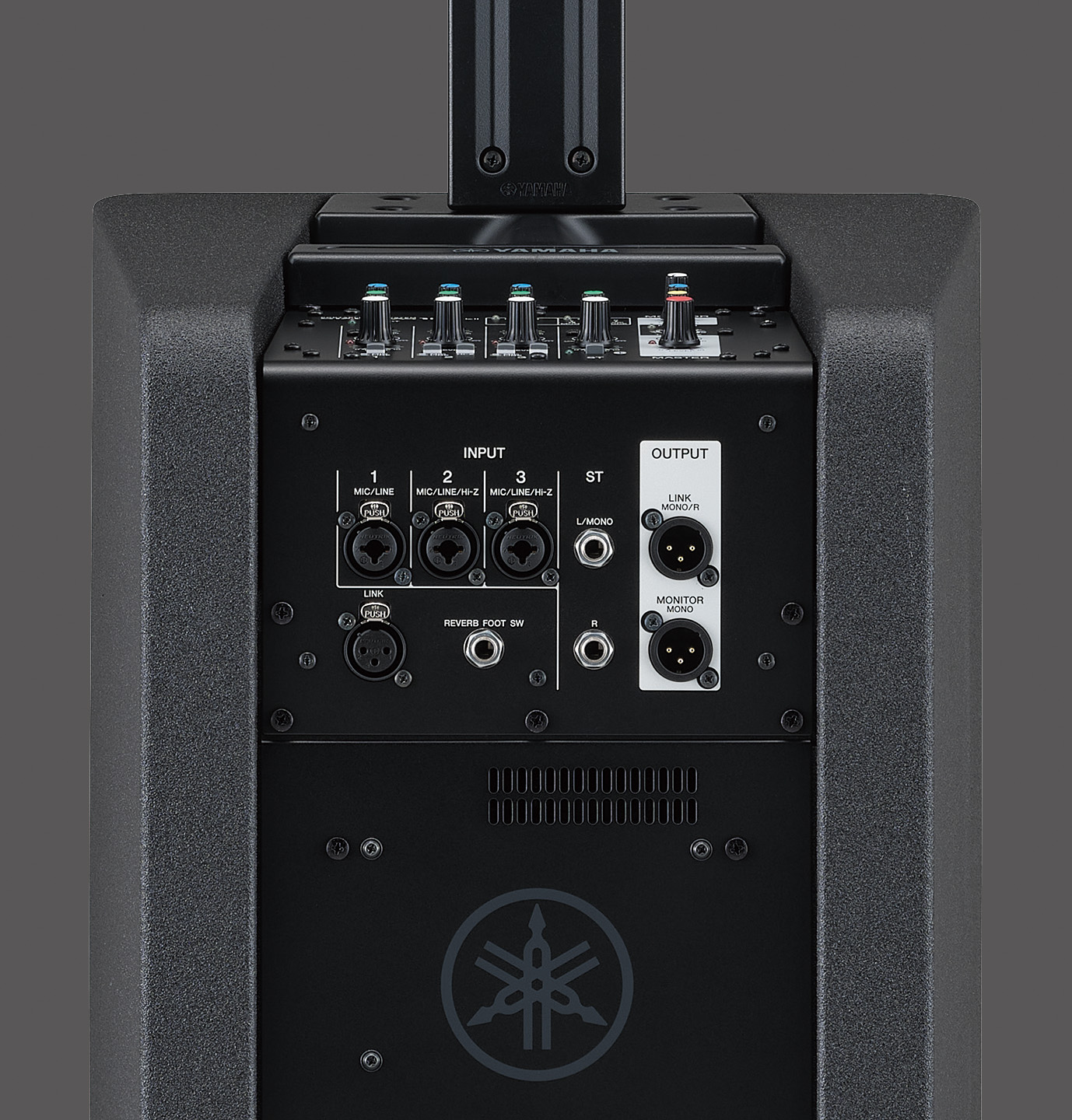

Inputs :Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1
Outputs : Link out x1, Monitior out x1
Bluetooth Bluetooth Ver.5.0, A2DP (SBC, AAC)
Control and others : Reverb foot switch, STAGEPAS Controller (iOS/Android app)
Speaker type :Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed
Frequency range (-10dB) : 37 Hz - 20 kHz
Maximum output level (1m; on axis) 125 dB SPL
Power rating Dynamic 1100 W
Dimensions (W x H x D) :System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each)
