Pedal overdrive / distorsión / fuzz

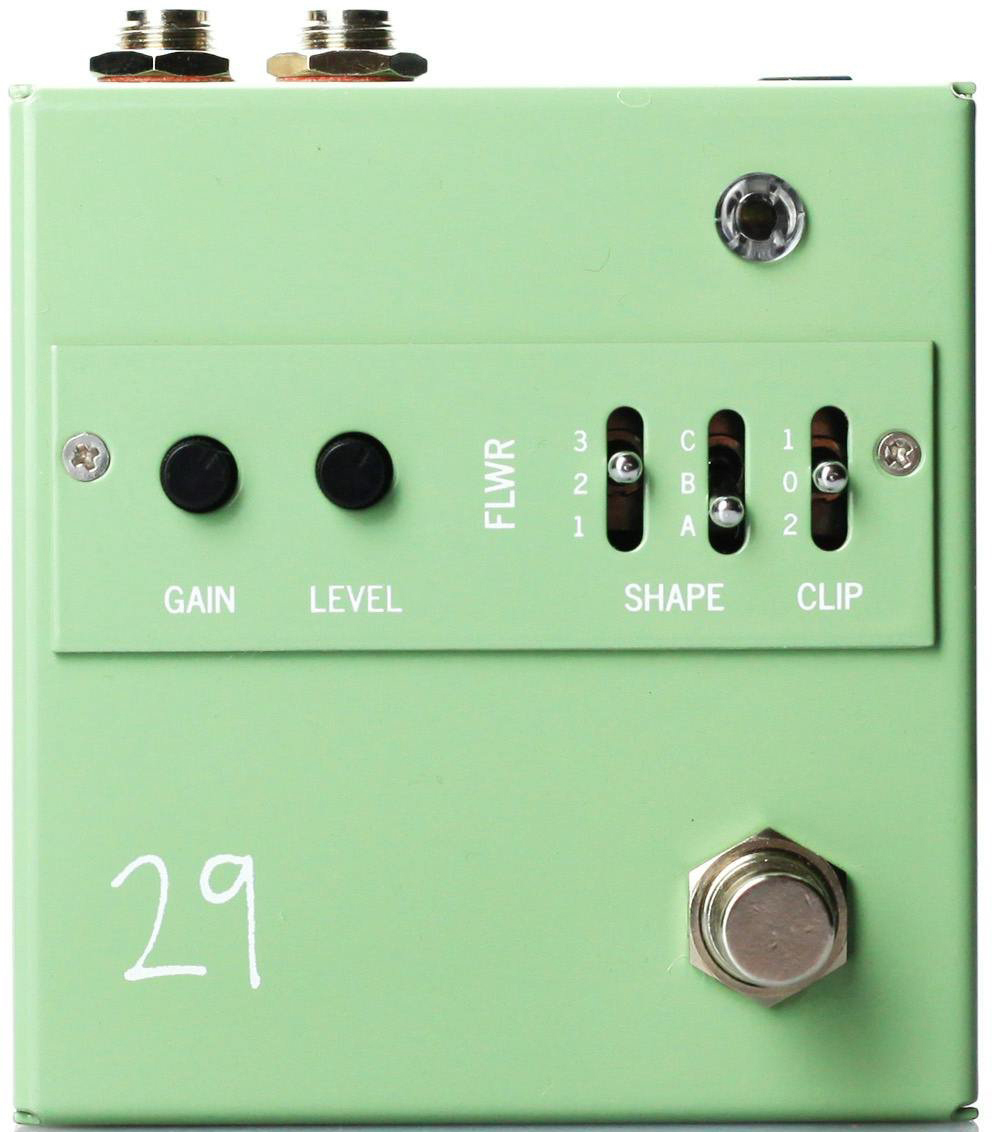

29 PEDALS FLWR Gain-Staging Overdrive comes with 3-band EQ and a couple of switches, while much of the EQ / Output Shaping of the FLWR is handled by 3 x 3-way toggle switches - which control the 1st Gain Stage, while the mini Gain knob controls the 2nd Stage Gain, and we have a master output Level mini knob too. 27 variations across the different switches ! Where Jesse recommends you start on 3-B-0 - or Flat Minimal Low Gain with No Clipping !
Note that default Clipping Pairs are 6 x 1N4148 as Pair 1, and 4 x Schottky diodes + 2 x LED for Pair 2. The clipping is entirely customisable via a switchable sub-assembly Module which clips into the circuit - such that you can have several different ones that you alternate. There will be further Modules available at a later stage - some will be collaborations with other notable pedal-builders, and there will be a blank one even for you to customise yourself.
The circuit's Output range offers a huge +45dB which can drive the front of your amp. And depending on what combination you set your switches on - you can also achieve some great distortion and Fuzz.
Note that default Clipping Pairs are 6 x 1N4148 as Pair 1, and 4 x Schottky diodes + 2 x LED for Pair 2. The clipping is entirely customisable via a switchable sub-assembly Module which clips into the circuit - such that you can have several different ones that you alternate. There will be further Modules available at a later stage - some will be collaborations with other notable pedal-builders, and there will be a blank one even for you to customise yourself.
The circuit's Output range offers a huge +45dB which can drive the front of your amp. And depending on what combination you set your switches on - you can also achieve some great distortion and Fuzz.
Lire la suite
Ficha técnica
- 29 PEDALS FLWR Gain-Staging Overdrive
- SKU 29 Pedals FLWR
- Ultra versatile saturation
- Analog circuit
- 2x gain stages
- Gain (2nd Stage Gain)
- Output Level
- Shape 1 : 3 Min Gain / 2 Max Gain / 1 Low-Pass Filtered Max Gain
- Shape 2 : C Bright Medium Gain / B Flat Low Gain / A Shaped High Gain
- Clip : 1 - 1st Pair (6x 1N4148), 0 - No Clipping, 2 - 2nd Pair (4x Schottky diodes + 2x LED)
- Connections : see pictures
- True bypass
- Whatever power circuit can handle any optional power supply from 7.5 to 35V - both AC and DC (power consumption 100 mA, doesn't work on batteries)
- 90 x 85 x 52 mm
