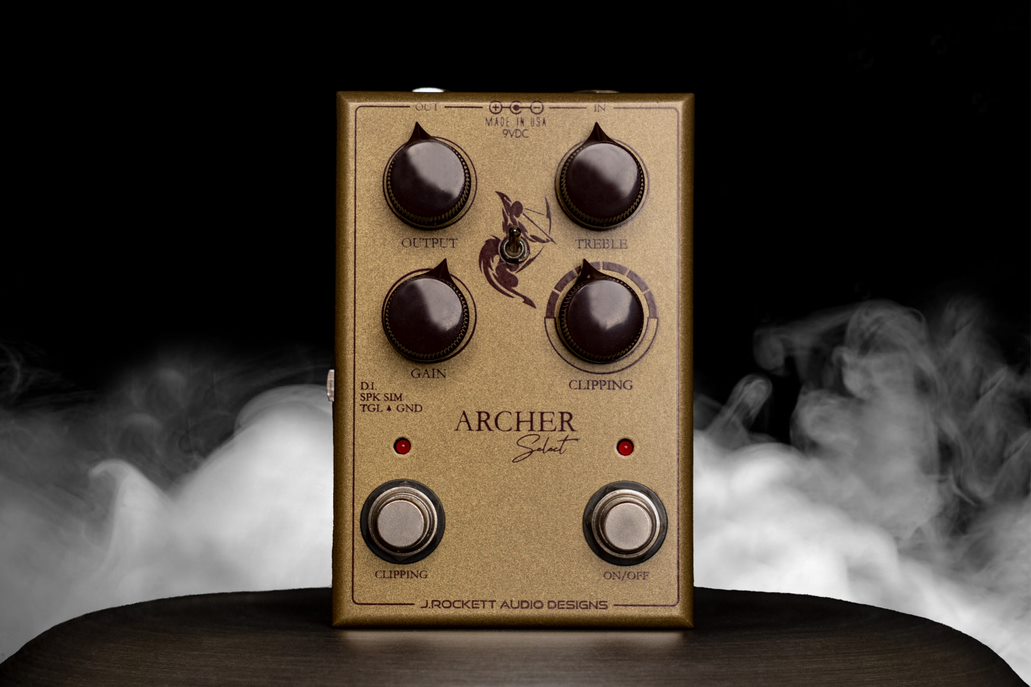

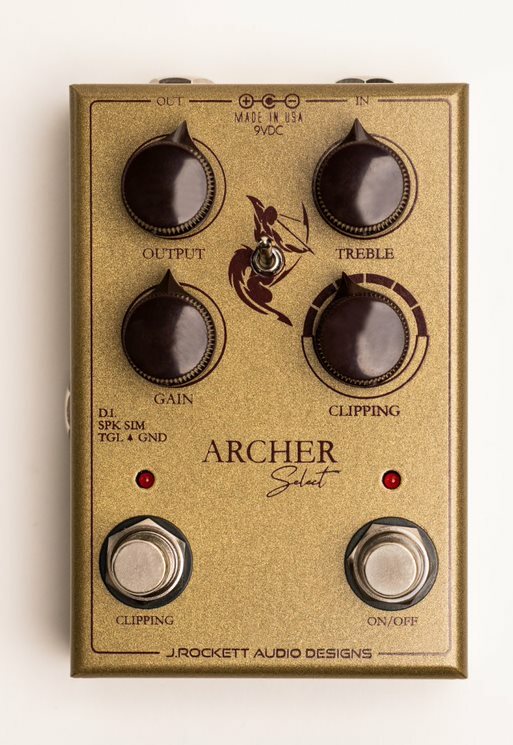

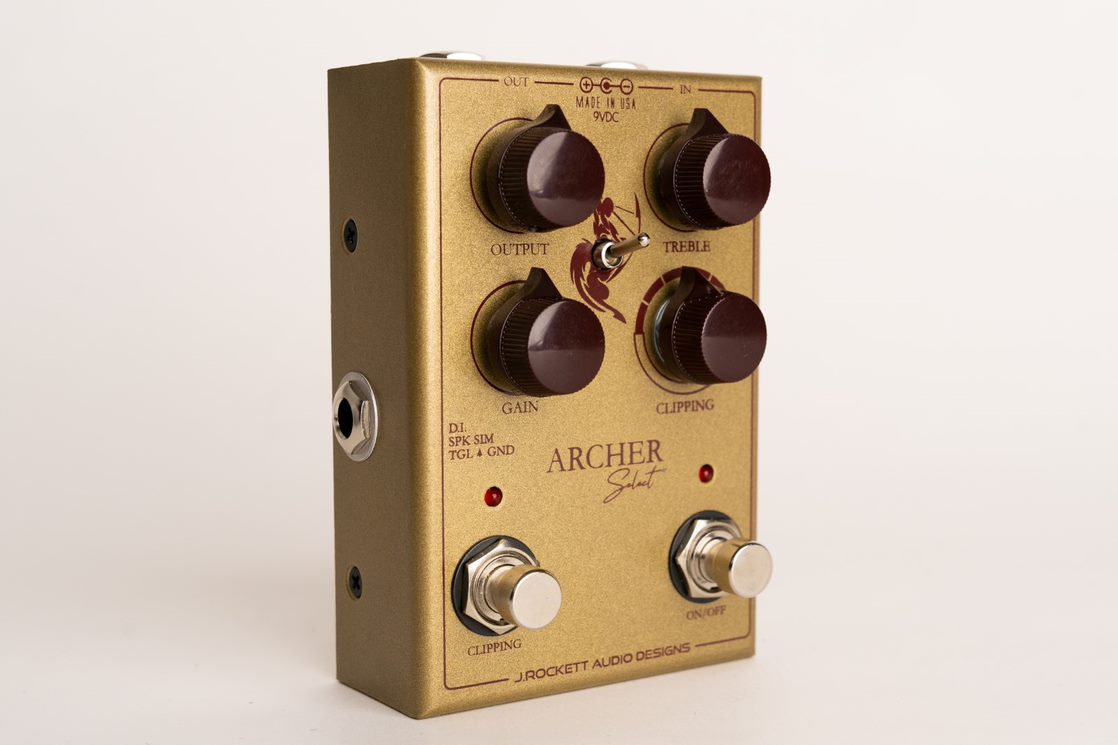

J. rockett audio designs Archer Select
- Leer reseñas (0)
- Accesorios relacionados
- Productos similares
La marca J. rockett audio designs
Conoce más sobre la marca J. rockett audio designs y descubre todo el catálogo.
Guía de compra de efectos de bajo
¿Cómo navega a través de la profusión de pedales de efectos disponibles en el mercado? Star's Music hace balance, ¡sigue esta guía de compra!
Póngase en contacto con un experto
Nuestros teleconsultores músicos y entusiastas están aquí para responder todas sus preguntas.
Pedal overdrive / distorsión / fuzz
The Archer Select is a uniquely functioning Boost/Overdrive. Over the years of K style pedals people have sworn by the influence of the proper NOS germanium clipping diodes in order for this particular design to be accurate to the original. There is so much speculation on the internet and certainly misleading information by the original designer. We decided to let your ears be the determining factor and to provide the ability for you to easily switch between 7 different clipping diode options.
If you simply leave the clipping diode foot switch off it defaults to the stock diodes (OA10’s). With the
clipping dial you can choose between 6 additional clipping diodes. Depending on which diodes you have the selector knob on you can A/B between the stock diodes and the selected diodes. Diodes range from lowest output to highest output when turning clockwise.
D.I. Speaker Simulator is something we included for those who like to be able to monitor their OD sound via
direct or have the option for direct recordings. The ground switch is solely there for the D.I. in case you have grounding issues.
If you simply leave the clipping diode foot switch off it defaults to the stock diodes (OA10’s). With the
clipping dial you can choose between 6 additional clipping diodes. Depending on which diodes you have the selector knob on you can A/B between the stock diodes and the selected diodes. Diodes range from lowest output to highest output when turning clockwise.
D.I. Speaker Simulator is something we included for those who like to be able to monitor their OD sound via
direct or have the option for direct recordings. The ground switch is solely there for the D.I. in case you have grounding issues.
Lire la suite
Ficha técnica
- Overdrive / Boost
- All acclaimed K-style clipping diode options in one box
- Controls: Output, Treble, Gain, Clipping dial, Ground switch
- Select between 7 different clipping diode options
- Stock diode configuration: OA10
- Clipping dial diode options: 1N270, 1N695, 1N34A, D9B, D9E, RED LEDs
- All configurations use NOS Germanium Diodes (New Old Stock) except of RED LEDs (Option 6)
- DI Output and Speaker Simulation for direct monitoring and recording
- Ground switch to remove grounding issues
- Top mounted jacks
- Power Supply: 9V DC, center negative power supply (not included)
- Current draw < 100 mA
- Made in USA
