Mixer dj

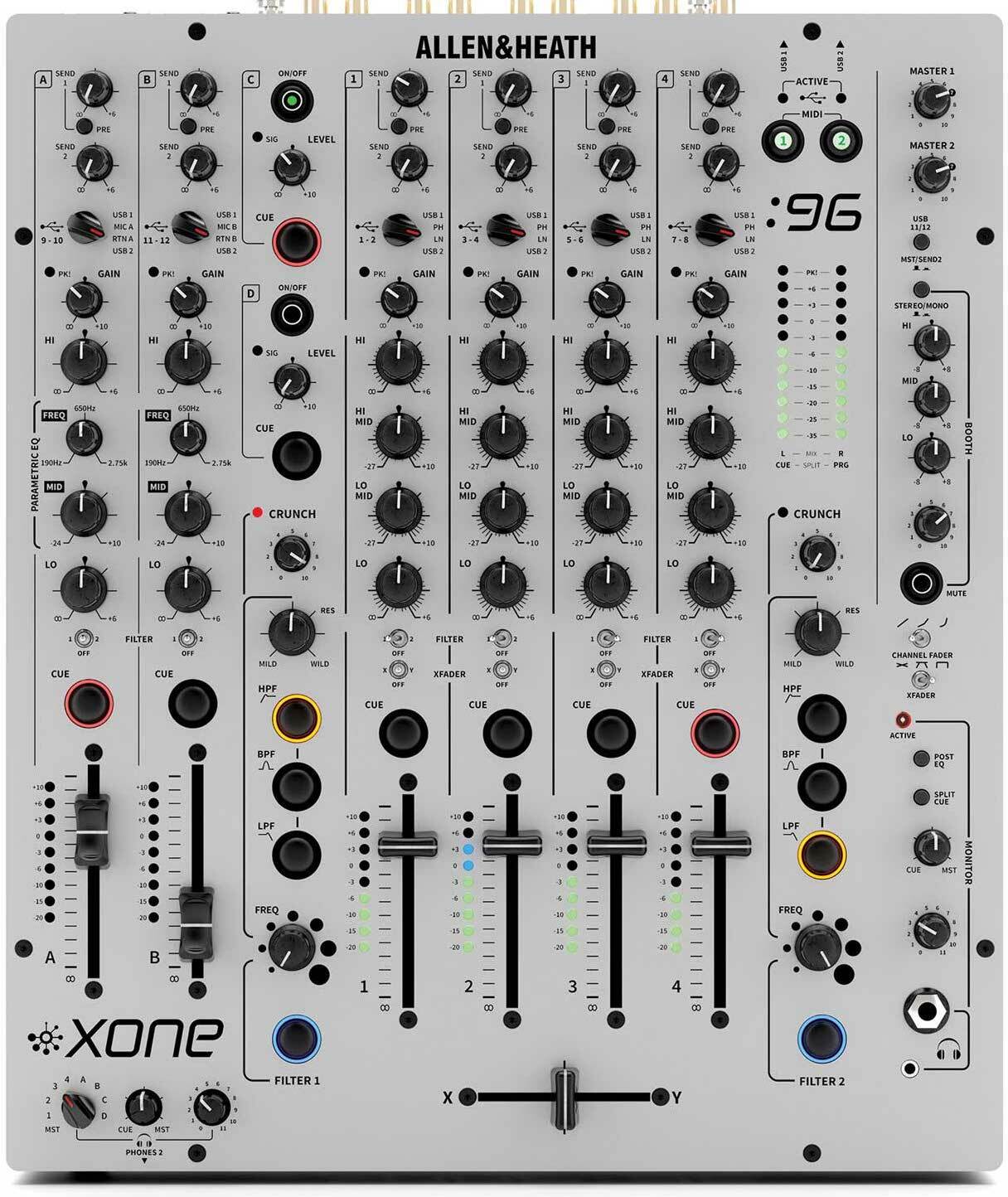

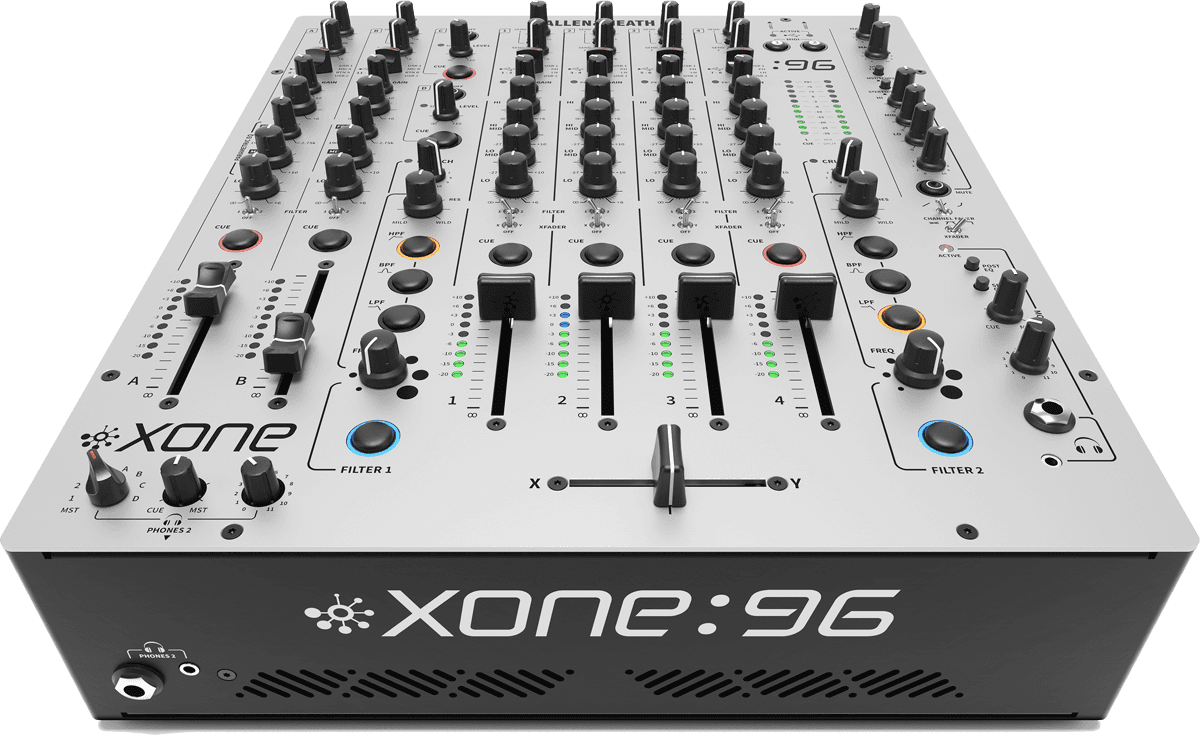

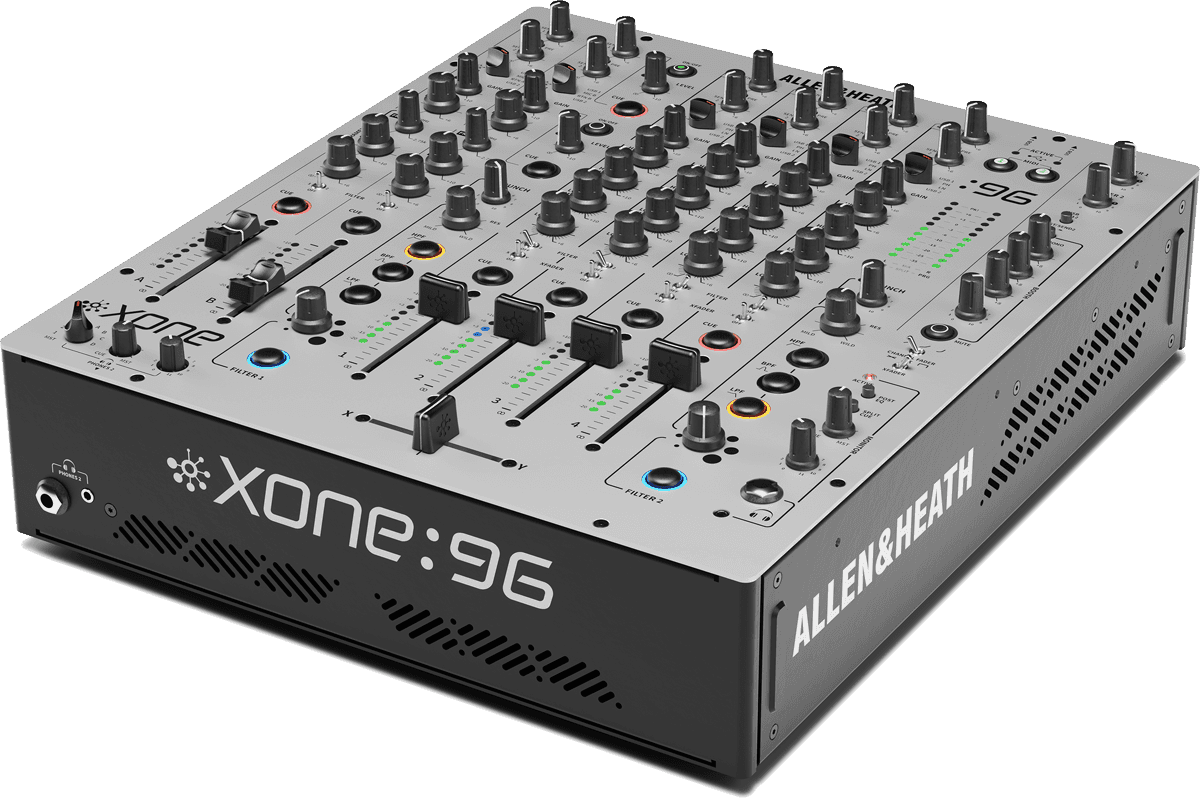

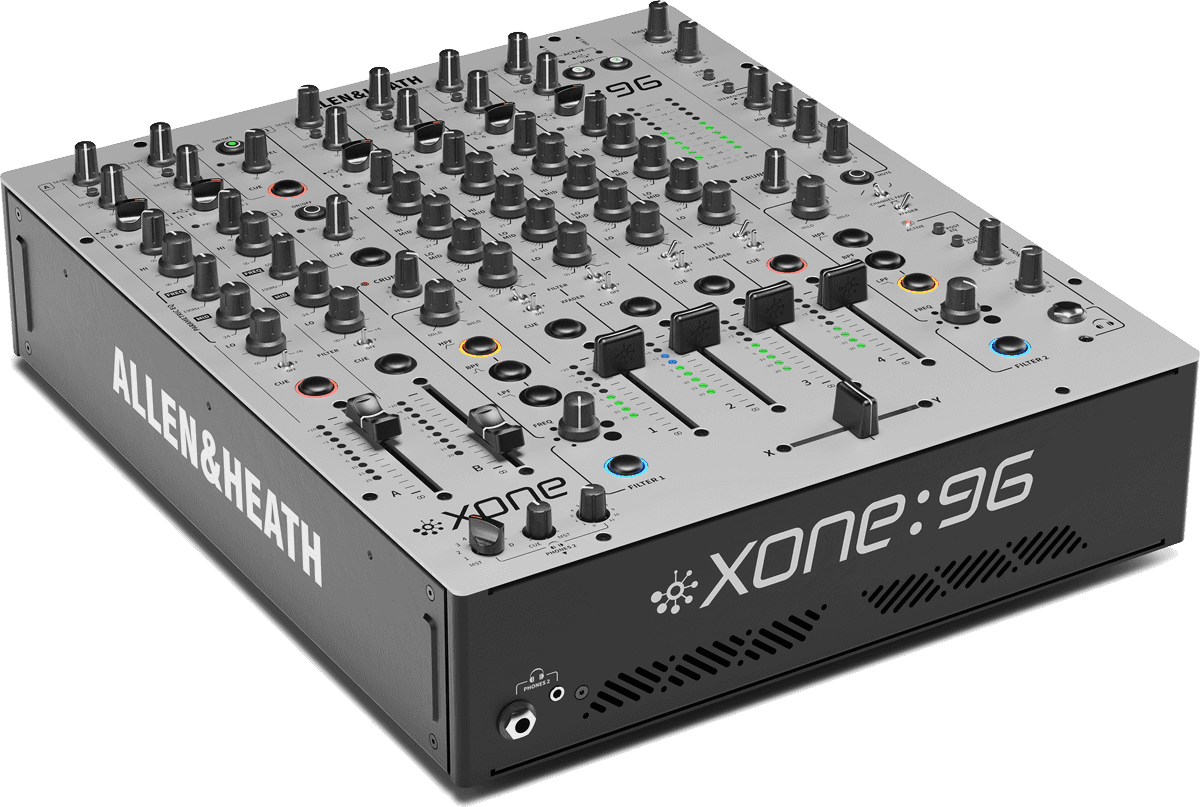

The Xone 96 is an Allen & heath analog DJ console.
An ergonomic interface proven and sought after by DJs, inherited from the Xone 92.
It includes 4 stereo channels with 4-band EQ, 2 stereo channels with XLR mic inputs, equipped with a 3-band parametric EQ, with A and B returns, and 2 channels of auxiliary stereo returns for C and D returns.
To top it off, the Xone 96 comes with a dual 32-bit USB sound card, capable of transmitting 24 channels at 96 kHz, all certified Traktor Scratch.
2 independent headphone circuits for back-to-back performance on stage, with dual jack and minijack inputs.
Crossfader Innofader 45mm with 3 different cut modes, and channel assignment switches to the crossfader.
An ergonomic interface proven and sought after by DJs, inherited from the Xone 92.
It includes 4 stereo channels with 4-band EQ, 2 stereo channels with XLR mic inputs, equipped with a 3-band parametric EQ, with A and B returns, and 2 channels of auxiliary stereo returns for C and D returns.
To top it off, the Xone 96 comes with a dual 32-bit USB sound card, capable of transmitting 24 channels at 96 kHz, all certified Traktor Scratch.
2 independent headphone circuits for back-to-back performance on stage, with dual jack and minijack inputs.
Crossfader Innofader 45mm with 3 different cut modes, and channel assignment switches to the crossfader.
Lire la suite
Ficha técnica
- Cantidad de canales 8 canales
- Technology
- Analog
- Canals
- 6 + 2
- Equalization
- Channels 1 to 4: 4-bands
- Channels A and B: parametric 3-band
- Sound cards
- Double 24 channels (12 inputs / 12 outputs)
- USB 2.0 High Speed, Mac compliant
- 24 bits / 96 kHz
- MIDI via USB
- inputs
- Line: 4 Rca (channels 1 to 4), 4 mono / stereo TRS jack (channels A to D)
- Phono: 4 Rca (channels 1 to 4), LN / PH selector for DVS control
- Mic: 2 XLR
- USB: 6 (channels 1 to 4 + channels A and B)
- Exits
- Master 1: 1 XLR
- Master 2: 1 TRS jack (symmetrical)
- Booth: 1 TRS jack (symmetrical)
- MIDI: 1 DIN 5 pins
- Master Insert: 1 TRS jack (symmetrical)
- Shipping / Returns
- 2 shipments, TRS jack
- 4 returns, TRS jack
- 1 line / high impedance selector (Send 1 / Return A)
- filters
- 2 VCF filters
- High Pass Filter (HPF), Band Pass Filter (BPF), Low Pass Filter (LPF)
- Adjustable frequency and resonance
- Assignable to channels 1 to 4 + A and B
- CRUNCH effect (controlled harmonic distortion of the signal)
- External connections
- X-Link: 1 RJ45 for connection with Xone-K controllers
- Headphones
- 2 jacks
- 2 minijack sockets
- Split Cue Monitoring (2 independent listening circuits)
- Faders and channels
- VCA 60 mm interchangeable
- Selector 3 types of fader curves
- Bargraph 9 segments
- crossfader
- InnoFADER Mini VCA 45 mm interchangeable
- Selector 3 types of crossfader curves
- Further information
- Headroom: 20 dB
- Grounding terminals: 2
- Electrical outlet: IEC 3 points
- Weight and dimensions
- 410 x 336 x 109 mm
- 7 kg
