Interface de audio thunderbolt

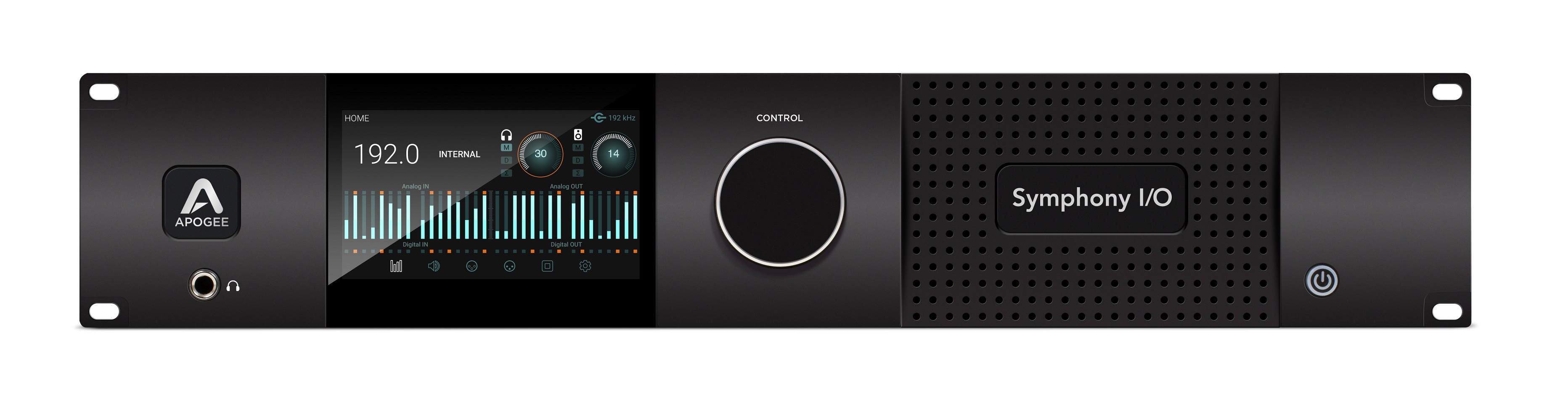

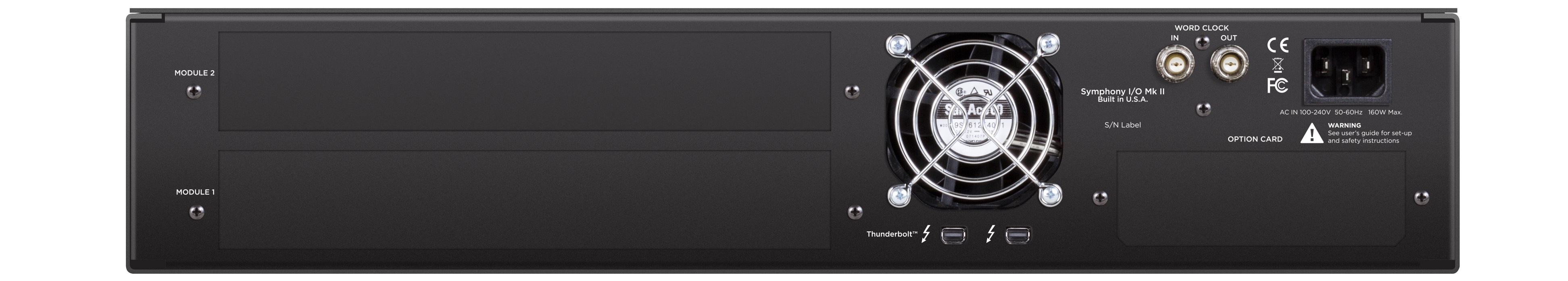

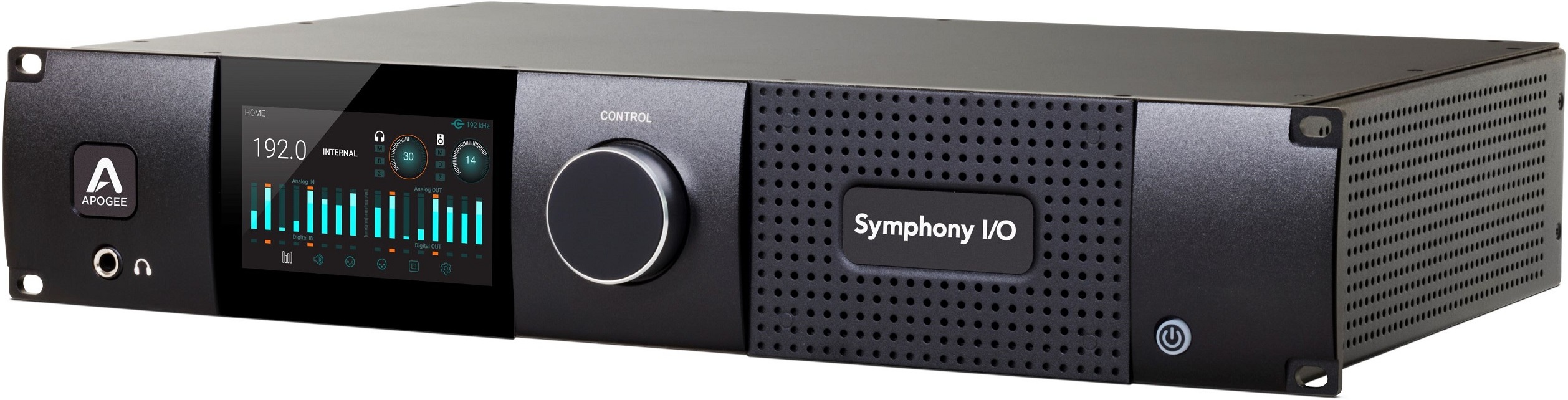

Symphony I/O Mk II is a multi-channel audio interface featuring Apogee’s flagship AD/DA conversion, modular I/O (up to 32 inputs and outputs), intuitive touchscreen display and optional world-class microphone preamps. Designed to deliver professional sound quality for audio recording, mixing and mastering, Symphony I/O Mk II is the ultimate music production centerpiece for any modern studio. With its option card flexibility, Symphony I/O Mk II can provide direct connectivity to one of 4 different platforms – Thunderbolt™, Pro Tools® HD, Dante™+ Pro Tools® HD, or Waves SoundGrid network.
Lire la suite
Ficha técnica
- DSP No
- Analog to Digital:
- THD+N: -115dB @ 22dBu (0.00020%) unweighted
- Dynamic range: 122dB A weighted
- Maximum input levels:
- +4dB setting: +24dBu
- -10dB setting: +6dBV
- Frequency response at 44.1kHz: 1-20,000 Hz (+/- 0.05dB)
- Input impedance: 10K
- Digital to Analog:
- THD+N: -119dB @ 21dBu (0.00014%) unweighted
- Dynamic Range: 126dB A weighted
- Max output levels – ∞ to +24dBu
- Frequency response at 44.1 kHz: dc to 20kHz (+/- 0.05dB)
- Output impedance: 50 Ohm
- Outputs are balanced through Apogee’s proprietary Perfect Symmetry Circuitry (PSC)
- Headphone Output:
- 1 stereo 1/4? headphone output on front panel
- THD+N:
- -110dB @19dBu into 600 Ohm (=80mW)
- -101dB @14dBu into 32 Ohm (=470mW)
- Dynamic Range: 121db A weighted
- Output: Apogee’s proprietary Constant Current Drive™ provides smooth frequency response with any headphones
