Pedalera de control

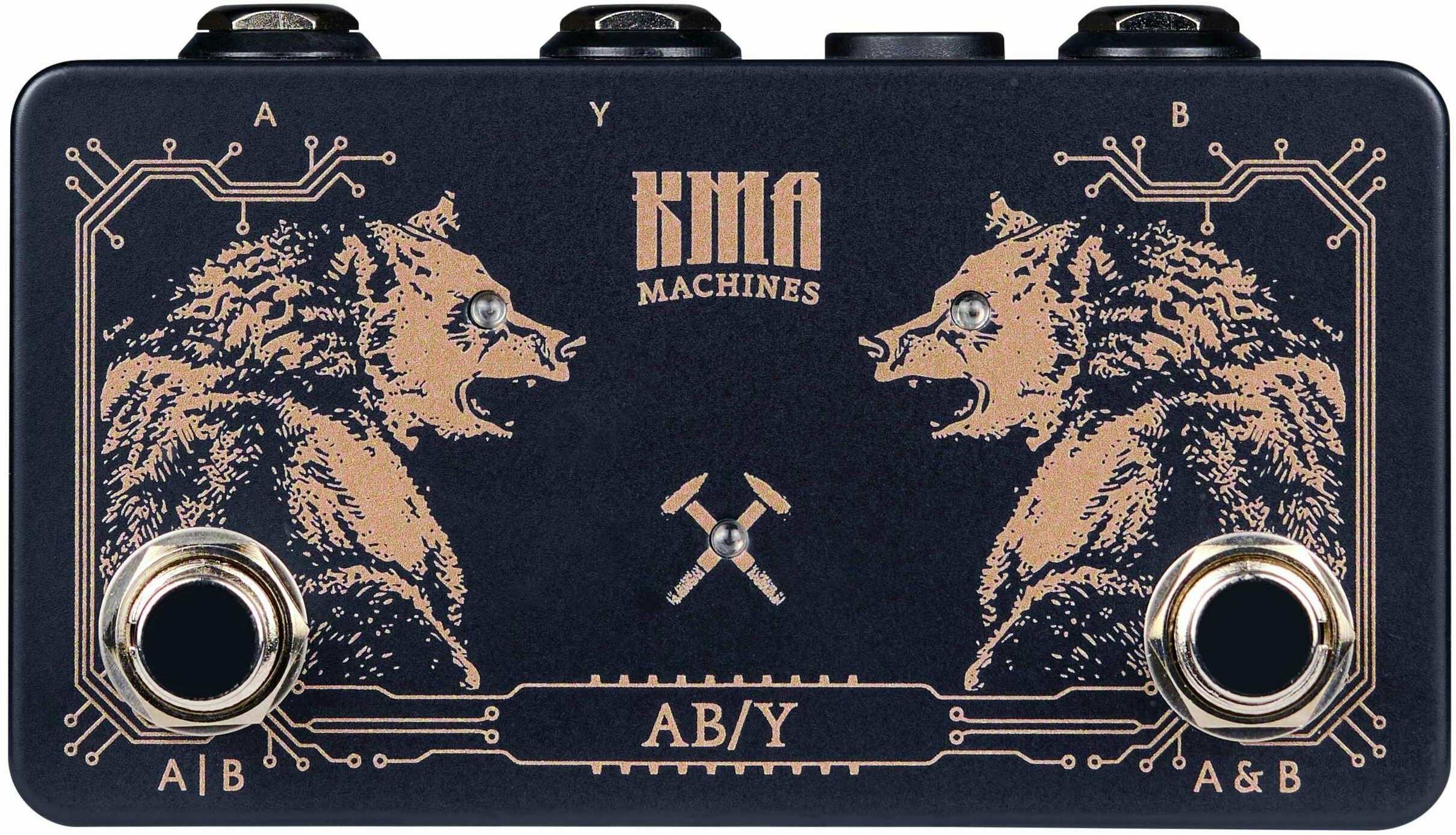

The AB/Y SWITCHER is a switch offered by the KMA brand.
Whether you are looking to alternate or combine your mono input signal to two separate outputs, or alternate or combine two separate input signals to a single output, the KMA Machines AB/Y is the tool you need. you need. Designed to be robust, reliable and easy to use, this passive AB/Y router also features a silent relay with true bypass to minimize any potential noise.
Whether you are looking to alternate or combine your mono input signal to two separate outputs, or alternate or combine two separate input signals to a single output, the KMA Machines AB/Y is the tool you need. you need. Designed to be robust, reliable and easy to use, this passive AB/Y router also features a silent relay with true bypass to minimize any potential noise.
Lire la suite
Ficha técnica
- Switches or combines a mono input signal to two separate outputs
- Switches or combines two separate input signals into a single output
- Active and silent relay-based switching reduces unwanted mechanical noise and clicking noises
- Durable, compact housing for years of reliable switching
- Status LEDs: A, B, Y
- Footswitches: A/B, A & B
- True Bypass
- Input A on 6.3 mm mono jack
- Input B on 6.3 mm mono jack
- Y output on 6.3 mm stereo jack
- Connection for power supply on barrel socket 5.5 x 2.1 mm, negative polarity inside
- Current consumption: 40 mA
- Operates with optional 9 V DC power supply not supplied - suitable power supply 409939
- Dimensions (L x D x H): 112 x 65 x 56 mm
- Weight: 180g
- Handmade in Germany
