Ld systems ICOA 15 A

Leer reseñas (0)
Accesorios relacionados
Productos similares

445,00 €

Envío gratis
Precios bajos garantizados
Satisfecho o rembolsado
Garantía 3 años
Ref : 92323

Stock Internet

expedición entre 8 y 10 días

Stock en tienda

No disponible en tienda

Otra(s) versione(s) o producto(s) asociado(s)

La marca Ld systems

Conoce más sobre la marca Ld systems y descubre todo el catálogo.

Descubrir

Guia De Compras Altavoces

Altavoces, guia de compras

Consultar

Póngase en contacto con un experto

Nuestros teleconsultores músicos y entusiastas están aquí para responder todas sus preguntas.

+33 181 930 900 email

Altavoz activo

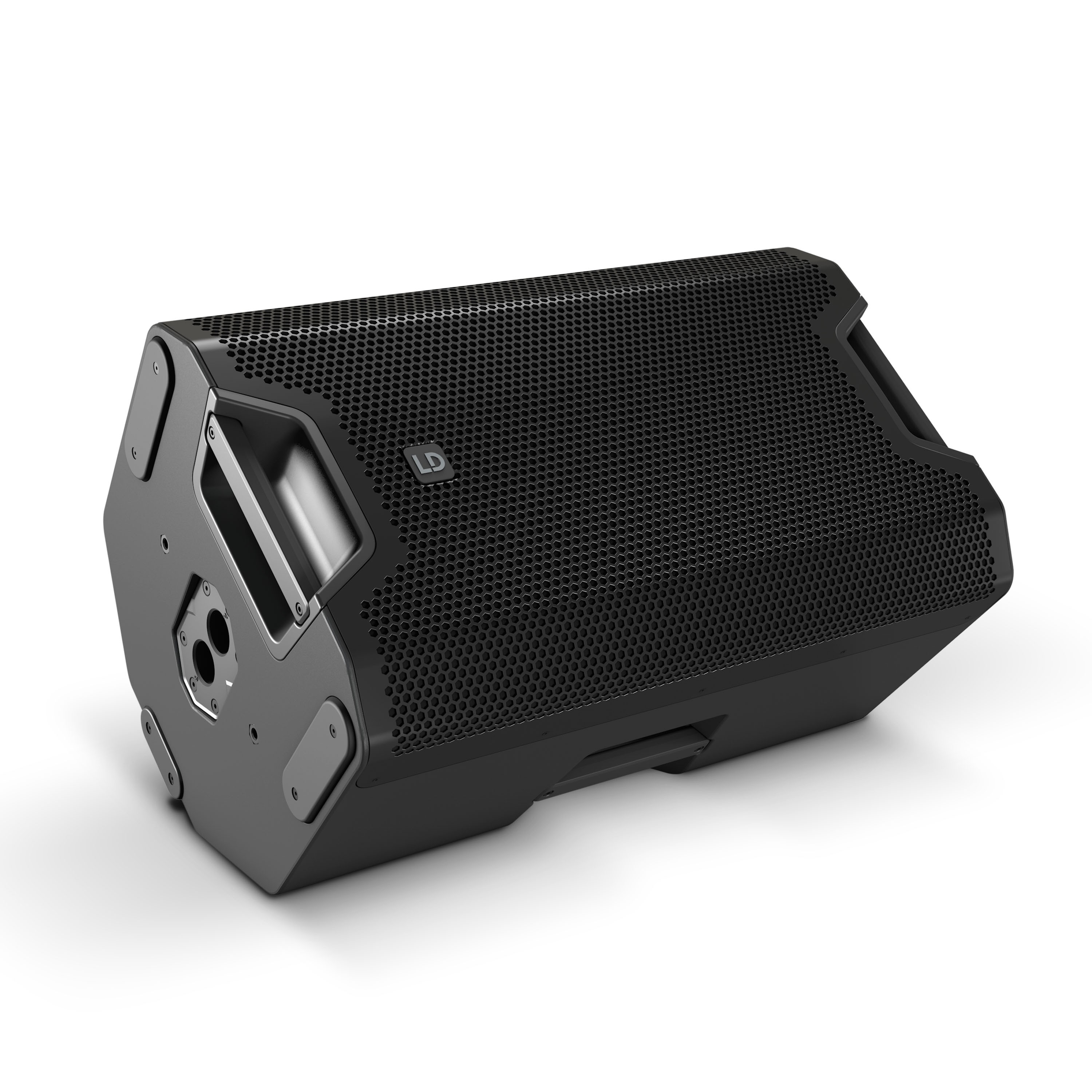

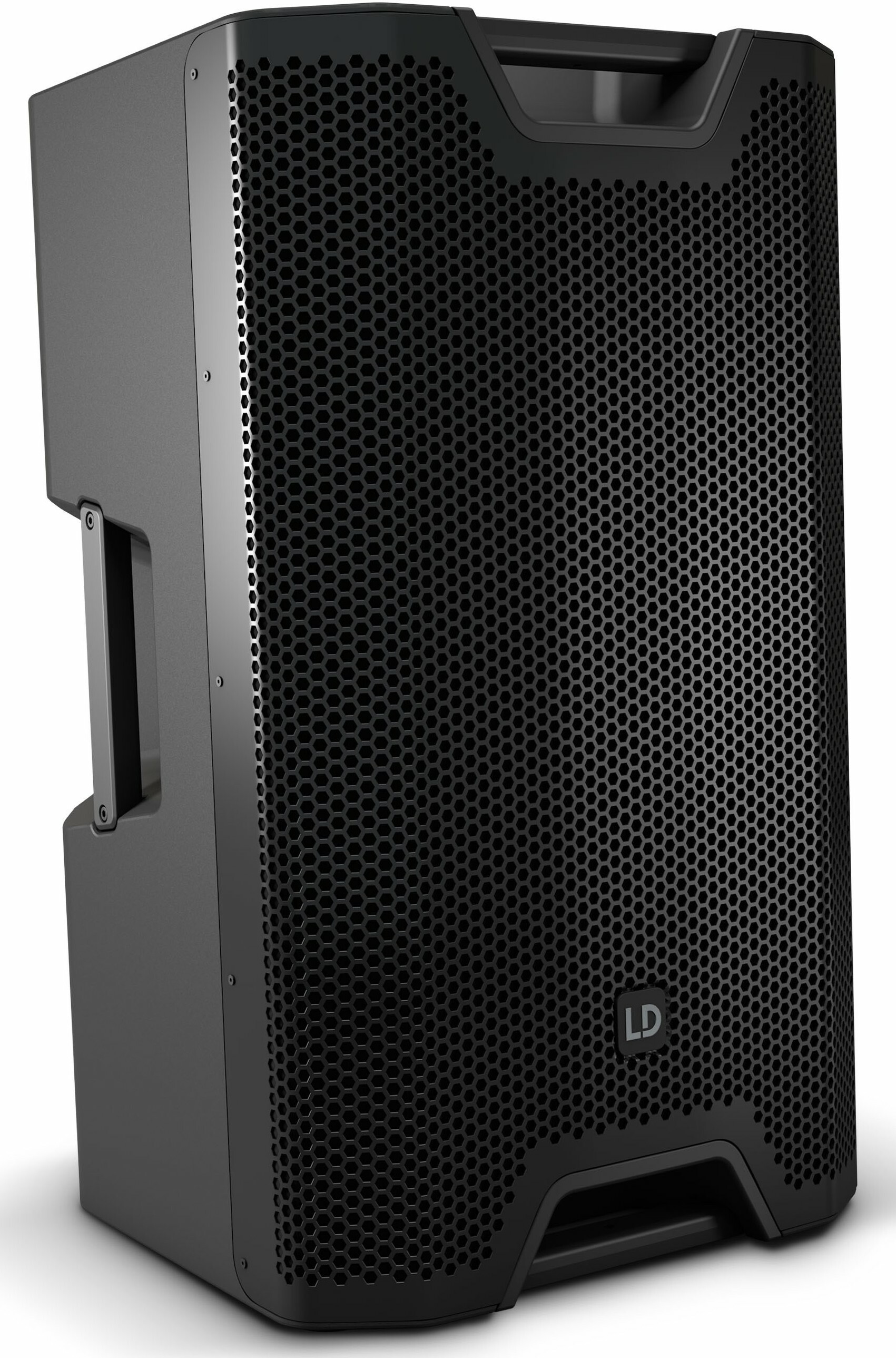

lE lD Systems ICOA 15 A is a 12 "PA active coaxial loudspeaker.

True all-rounder for broadband, satellite and stage monitor applications
Max. SPL of 128 dB and PEAK power of 1200 W
Vertical and horizontal application thanks to the coaxial structure, with CD rotary tweeter optimized thanks to BEM
Paved bass driver
DSP DynX with 4 presets, 3-band equalizer and delay function
2 line/microphone input channels with individual gain adjustment potentiometers and one Mono Mix output, Bluetooth® streaming on the BT model
Base for Dual Tilt 36 mm stand with 0° and 5° tilt angle, 55° monitor angle with stable seat
Shockproof front grille for optimal protection of the enclosure
4 aluminium handles with ergonomic rubberized surface
Various accessories available as options for installation and transport

Ficha técnica

Potencia de altavoz de sonorización De 301 a 600 watts RMS
Tipo de altavoces Monitor y altavoz de escenario

Product type: Sound system speaker
Type Active
Speaker/medium diameter15 ".
Diameter Boomer381 mm
BoomerFerrite magnet
Brand loudspeakerMade to measure
Optimized BEM horn horn with constant directivity
Tweeter diameter1" diameter
Tweeter diameter25,4 mm
Ferrite tweeter magnet
Tweeter brandMade to measure
Tweeter1" coil
Diameter of Mobile Coil Tweeter25,4 mm
AmplifierClass D
Dispersion angle (H x V)90 ° x 50 °
Power (RMS)300 W
Power (peak)1200 W
Frequency response48 - 20000 Hz
Frequency response kHz2 kHz2 kHz
Max. SPL level (peak)128 dB
Protection circuitsMultiband limiter, Overload, Overheating, Overheating, Overvoltage

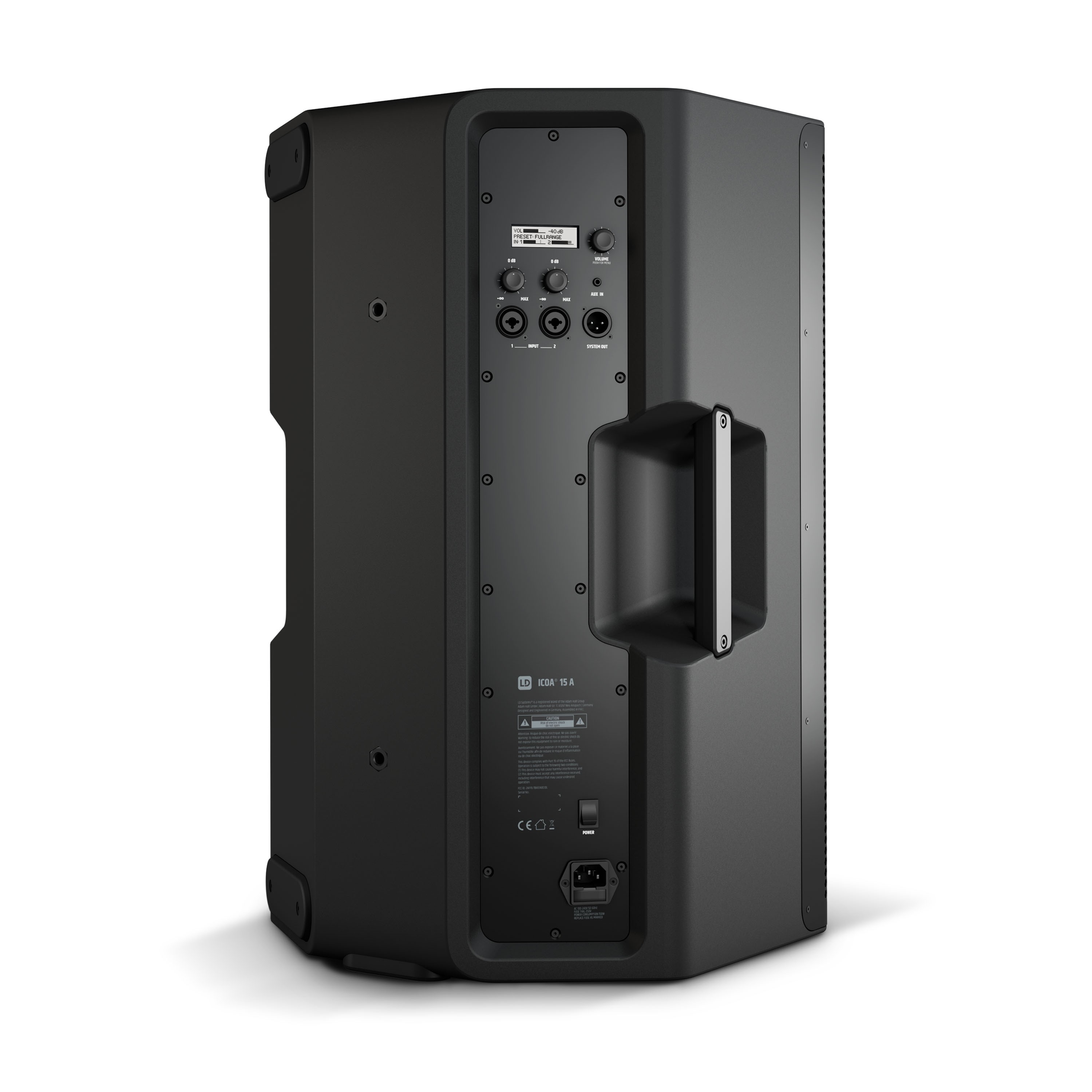

Settings2 x Gain, Rotary encoder/push button, On/off switch
IndicatorsLCD display
Mic/Line Inputs2
6.3 mm mic/linejack input connectors Combined (balanced) sockets, XLR
Line inputs1
Line input connectorsMini stereo 3.5 mm mini-jack
Line outputs1
Line output connectorsXLR
Mains voltageSwitching power supply
Power consumption150 W
Ambient temperature (operating)0 - 40 °C
Mains voltage100 V - 240 V AC / 50 - 60 Hz
Relative humidity level below 80%, no condensation
Fuse T4AL 250 V
Case materialPolypropylene
Finishing of the cabinetBass Reflex
tripod flange0°, 5°, 36 mm base plate
Monitor angle55 ° °
Width416 mm
Height (mm)695 mm
Depth415 mm
Weight24.3 kg
Accessories (included)Power cable
