Subwoofer activo / bafle activo de bajos

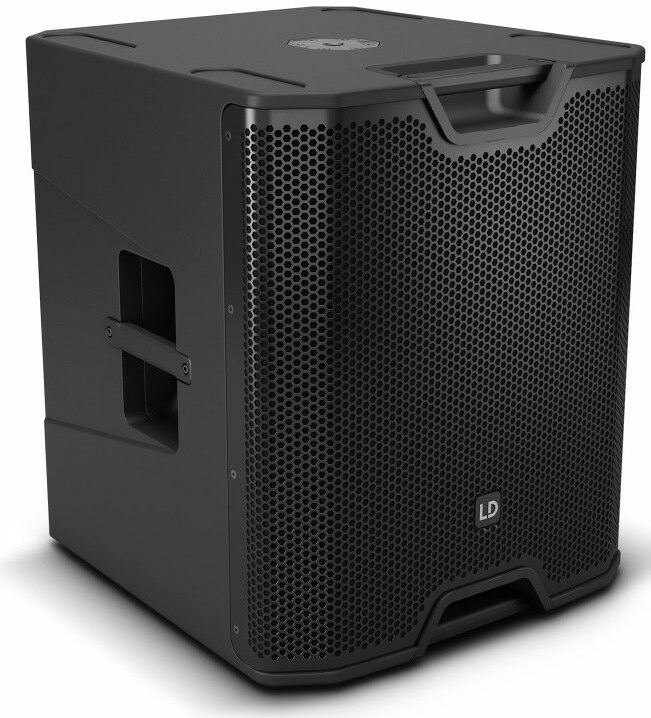

The Ld systems ICOA Sub 15a is an amplified sound system.
15" subwoofer impresses at the low end of the audio spectrum up to 36 Hz
Max SPL of 131 dB and PEAK power of 1600 W thanks to a class D digital amplifier
Optimized Bass Reflex openings
4-preset DynX DSP (3 crossover frequencies, cardioid mode)
Changeable signal polarity and adjustable Line Delay up to 10 m
2 combined inputs (jack/XLR), 2 XLR outputs
Robust 18mm plywood casing with durable front grille
Easy handling thanks to 4 aluminum handles with ergonomic rubberized surface
Ideal stacking capacity thanks to 4 stacking notches
M20 thread for mounting a spreader bar.
15" subwoofer impresses at the low end of the audio spectrum up to 36 Hz
Max SPL of 131 dB and PEAK power of 1600 W thanks to a class D digital amplifier
Optimized Bass Reflex openings
4-preset DynX DSP (3 crossover frequencies, cardioid mode)
Changeable signal polarity and adjustable Line Delay up to 10 m
2 combined inputs (jack/XLR), 2 XLR outputs
Robust 18mm plywood casing with durable front grille
Easy handling thanks to 4 aluminum handles with ergonomic rubberized surface
Ideal stacking capacity thanks to 4 stacking notches
M20 thread for mounting a spreader bar.
Lire la suite
Ficha técnica
- Potencia de altavoz de sonorización De 1501 a 2000 watts RMS
- Tipo de altavoces Monitor y altavoz de escenario
- Type of product
- PA subwoofer
- Kind
- Active
- Diameter woofer/midrange
- 15"
- Boomer Diameter
- 381mm
- Boomer magnet
- Ferrite
- boomer brand
- Custom made
- woofer coil
- 3"
- Woofer coil (mm)
- 76.5mm
- Amplifier
- Class D
- Power (effective)
- 400W
- Power (peak)
- 1600W
- Response frequency (-10dB)
- 36Hz Dependent on preset
- Maximum SPL level (peak)
- 131dB
- Protective circuits
- limiter activation, Excursion Limiter, RMS Limiter, Overload, Overheat, Overvoltage
- Settings
- encoder/button
- Indicators
- LCD screen
- Line inputs
- 2
- Line Input Connectors
- XLR/6.3mm jack combo jacks (balanced)
- Line outputs
- 2
- Line output connectors
- XLR
- Mains voltage
- 100 - 240 V
- Power consumption (max)
- 675W
- Operating temperature
- 0 - 40°C
- Relative humidity rate
- < 60%, non-condensing
- Box material
- 18mm Multiplex
- Surface of the box
- Structured lacquer paint
- Box finish
- Bass Reflex
- Width
- 510mm
- Height (mm)
- 598mm
- Depth
- 552mm
- Weight
- 32.5kg
