Compresor / limiter / gate

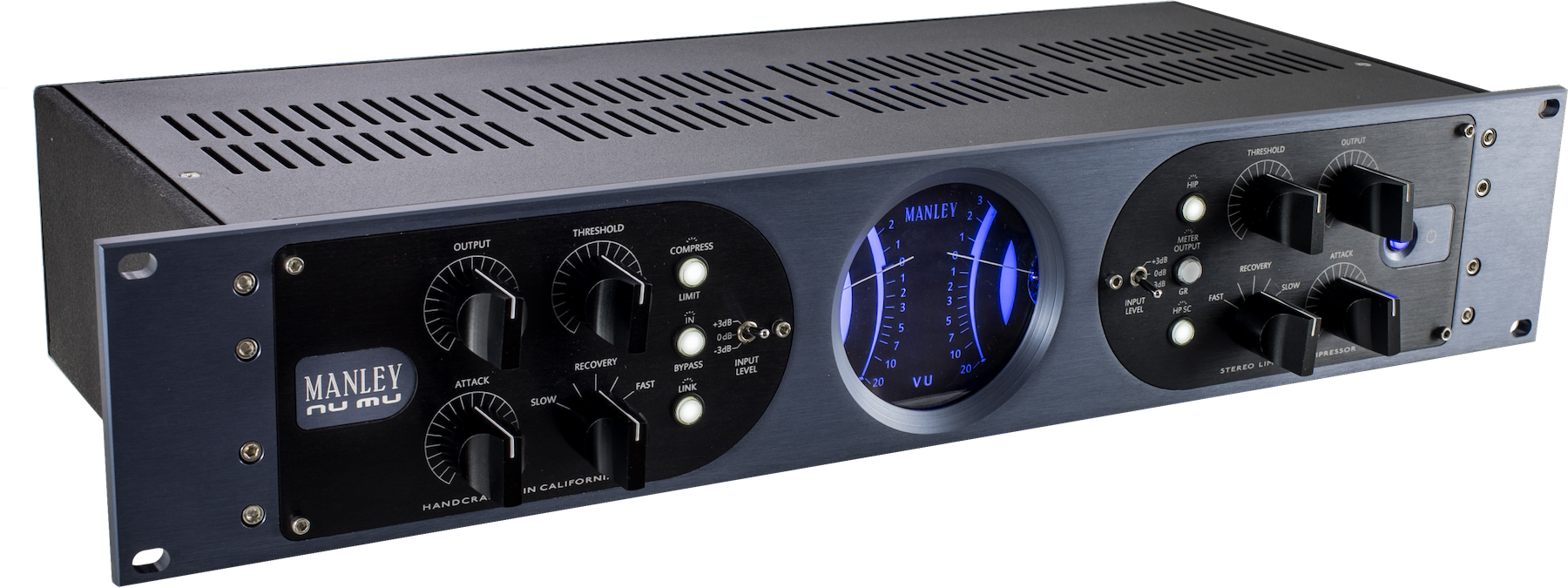

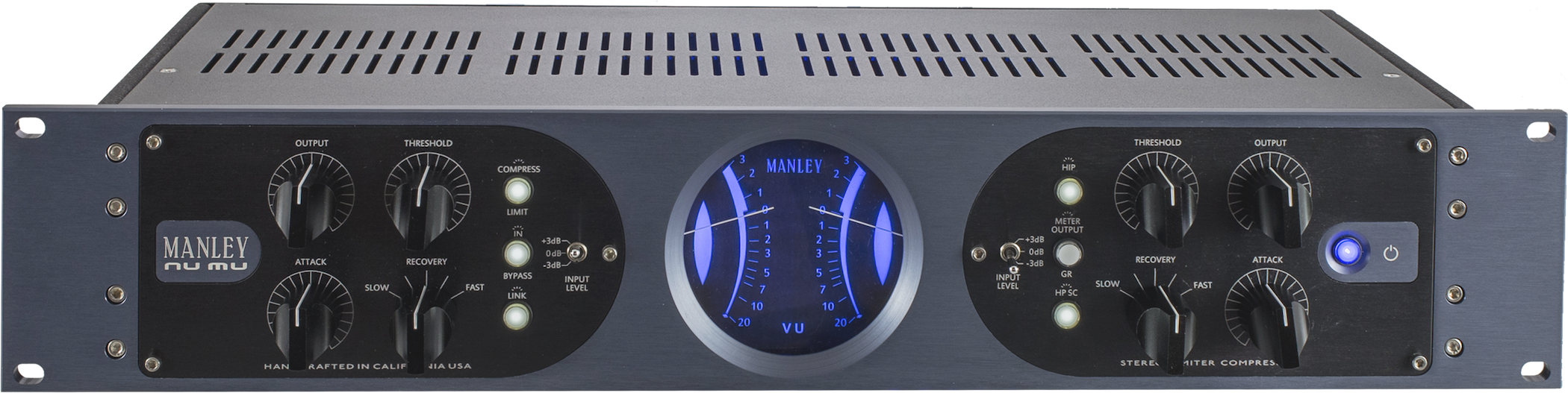

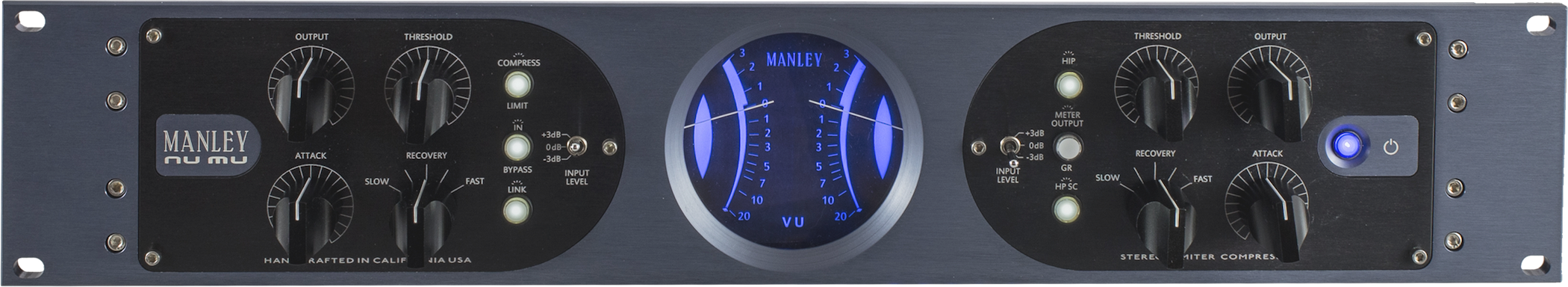

Compresor / limiter / gate MANLEY Nu mu.

Ficha técnica

Manley IRON® input transformers
4 x hand-matched 6BA6 vacuum tubes

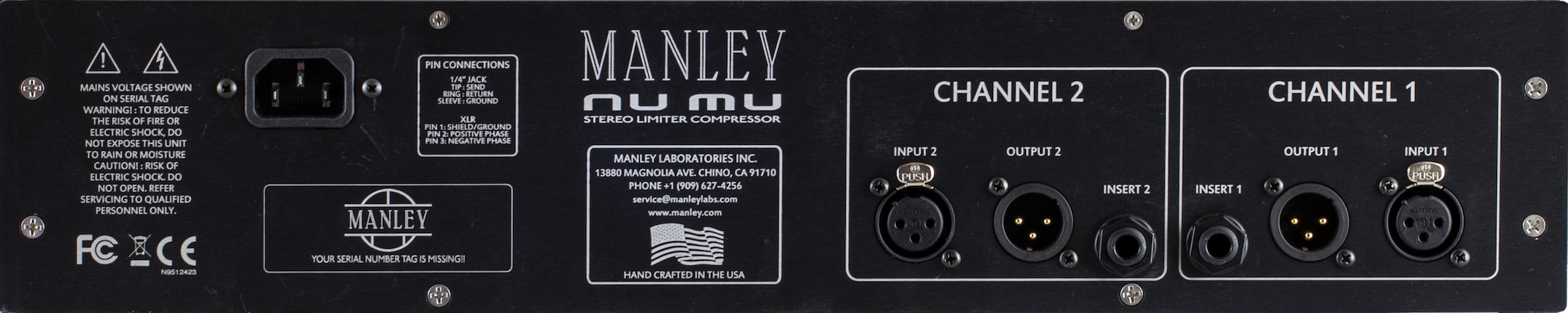

Balanced XLR inputs & outputs
Manley HIP function raises soft dynamics without squashing louder passages
High Voltage Switched Mode Power Supply custom designed for our vacuum tube audio circuits

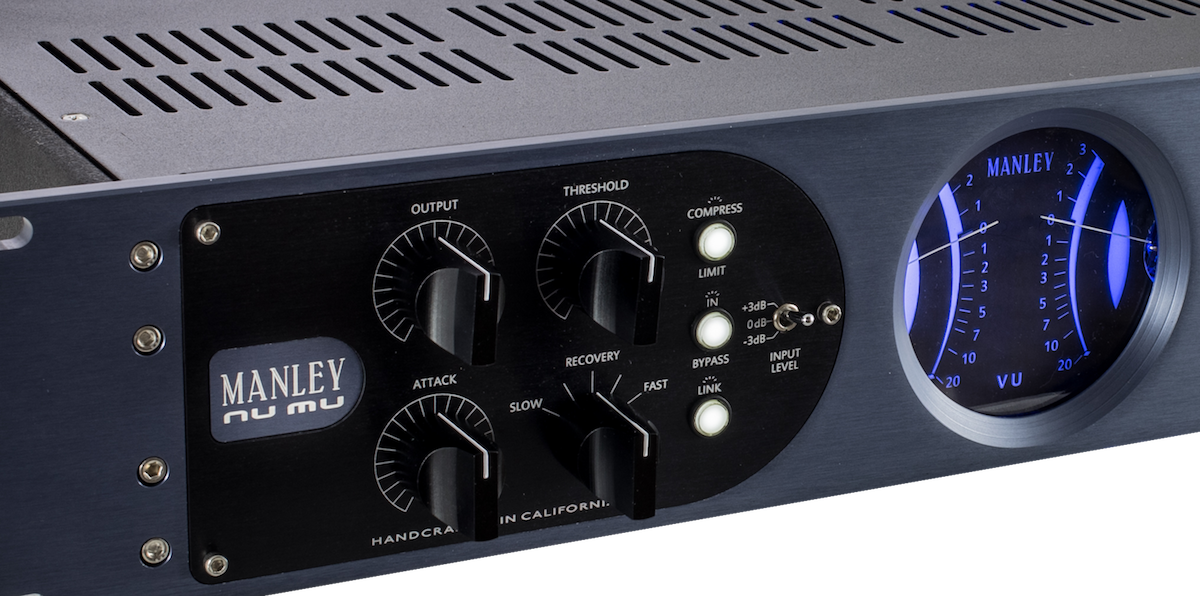

Controls and Switches:
INPUT Level Preset 3-way switches -3dB, 0, +3dB
Continuously variable OUTPUT level controls
Unity Gain set INPUT to "0" and OUTPUT control to 11 o’clock. (Input source Z= 150 Ohms, Output load Z= 100 kOhms)
Maximum input level: (1 kHz Sine, <0.3% THD+N)
-3 = +25 dBu
0 = +21 dBu
+3 = +18 dBu
Maximum GAIN: 13dB
GAIN makeup: 10dB (gain above unity)
Output Headroom: 23dB (referenced to +4dBu)
Variable ATTACK control: 13msec - 130msec
RECOVERY switch 5 steps: 0.1s, 0.16s, 0.32s, 0.64s, 1.7sec.
Continuously variable THRESHOLD controls
Hardwired Relay Bypass Switch
Ratio Mode switches between LIMIT (1.5:1 to 12:1) or COMPRESS (1.2:1 to 3:1)
HP SC: High Pass Side Chain Filter -3dB @ 100Hz @ 6dB per Octave
Stereo Link establishes Left-Master dynamic control for THRESHOLD, ATTACK, and RECOVERY controls
Beautiful illuminated stereo VU meters read Gain Reduction or Output Level
Sidechain INSERT per channel via 1/4" TRS jack TIP=SEND, RING=Return, SLEEVE=Ground
Maximum Output: +27dBu (18Vrms) into 100K Ohm load; +24.5dBu (13Vrms) into 600 Ohm load. (1Khz Sine, < 0.3% THD+N, BW 20Hz - 20kHz).
Frequency Response: - 0.8dB @ 20Hz, -0.5dB @ 50kHz
Total Harmonic Distortion: <0.05% THD+N (1kHz Sine, +4dBu, BW: 20Hz - 22kHz)
Noise floor: -85dB typical (BW: 20Hz - 22kHz)
Dynamic Range: 112dB
Signal to Noise Ratio: 89dB (referenced to +4dBu)
Common-Mode Rejection Ratio (CMRR): 74dB (BW: 20Hz - 22kHz, +4dBu, 1kHz Sine)
Output Impedance: 100 Ohms
Input Impedance: -3dB= 1 kOhms, 0dB= 2.5 kOhms, +3dB= 4.5 kOhms
AUTOMUTE warmup delay: 30 Seconds
Power consumption: 35 Watts
Standby Power Consumption: ?? Watts
Operating mains voltage: 90 to 254 VAC (internal universal supply)
Mains Voltage Frequency: 50-60Hz
Dimensions: 19" x 3 1/2" x 7" (occupies 2u)
Unit Weight: 8.5 lbs.
Shipping weight: 11.5 lbs.
