Caja di
-the Palmer Pro PAN 03 PASS is a
19 "4 Channel Direct Box with 19" Rack

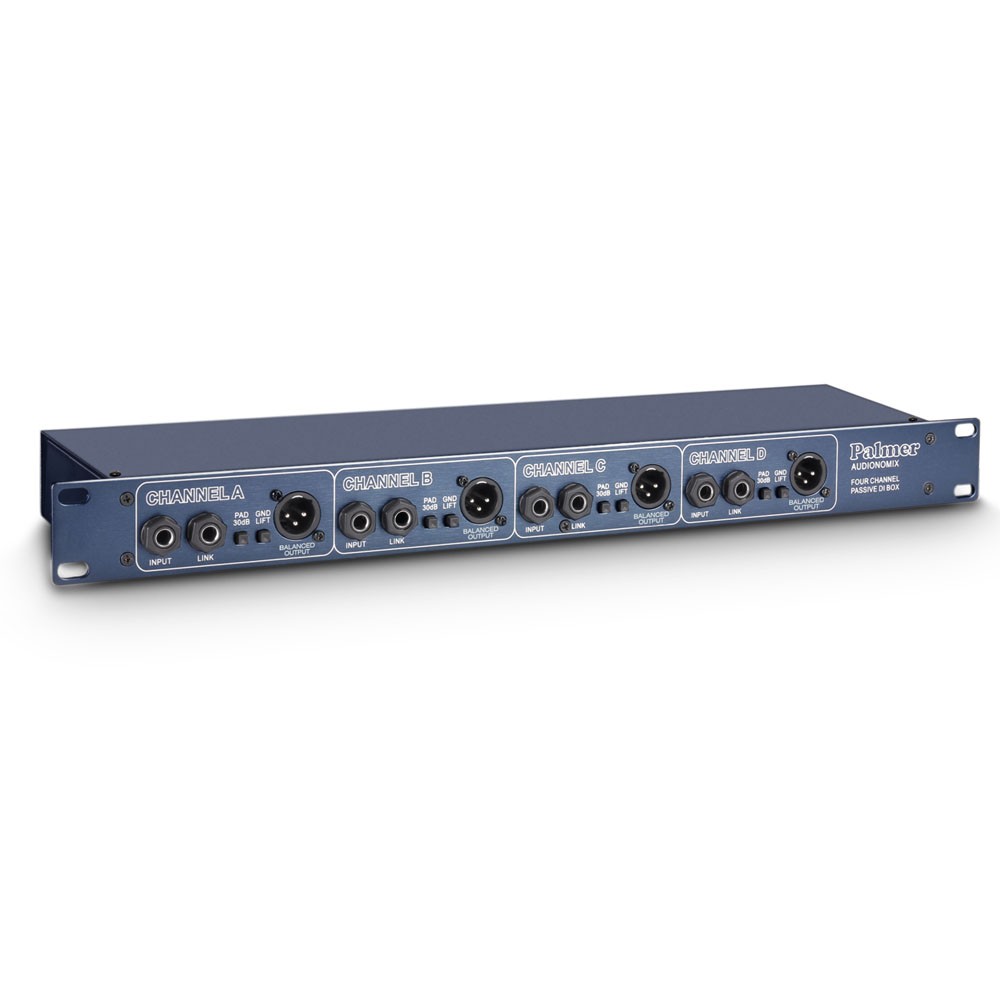

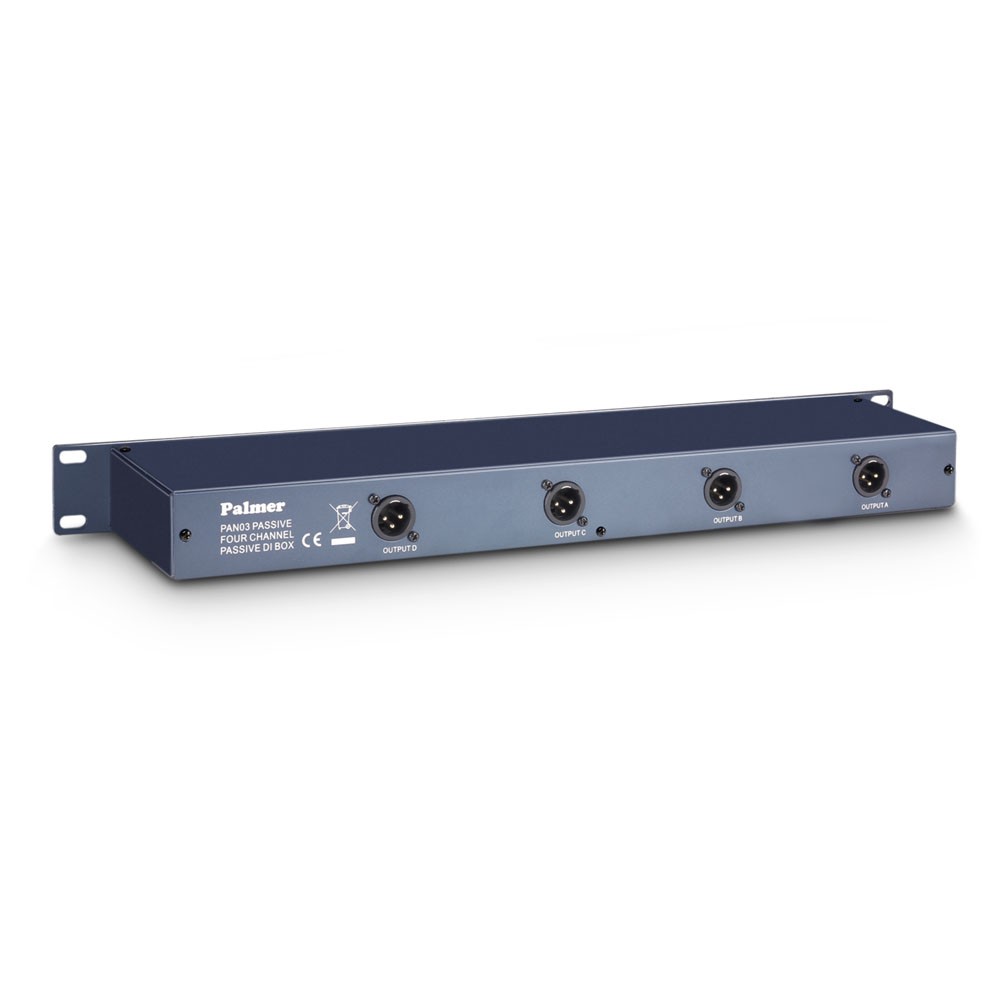

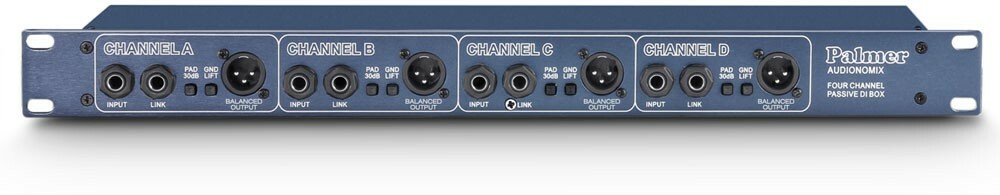

Each channel is equipped with a 6.35 mm jack input, with signal in parallel to another 6.35 mm jack on the front panel. A switchable attenuator (-30 dB) allows you to process either line-level or loudspeaker signals. All jack connectors and selectors are on the front panel (1 U high); Balanced XLR outputs are available on the rear panel.
19 "4 Channel Direct Box with 19" Rack
Each channel is equipped with a 6.35 mm jack input, with signal in parallel to another 6.35 mm jack on the front panel. A switchable attenuator (-30 dB) allows you to process either line-level or loudspeaker signals. All jack connectors and selectors are on the front panel (1 U high); Balanced XLR outputs are available on the rear panel.
Lire la suite
Ficha técnica
- -Type of product Direct boxes
- -Type Passive
- -Number of Inputs 4
- -Entries 4
- -Connectors input Jack 6.35 mm
- -Minimal input level + 54 dBu
- -Input impedance (@ 60 Hz) 1 M Ohm (s)
- -Atenuation input 0 / -30 dB
- -Number of Outputs 4 (+ 4 parallel outputs)
- -Number of THRU outputs per channel 1
- -Connectors output Jack 6.35 mm, XLR
- -Minimal Output Level +4 dBu
- -Output impedance 600 Ohm (s)
- Frequency response 10 - 40000 Hz
- -Symmetry by transformer Yes
- -Transformation Report (Ratio) 10: 1
- -Setting attenuation, mass lifting (ground lift)
- -Material box steel sheet
- -Surface of the powder coating cabinet
- -Width 480 mm
- -Width 19 "
- -Depth 90 mm
- -Height (mm) 45 mm
- -Height 1 U
- -Weight 1,43 kg
