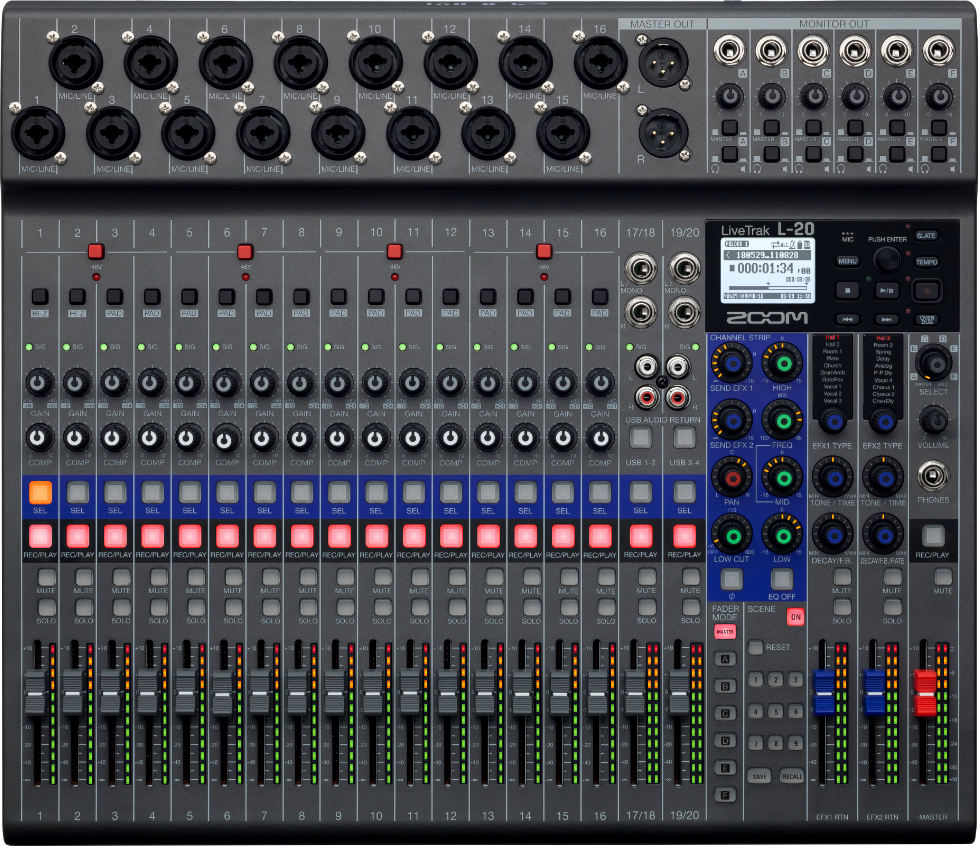

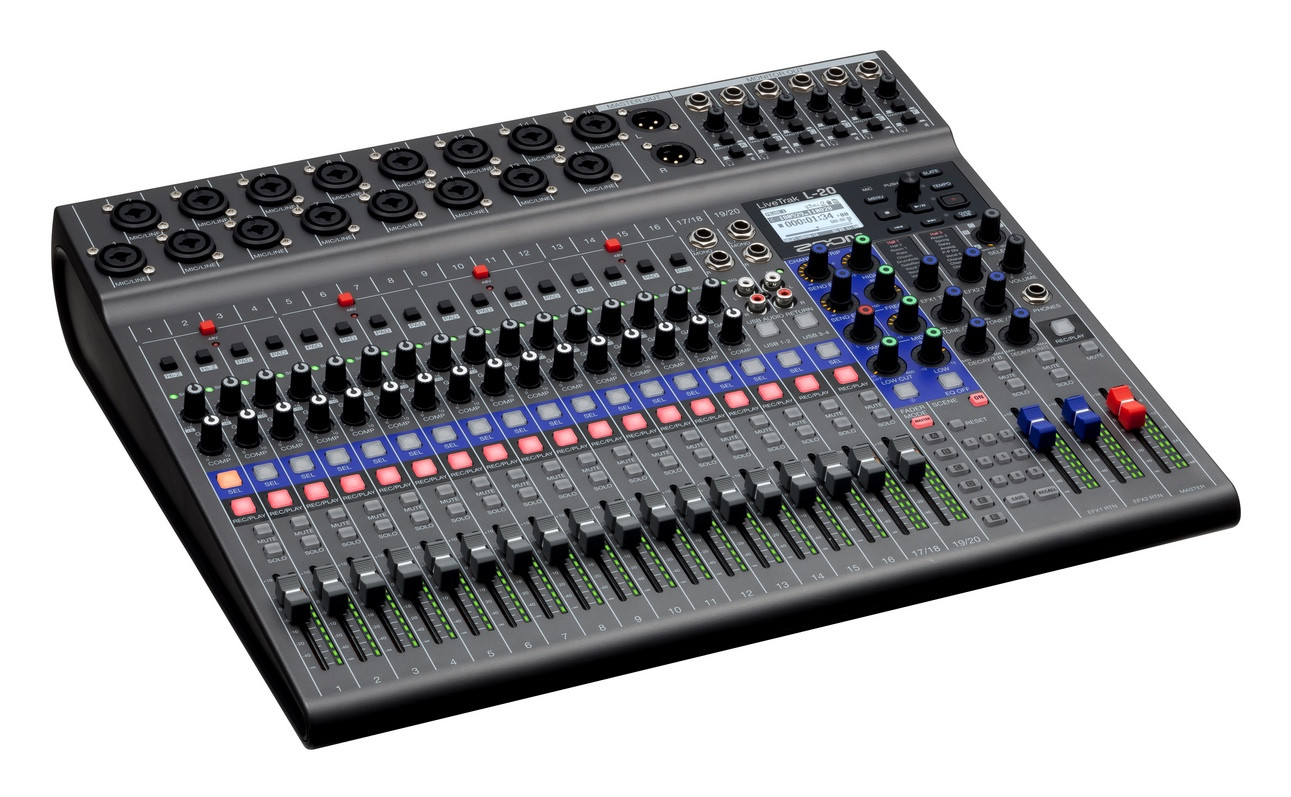

Zoom Livetrack L-20

  • Leer reseñas (0)
  • Accesorios relacionados
  • Productos similares
  • Zoom Livetrack L-20 - Grabadora de varias pistas - Main picture
  • Zoom Livetrack L-20 - Grabadora de varias pistas - Variation 1
  • Zoom Livetrack L-20 - Grabadora de varias pistas - Variation 2
  • Zoom Livetrack L-20 - Grabadora de varias pistas - Variation 3
VIDEO
VIDEO
1306.80 €
862,00 €
  • Envío gratis
  • Precios bajos garantizados
  • Satisfecho o rembolsado
  • Garantía 3 años
  • Ref : 83688
Stock Internet
entregable en 24 horas
Stock en tienda
Ver disponibilidad. Tienda
Star's Music Bordeaux
Star's Music Lille
Star's Music Lyon
Star's Music Paris
Star's Music Toulouse

La marca Zoom

Conoce más sobre la marca Zoom y descubre todo el catálogo.

La mayor red de tiendas de Francia

Encuentra toda la información sobre nuestras grandes superficies y nuestras boutiques especializadas.

Póngase en contacto con un experto

Nuestros teleconsultores músicos y entusiastas están aquí para responder todas sus preguntas.

Grabadora de varias pistas

The Livetrack l-20 is a 20-channel digital audio console.

It has 20 entries.
Each incorporates a 3-band equalizer with parametric midrange.
You can record 20 separate channels plus a stereo mix directly to an SD card.

The LiveTrak L-20 captures flawless sound at resolutions up to 24-bit / 96 kHz *.
With 128 dBu input input noise (EIN) and +60 dB gain, the LiveTrak boasts the quietest and most advanced preamps we've ever produced.
Make the final mix of your songs on the L-20 or transfer your independent tracks to a digital audio station for tweaking.

Each of the six independent monitor-monitoring outputs allows musicians to have their own custom mix, with effects, and can easily switch from a powerful headphone output to a balanced line-out for stage returns.
Lire la suite

Ficha técnica

  • inputs:
  • Mono (MIC / LINE): 16
  • Stereo (LINE): 2
  • Exits:
  • MASTER OUT: 1
  • MONITOR OUT: 6
  • HEADSET: 1
  • ENTRIES
  • Mono (MIC / LINE):
  • Type: Mixed XLR / TRS jacks (XLR: hot spot on pin 2, TRS: hot spot on the tip)
  • Input gain
  • Attenuator (PAD) disabled: +16 - +60 dB
  • Attenuator (PAD) enabled:? 10 - +34 dB
  • Hi-Z (high impedance) enabled: +6 - +50 dB
  • Input impedance
  • XLR: 3 kΩ?
  • TRS: 10 kΩ / 1 MΩ (with Hi-Z enabled)
  • Maximum entry level
  • Attenuator (PAD) disabled: 0 dBu (at 0 dB FS)
  • Attenuator (PAD) enabled: +26 dBu (at 0 dB FS)
  • +48 V phantom power
  • EXITS
  • MASTER OUT:
  • Type: XLR (symmetrical)
  • Maximum output level: +14.5 dBu
  • Output impedance: 100 Ω
  • MONITOR OUT A-F (with balanced output) connected to return monitors:
  • Type: TRS (balanced) sockets
  • Maximum output level: +14.5 dBu
  • Output impedance: 100 Ω
  • MONITOR OUT A-F (with unbalanced output) connected to a headset:
  • Type: Standard Stereo 6.35mm Sockets
  • Maximum output level: 42 mW + 42 mW in 60 Ω
  • Output impedance: 100 Ω
  • PHONES (headphones):
  • Type: Standard 6.35 mm stereo jack
  • Maximum output level: 42 mW + 42 mW in 60 Ω
  • Output impedance: 100 Ω
  • BUS
  • MASTER 1
  • MONITOR: 6
  • SEND EFX: 2
  • CHANNEL STRIP
  • COMP: LOW CUT: 40 - 600 Hz, 12 dB / OCT
  • equalizer:
  • HIGH: 10 kHz, ± 15 dB, in set
  • MID: 100 Hz - 8 kHz, ± 15 dB, bell
  • LOW: 100 Hz, ± 15 dB, in tray
  • PHASE:
  • LEVEL METERS
  • Level indicators: 12
  • SEND EFFECTS
  • RECORDER
  • Maximum number of simultaneously recordable tracks:
  • 22 to 44.1 / 48/96 kHz
  • Maximum number of simultaneously readable tracks:
  • 20
  • Recording format:
  • WAV 44.1 / 48/96 kHz, 16/24 bit, mono / stereo
  • Recording media:
  • 16 MB SD cards - 2 GB
  • 4 GB SDHC cards - 32 GB
  • 64GB SDXC cards - 512 GB
  • AUDIO INTERFACE
  • 44.1 / 48 kHz:
  • Recording: 22 channels
  • Reading: 4 channels
  • Bit resolution:
  • 24 bits
  • Interface:
  • USB 2.0
  • CARD READER
  • Class:
  • Mass storage: USB 2.0 high speed
  • USB HOST SOCKET
  • Class:
  • USB 2.0 high speed
  • Sampling frequency:
  • 44.1 / 48/96 kHz
  • Frequency characteristics:
  • 44.1 kHz:? 1.0 dB, 20 Hz - 20 kHz
  • 96 kHz: 3.0 dB, 20 Hz - 40 kHz
  • Noise reported at the entrance (EIN):
  • Actual measurements:? 128 dB EIN (IHF-A) with input at +60 dB / 150 Ω
  • Screen:
  • Backlit LCD (128x64 resolution)
  • Food:
  • AC adapter AD-19 (DC 12 V, 2 A)
  • Power consumption:
  • 24 W maximum
  • External dimensions:
  • 445 mm (W) × 388.4 mm (W) × 82.6 mm (H)
  • Weight (CPU only):
  • 3.71 kg
