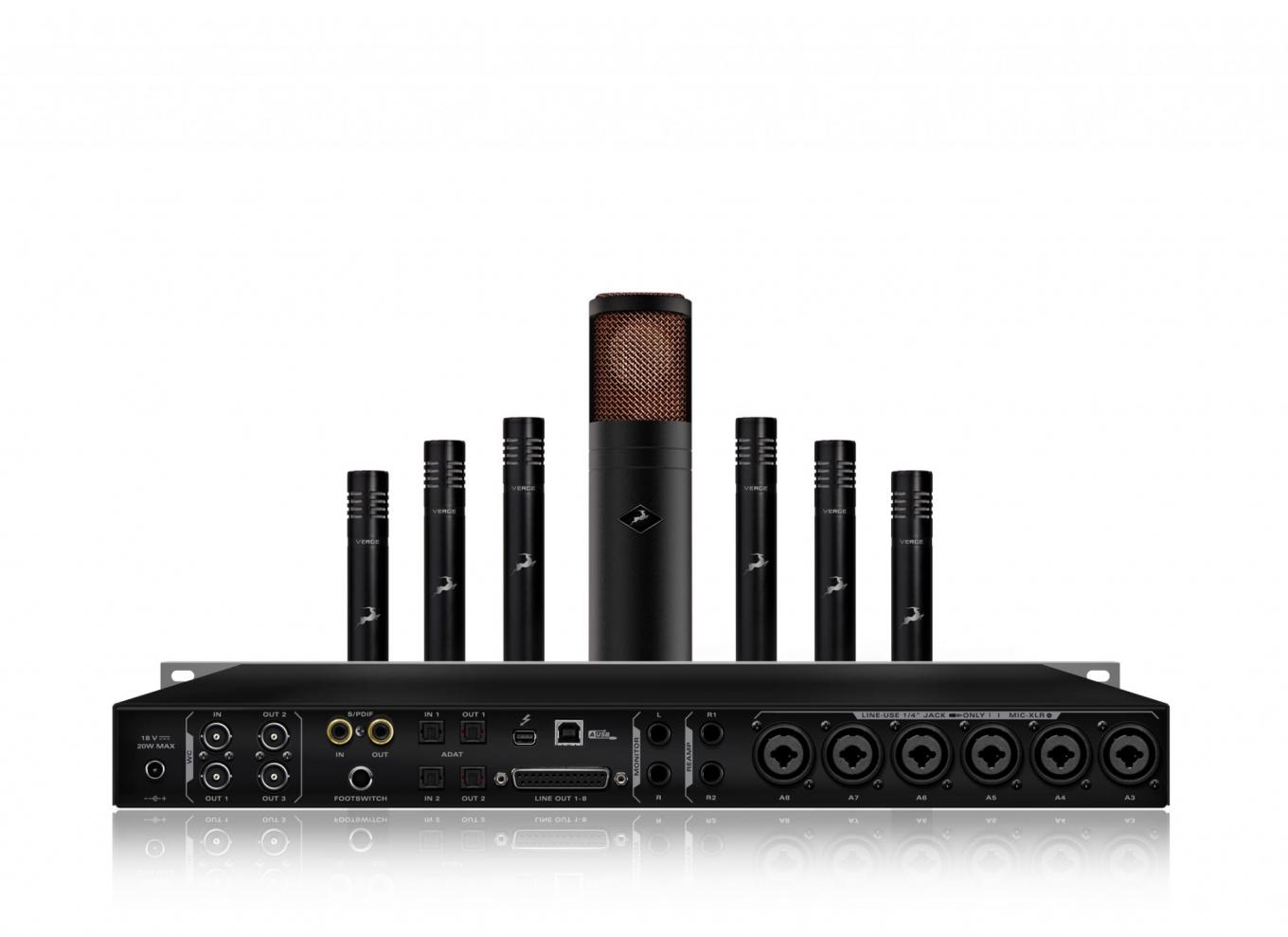

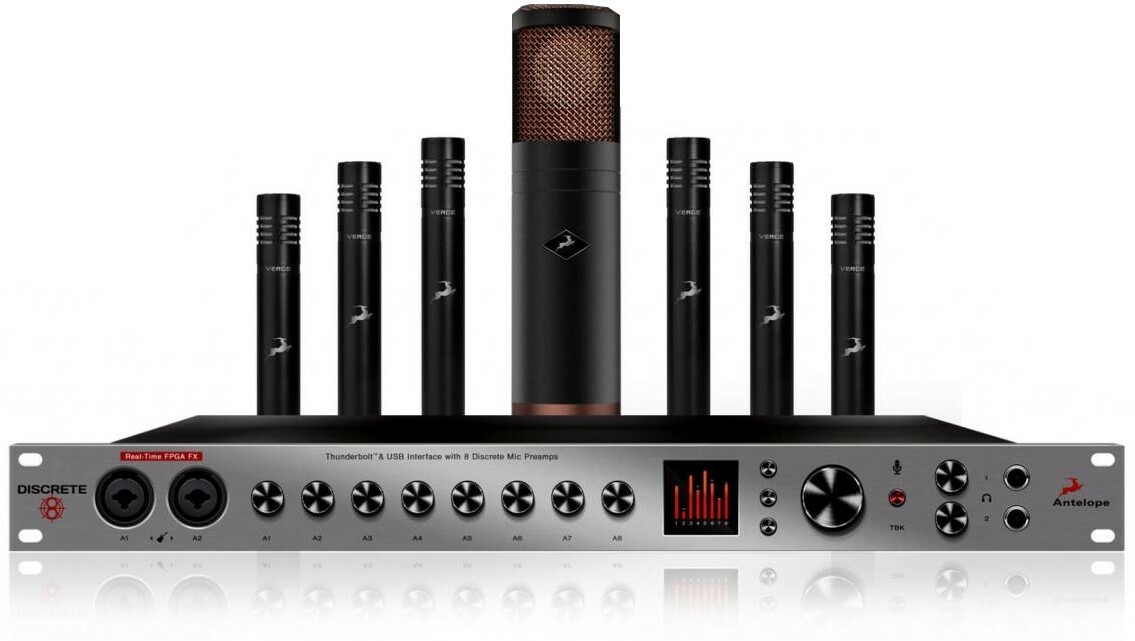

Antelope audio Discrete 8 Edge & Verge Bundle
- Leer reseñas (1)
- Accesorios relacionados
VIDEO
VIDEO
Este artículo ya no está disponible para la venta.
Agotado
preguntarnos
Stock en tienda
No disponible en tienda
La marca Antelope audio
Conoce más sobre la marca Antelope audio y descubre todo el catálogo.
La mayor red de tiendas de Francia
Encuentra toda la información sobre nuestras grandes superficies y nuestras boutiques especializadas.
Póngase en contacto con un experto
Nuestros teleconsultores músicos y entusiastas están aquí para responder todas sus preguntas.
Pack home estudio
Pack home estudio ANTELOPE AUDIO Discrete 8 edge & verge bundle.
Lire la suite
Ficha técnica

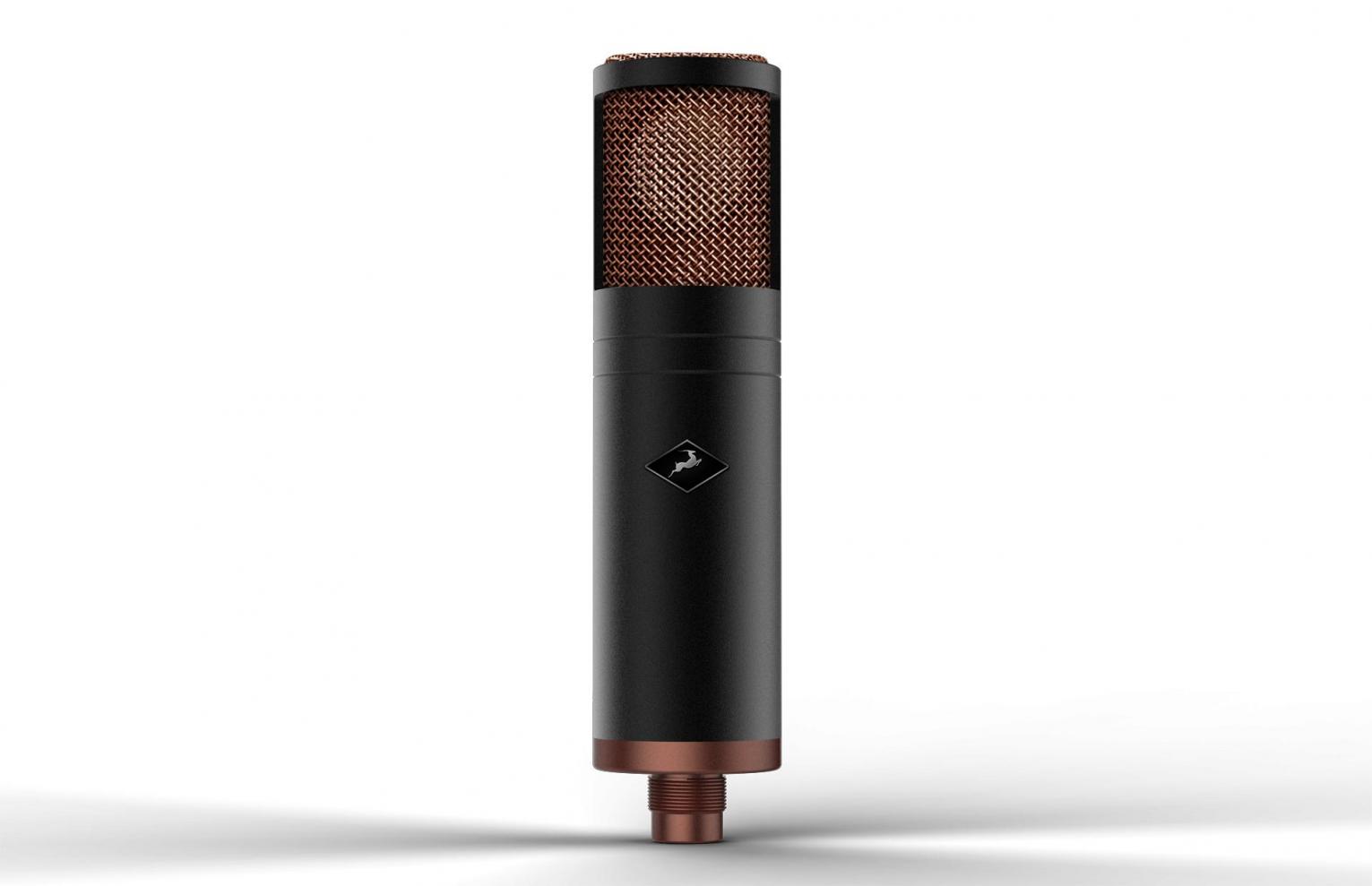

- Edge
- Diaphragm: Condenser
- (Double sided with 10 microns gold sputtered membranes)
- Freq. response: 20HZ ~ 20KHZ
- Sensitivity: -36dB (-1 to +3dB)
- THD+N: -116dB
- Power Requirements: 48V DC Phantom Power

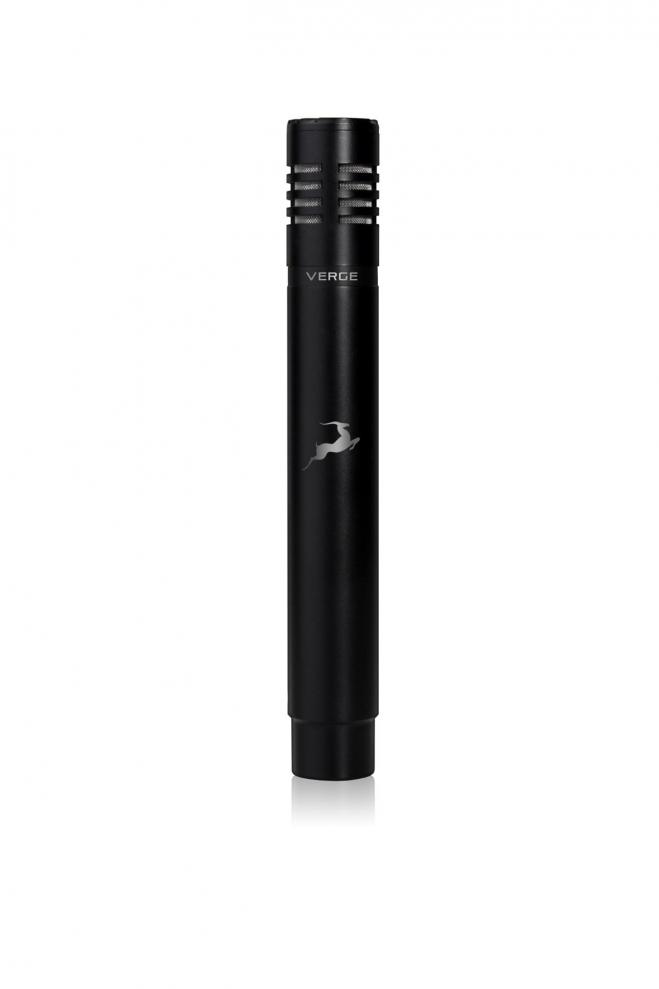

- Verge
- Diaphragm: Condenser
- (back electret type)
- Freq. response: 40Hz ~20kHz
- Sensitivity: -40dB (+/-3dB)
- Max input SPL: 132dB
- Power Requirements: 48V DC Phantom Power
- Discrete 8
- ANALOG
- Analog Inputs
- 6 x Mic / Line Inputs
- 2 x Mic / Line / Hi-Z Inputs
- Analog Outputs
- 1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max
- 1 x ReAmp Out on TRS 1/4 Jacks
- 1 x Line Outs on DB25, +20 dBu max
- 2 x Stereo Headphone Outputs
- Mic Preamp
- EIN: -128 dBu (A-weighted)
- Dynamic Range: -121 dB (A-weighted)
- THD: -106 dB
- Max input: +18 dBu
- Gain Range: 65 dB
- D/A Monitor Converter
- Dynamic Range: 124 dB
- THD + N: -101 dB
- A/D Converter
- Dynamic Range: 121 dB
- THD + N: -112 dB
- D/A Converters(Line Out)
- Dynamic Range: 121dB
- THD + N: – 100dB
- DIGITAL
- Digital Inputs
- 2 x ADAT (up to 16CH)
- 1 x S/PDIF
- Digital Outputs
- 2 x ADAT (up to 16CH)
- 1 x S/PDIF
- USB I/O
- USB 2.0 Hi-Speed;
- Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B
- Thunderbolt™ I/O
- 1 x Thunderbolt, 32 channels I/O
- CLOCKING
- Word Clock Input
- 1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz
- Word Clock Outputs
- 3 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz
- Clocking System
- 4th Generation Acoustically Focused Clocking
- 64-bit DDS
- Sample Rates (kHz)
- 32, 44.1, 48, 88.2, 96, 176.4, 192
- Other
- Operating Temperature
- 0-50°C, 32-122°F
- Weight (Approx)
- 3.0 kg/ 6.61 lbs
- Dimensions (Approx)
- Width: 483 mm / 19”
- Height: 44 mm / 1.7”
- Depth: 220 mm /8.6”
- Power Consumption
- 20 Watts
