Ik multimedia iRig Keys i/o 49

Name: iRig Keys i/o 49
Brand: Ik multimedia
SKU: 77634
Availability: SoldOut
Rating: 5 (1 reviews)

Leer reseñas (1)
Accesorios relacionados
Productos similares

Este artículo ya no está disponible para la venta.

Agotado

preguntarnos

Stock en tienda

No disponible en tienda

Variación(es) de este producto.

La marca Ik multimedia

Conoce más sobre la marca Ik multimedia y descubre todo el catálogo.

Descubrir

Guía de compra de controladores MIDI

¡Todo lo que necesita saber sobre controladores MIDI y teclados maestros antes de realizar su primera compra!

Consultar

Póngase en contacto con un experto

Nuestros teleconsultores músicos y entusiastas están aquí para responder todas sus preguntas.

+33 181 930 900 email

Teclado maestro

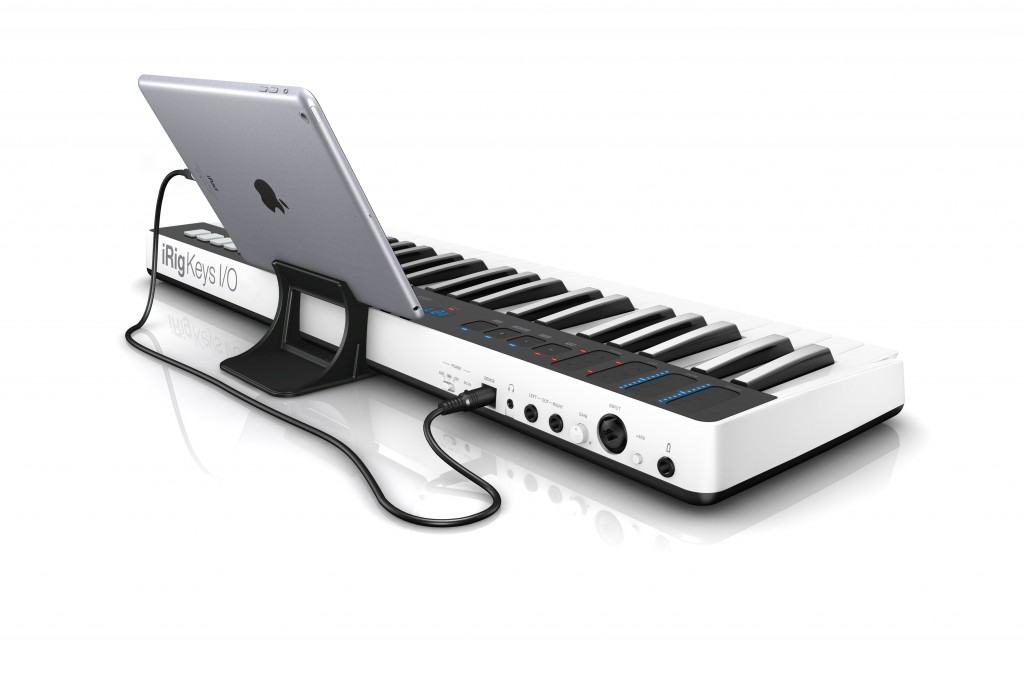

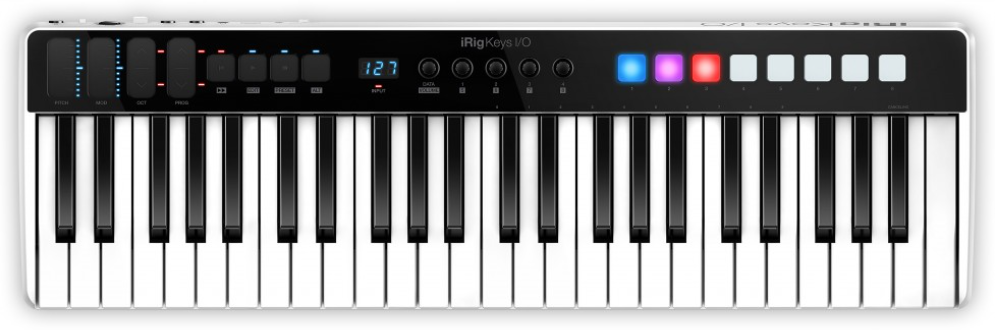

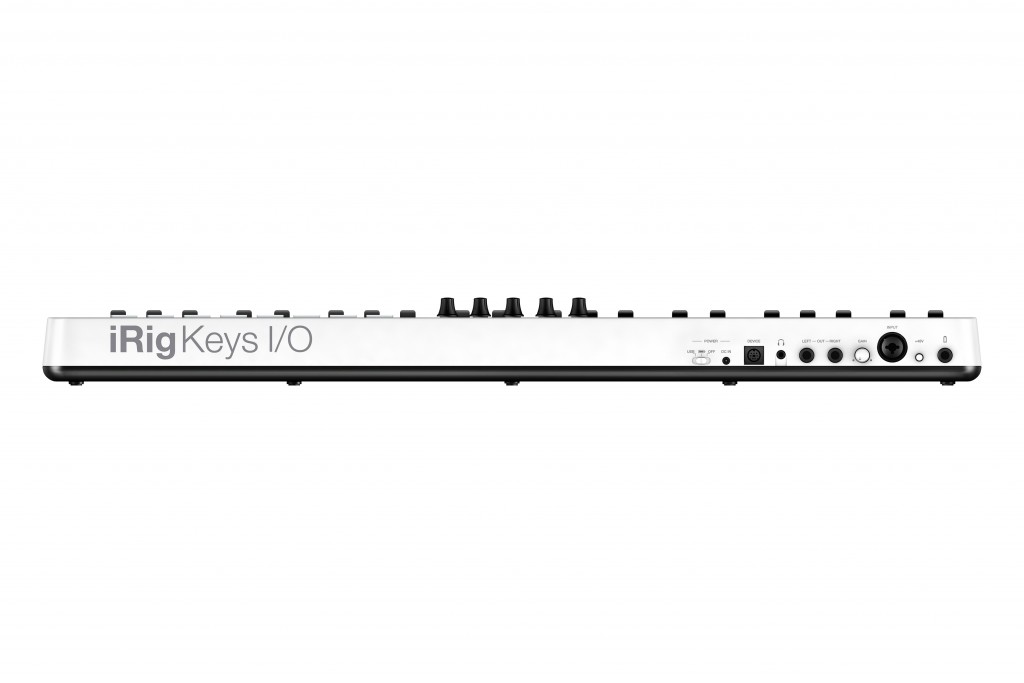

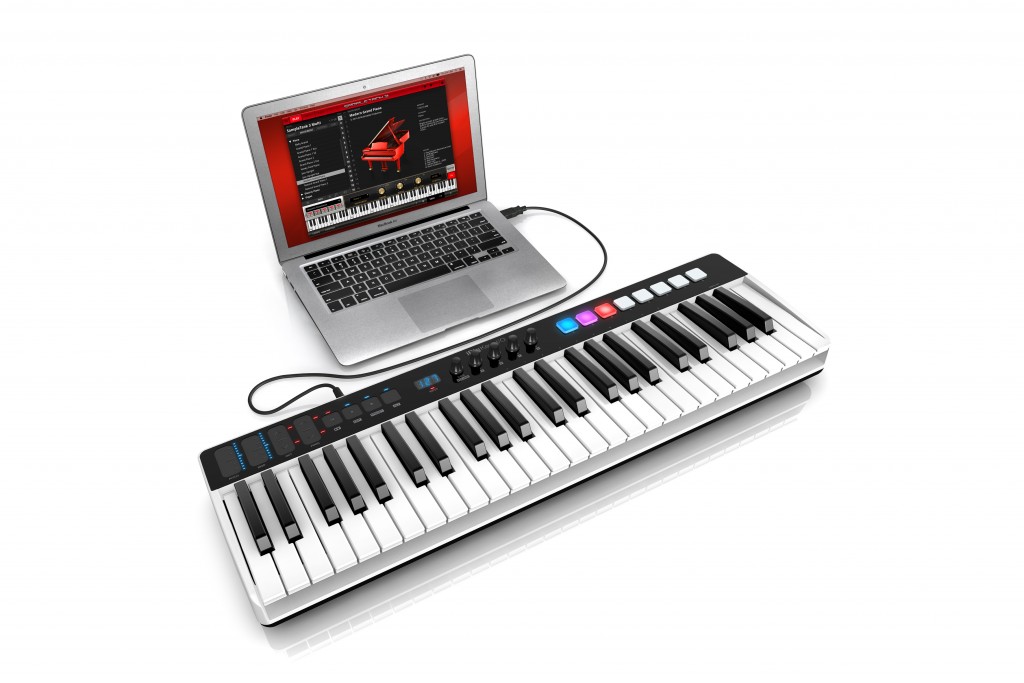

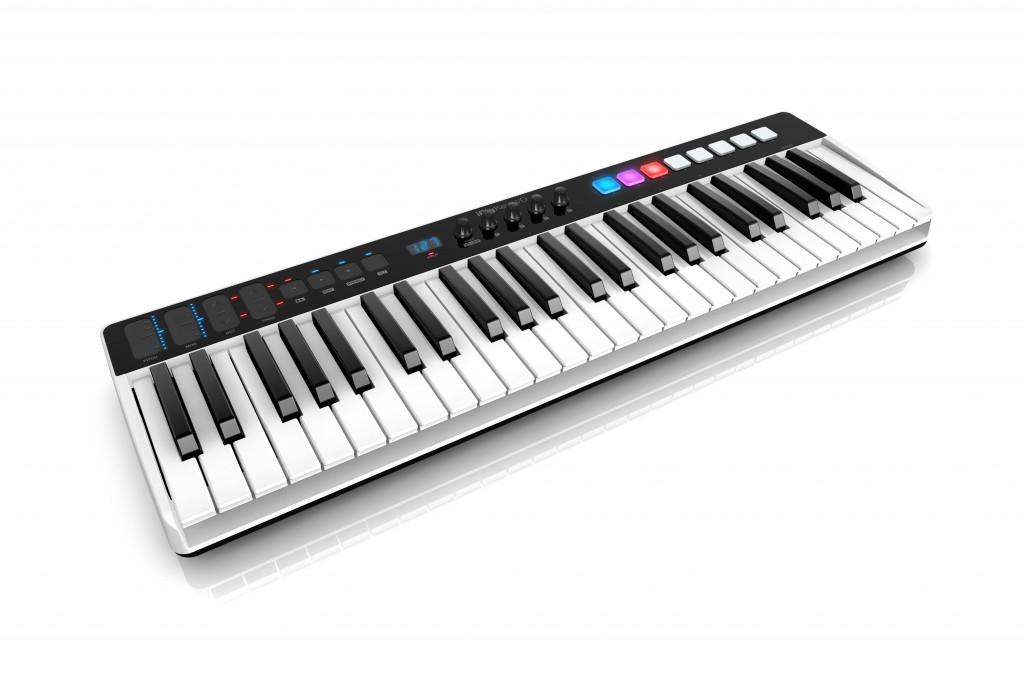

The IK Multimedia iRig Keys i/o 49 is a 49 notes universal MIDI Keyboard, with an integrated audio interface!

The iRig Keys I/O series evolves the concept of traditional controllers as the only one available on the market that integrates 25 or 49 full sized keys together with a fully-fledged professional audio interface featuring 24-bit audio up to 96kHz sampling rate, balanced stereo and headphone outputs, plus a combo input jack for line, instrument or mic input (with Phantom power.)

Ficha técnica

Cantidad de teclas 49 teclas
tacto Tacto semi-pesado

Microphone Input
Microphone Input: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
Microphone Input Level: from 6 mVpp to 1.4 Vpp
Microphone Input Impedance: 3.2 kOhms
Gain Range: 46 dB
Phantom Power: +48V ± 4V
Frequency Response: 20 Hz - 20 kHz +/-1.5dB
Input Noise: -100 dB RMS
Instrument Input
Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground
Instrument Input Level: from 30 mVpp to 6.9 Vpp
Instrument Input Impedance: 1 MOhms
Gain Range: 27 dB
Frequency Response: 20 Hz - 20 kHz +/-1.5dB
Input Noise: -100 dB RMS
Line Output
Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground
Floating Balanced Outputs with automatic level compensation when working in unbalanced mode
Maximum Output Level: +13 dBu into 600 Ohms balanced load
Frequency Response: from 10 Hz to 21 kHz (+/- 0.2dB)
Output Dynamic Range: 102 dB(A)
Output Impedance: 150 Ohms balanced
Stereo Headphone Output
Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground
Headphone Level Power 100mW into 50 Ohms
Other Input/Output
DC barrel: 1x DC barrel. For power and device charging.
Device Connector: mini-DIN
External Pedal Input: 1/4" TRS Jack
Common
Conversion: 16 or 24-bit A/D - D/A
Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
Power:
• USB bus powered when used with a computer
• Battery powered (4xAA included) when used with an iOS device
• DC power supply (not included, iRig PSU 3A sold separately)*
Keyboard
Keys: 25 or 49 (depending on the version) full-size keys with velocity
Pads
8 velocity-sensitive multi color assignable pads
Controls
Slider strips for pitch and modulation (user programmable)
Octave, program change and transport
5 programmable touch sensitive encoders
iRig Keys I/O Package includes
iRig Keys I/O 49 or 25 keyboard (depending on the version)
Lightning to Mini-DIN connection cable (60cm/23.62")
USB to Mini-DIN connection cable (60cm/23.62")
iPhone/iPad stand
4 x 1.5V AA Battery
iRig Keys I/O 49 Dimensions
Size: 693mm/27.3" x 208mm/8.2" x 65mm/2.6"
Weight: 2.18kg/4.81lb (batteries excluded)
