Ld systems PPA 2

  • Leer reseñas (0)
  • Accesorios relacionados
  • Ld Systems Ppa 2 - Preamplificador - Main picture
  • Ld Systems Ppa 2 - Preamplificador - Variation 1
  • Ld Systems Ppa 2 - Preamplificador - Variation 2
  • Ld Systems Ppa 2 - Preamplificador - Variation 3
24,90 €
  • Precios bajos garantizados
  • Satisfecho o rembolsado
  • Garantía 3 años
  • Ref : 80835
Stock Internet
entregable en 24 horas
Stock en tienda
Ver disponibilidad. Tienda
Star's Music Paris
Star's Music Toulouse

La marca Ld systems

Conoce más sobre la marca Ld systems y descubre todo el catálogo.

La mayor red de tiendas de Francia

Encuentra toda la información sobre nuestras grandes superficies y nuestras boutiques especializadas.

Póngase en contacto con un experto

Nuestros teleconsultores músicos y entusiastas están aquí para responder todas sus preguntas.

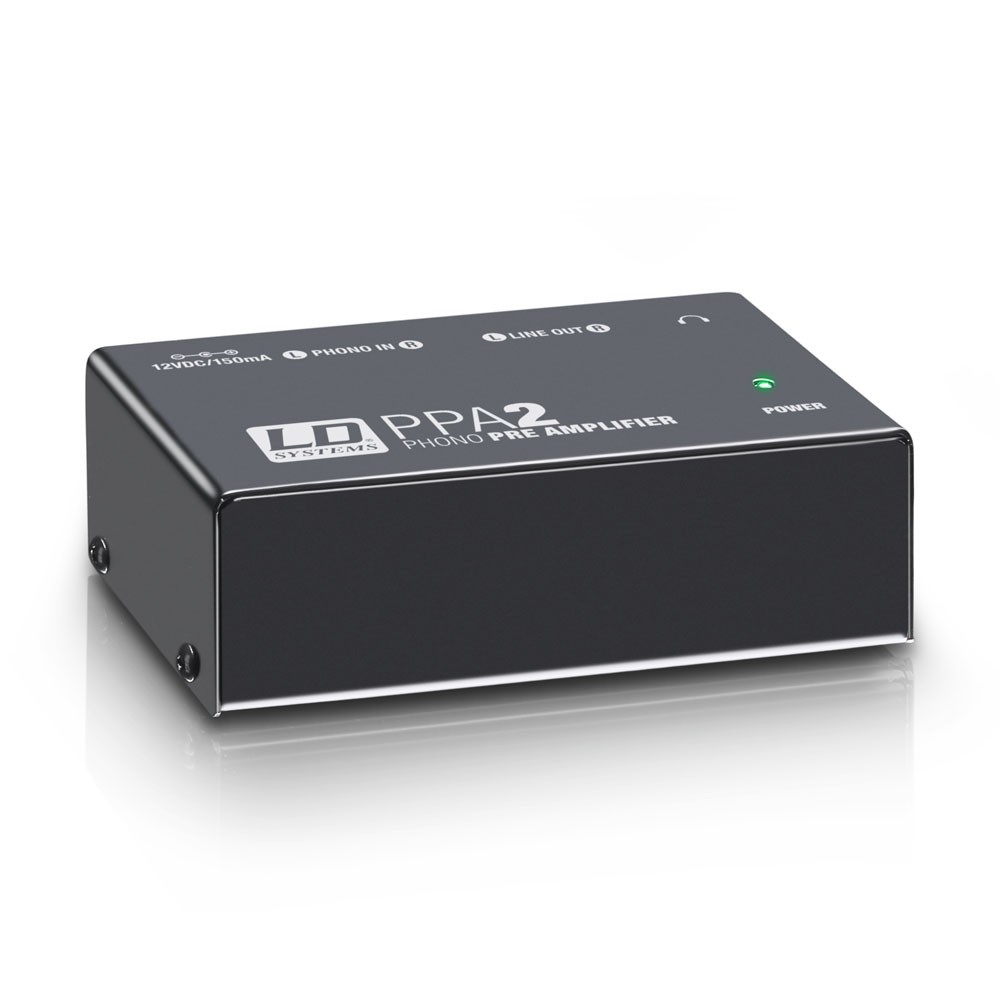

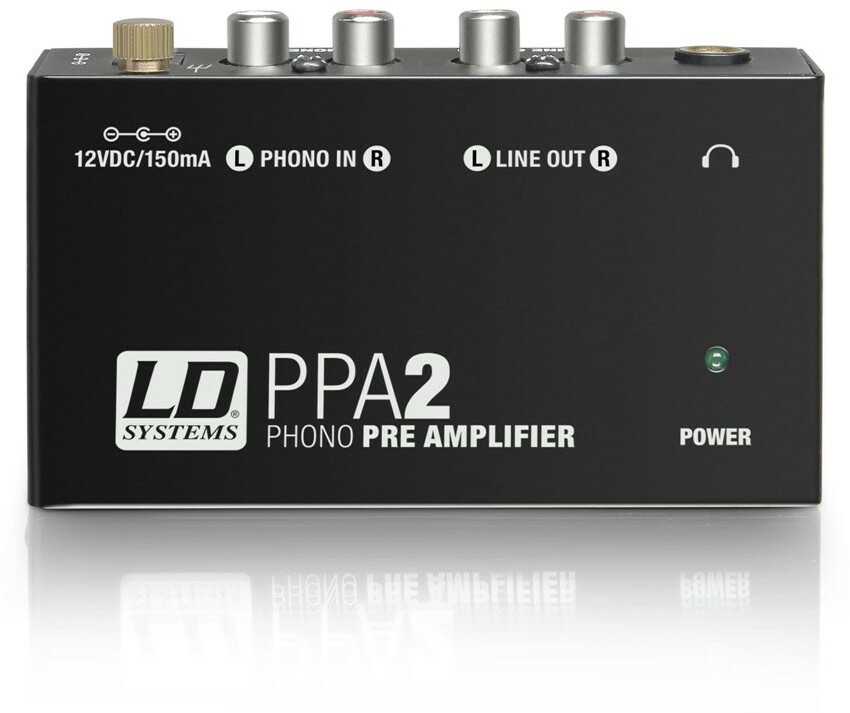

Preamplificador

The LD Systems PPA 2 is an exceptionally compact phono preamplifier that corrects the low output signal from the cartridge of a classic vinyl turntable according to the RIAA curve. It allows you to connect your turntable to devices lacking a phono input, such as a mixer, a sound reinforcement amplifier, a sound card/audio interface...

Features of the LD Systems PPA 2:

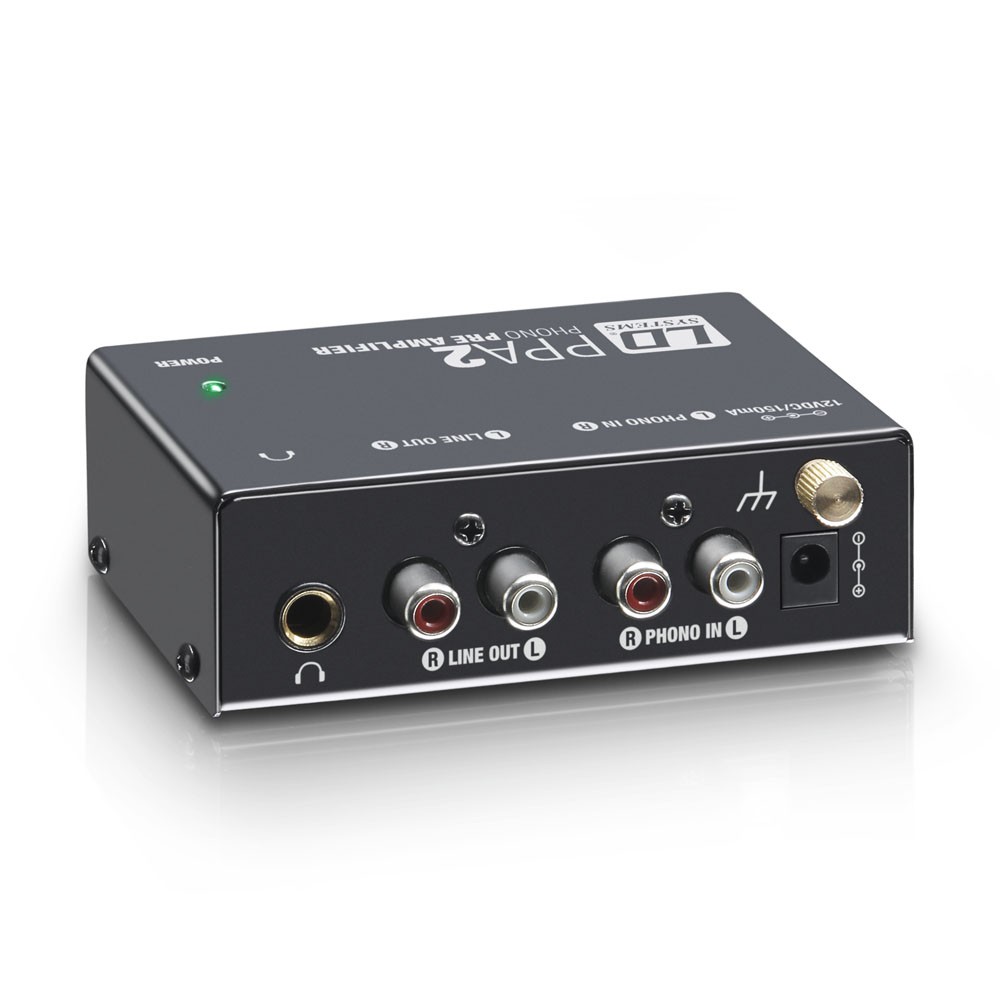

  • Phono inputs are made, like line outputs, on RCA/cinch connectors.
  • The PPA 2 offers a screw terminal for grounding the turntable and a 6.35mm stereo jack socket for connecting headphones.
  • The preamplifier's distortion rate is less than 0.05% and crosstalk is less than -75 dB.

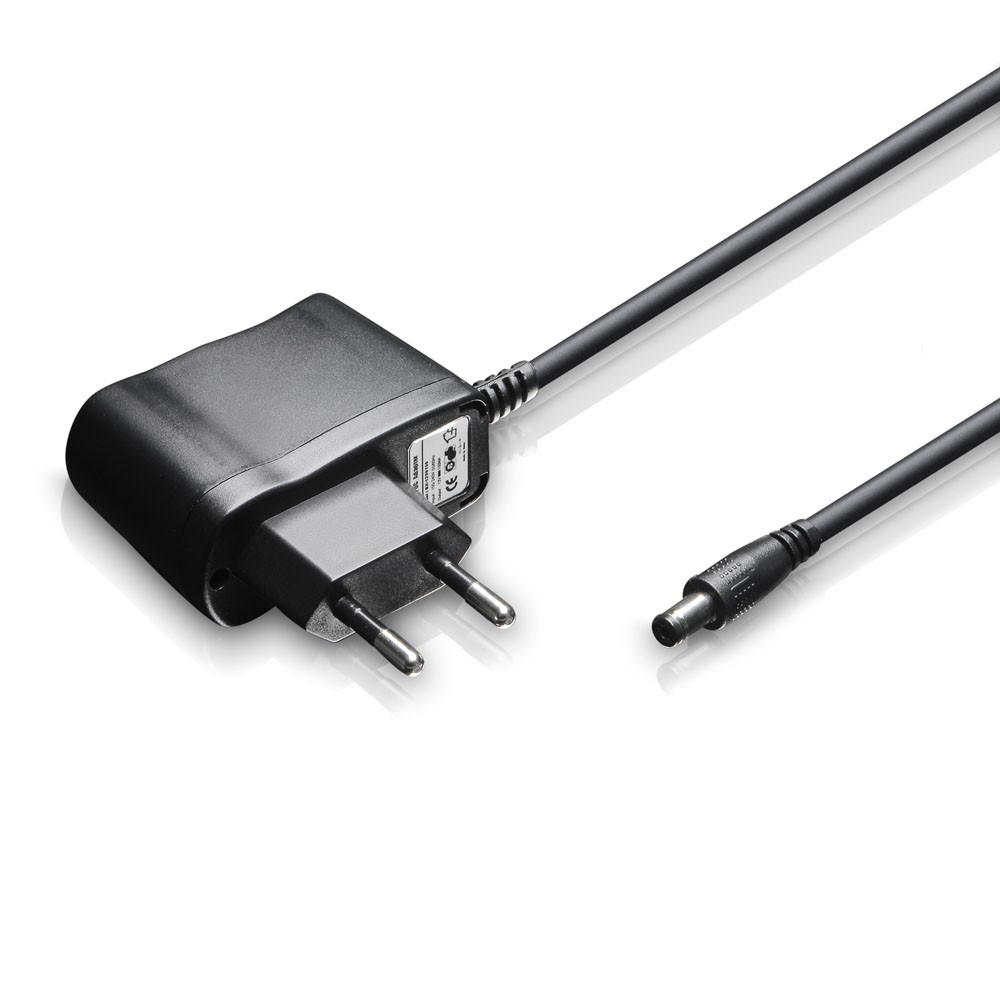

The LD Systems PPA 2 is powered via an external 12-volt power supply unit; its power status is indicated by an LED located on the top of the sturdy metal housing of the device.

Lire la suite

Ficha técnica

  • Tipo de preamplficación Transistor
  • Product Type: Other studio and recording equipment
  • Finish: Stereo input and stereo output
  • Frequency Response: RIAA curve compliant Hz
  • Signal-to-Noise Ratio: 70 dB
  • Total Harmonic Distortion (THD): <0.05%
  • Crosstalk: -75 dB
  • Maximum Input Level: -23.5 dBV
  • Maximum Output Level: +10 dBV
  • Input Impedance (kohms): 47 kohms
  • Output Impedance: 50 Ohm(s)
  • Indicators: LED Power
  • Inputs: 1 x Phono, stereo
  • Input Connectors: 2 x Cinch (RCA), ground terminal
  • Line Outputs: Headphones, stereo line
  • Line Output Connectors: 2 x Cinch (RCA), 6.35 mm stereo Jack
  • Mains Voltage: External power supply
  • Mains Voltage: 12 V DC
  • Power Consumption: 0.15 A
  • Width: 104 mm
  • Height: 36 mm
  • Depth: 67 mm
  • Weight: 0.28 kg
