Expander

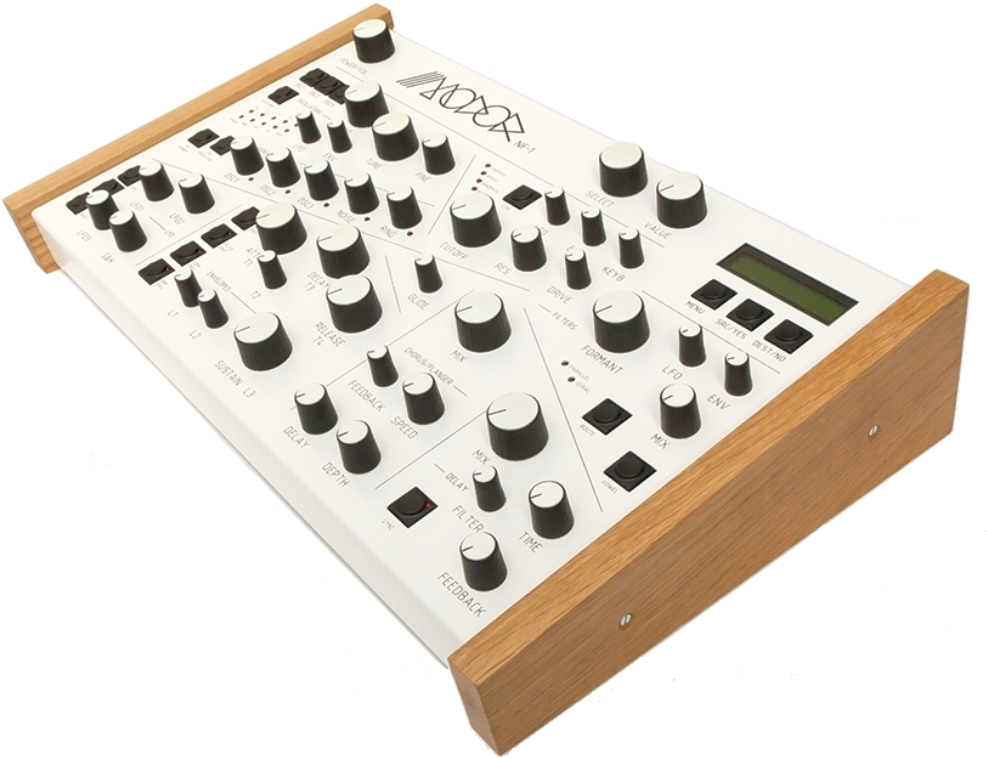

Expander MODOR Nf-1.
Lire la suite
Ficha técnica
- Tipo de expansores Analógico
- POLYPHONY
- 8 voices
- Poly, Mono and Mono-legato modes
- MEMORY
- 448 patches, 14 banks [A-N] of 32 patches
- All factory presets overwritable
- CONNECTIONS
- 9V, 600mA adapter connection, positive voltage on center pin
- MIDI IN/THRU/OUT connections, 3x 5-pin DIN connection
- Audio Left and Right outputs, 6.35mm mono jack
- Sustain switch, 6.35mm mono jack
- Volume/modulation pedal, 6.35mm stereo jack
- FRONT PANEL CONTROLS
- 42 rotary knobs
- 20 pushbuttons
- 1 rotary encoder
- 1 Power switch/volume knob
- DISPLAY
- 16x2 green backlit LCD display
- MIDI
- Full realtime MIDI control of all sound parameters
- Pitch Bend, Modwheel (CTRL#1), Expression pedal (CTRL#7), Velocity and Aftertouch can be used as modulation sources
- MEASUREMENTS
- Width: 440mm without rack ears, 480mm with rack ears (19")
- Height: 267mm (10.5"/ 6U)
- Depth: 40mm (front) - 80mm (back)
- RACKMOUNTABLE
- Height: 6 rackunits
- Recessed backside connections to ease rack mounting (no lost rackspace above)
- Rack mounting ears included
- UPDATE
- Use of less 'wobbly', more stable feeling potentiometers
- Improved DAC gives a 12dB lower noise-floor
- Improved EMC-design (CE and FCC approval should follow soon)
- Line out is now capable of driving a headphone (Left line output doubles as stereo headphone out)
- A Midi USB connector has been added
